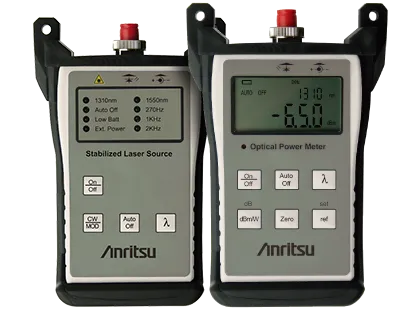

Anritsu 5P100-FC Optical Power Meter
Request a quote
Anritsu 5P100-FC is a portable optical power meter for fiber optic testing with multi-wavelength calibration, large LCD display, and measurement range of +10 to -60 dBm.
Product details
| Model | 5P100-FC |
| Manufacturer | Anritsu |
| Category | Network & Fiber Optic Test |
| Availability | Made to order |
Description
Overview
The Anritsu 5P100-FC is a portable optical power meter for fiber optic cable testing and installation. It features a rugged design built to withstand field environments, with a large LCD display and dual-power system that accepts both 9V batteries and optional AC adapter. The meter provides instant measurements with no warm-up time and includes auto-zeroing and tone detection capabilities for rapid field assessment.
Key Features
- Measurement range: +10 to -60 dBm
- Multi-wavelength calibration: 850, 1300, 1310, 1490, 1550, 1625 nm
- Compatible with single-mode and multimode fibers
- FC connector adapter included
- Large LCD display for easy readability
- No warm-up time with fast response
- Auto-zeroing and tone detection functions
- Dual power system: 9V battery and optional AC adapter
- Lightweight and rugged for field use
Applications
- Datacom fiber optic cable testing (850/1300 nm)
- WDM network testing (1310/1550/1625 nm)
- FTTx deployment and validation (1490 nm)
- Cable installation and maintenance
- Point-to-point attenuation measurements
Included Accessories
- CMA5 Operation Manual
- Rubber Protective Cover
- 9V Alkaline Battery
- FC Connector Adapter
Specifications
| Model | 5L83 5L35 |
| Model | 5P100 5P100C |
| Model/Order Number | Description |
| 5P100-XX* | Optical Power Meter (Standard): –60 to +10 dBm |
| Standard Accessories | CMA5 Operation Manual - Qty 1 Rubber Protective Cover - Qty 1 9 V Alkaline Battery - Qty 1 |
| CMA5-AD-PM-FC | FC Connector Adapter |
