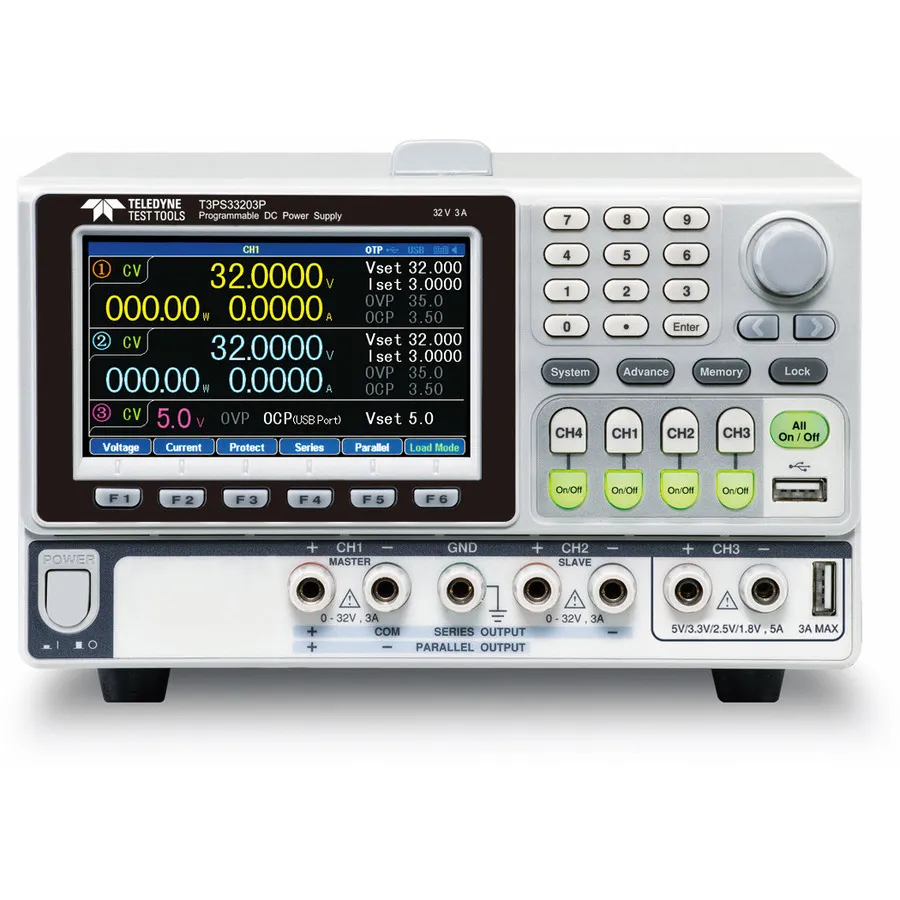

Teledyne LeCroy T3PS33203P Triple Output DC Power Supply
Request a quote
Teledyne LeCroy T3PS33203P is a 217W triple-channel programmable DC power supply with independent tracking, series/parallel switching, and integrated data logging.
Product details
| Model | T3PS33203P |
| Manufacturer | Teledyne LeCroy |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS33203P is a three-channel programmable DC power supply with 217W maximum output power. It delivers independent power to multiple test points with precise control and real-time monitoring, making it ideal for complex electronics testing and verification applications.
Key Features
- Three independent output channels: 0–32V/3A (CH1 & CH2), 1.8/2.5/3.3/5V/5A (CH3)
- 217W total output power with high-resolution programming (1 mV/0.1 mA)
- Low-ripple noise (≤350 μVrms) with transient recovery time ≤50 μS
- Integrated tracking function for automatic series/parallel output switching without external wiring
- Multiple display modes for voltage, current, and waveform monitoring
- Monitor function with configurable alarms and automatic output shutdown
- Output recorder function with internal memory; exports to .REC or .CSV files
- Independent ON/OFF control for each channel
Applications
- Multi-channel electronics testing and component verification
- Manufacturing test systems requiring independent power delivery
- Research and development power supply configurations
- System integration with multiple power rails
Specifications
| Number of Outputs | Triple Output |
| Output Voltage | 2.5V/3.3V/5V, 32V x 2 |
| Output Current | 3.2A x 3 |
| Power Rating | 217 W |
| Input Voltage | 100/120/220/230 VAC |
| Interface | USB, LAN, RS-232, ExtI/O |
| Special Features | Linear |
| Display | 4.3 TFT LCD |
| Series | T3PS Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
