Multiple Output DC Supplies

Multiple output DC power supplies integrate two or more independently regulated voltage and current channels into a single instrument chassis. This design allows engineers to simultaneously power different voltage rails of a circuit under test — such as a 3.3 V digital core, 5 V I/O bus, and 12 V peripheral rail — without requiring multiple standalone units. Per-channel isolation prevents cross-channel interference, and programmable power-up sequencing enables safe operation of sensitive mixed-signal and RF circuits. Many models support series or parallel channel combination for extended voltage or current range.

These supplies are widely used wherever multi-rail power delivery must be precisely controlled and remotely automated. Keithley's 2230 series and Keysight's mobile communications DC sources exemplify the category: they combine tight regulation, low ripple noise, and full programmability via USB, LAN, and GPIB. Battery simulator variants in this class reproduce real-world battery impedance and voltage profiles for testing mobile devices and IoT hardware under realistic source conditions.

Typical Applications

Multi-rail PCB design validation in electronics R&D and hardware engineering labs
Mobile device and IoT hardware testing with dual-channel battery/charger simulation
Semiconductor component characterization requiring simultaneous independent bias voltages
Automated functional board test (ATE) with sequenced multi-channel power control
Mixed-signal and RF circuit development requiring isolated analog and digital supply rails

Popular Brands

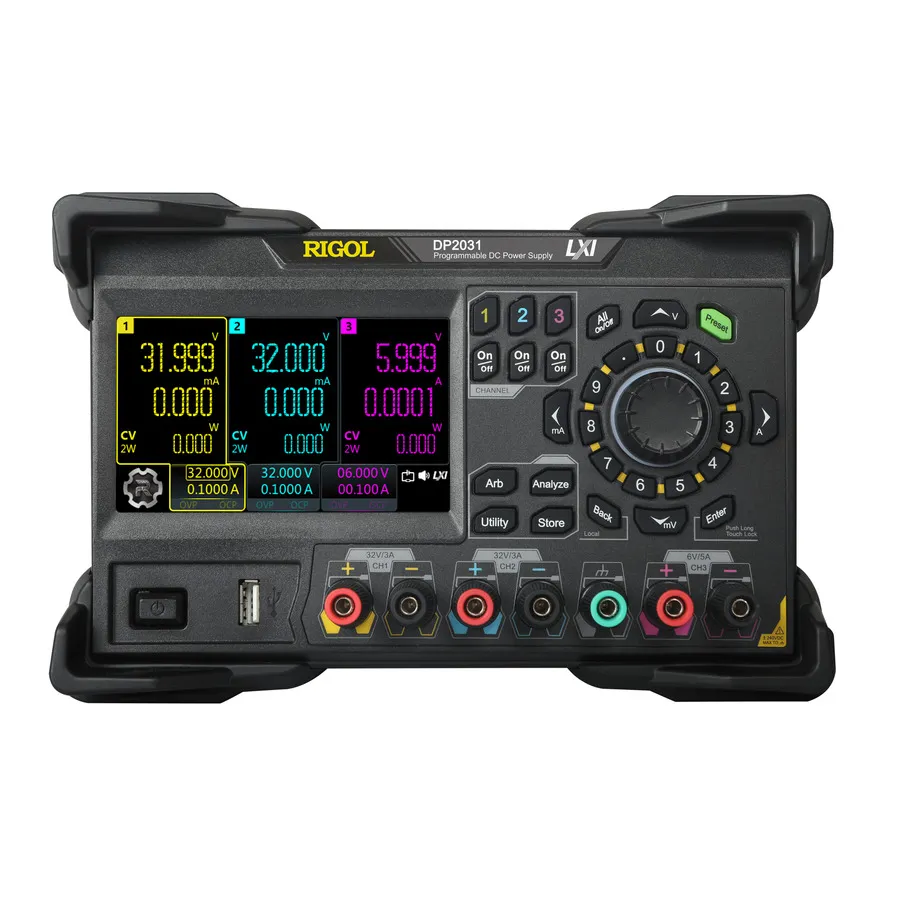

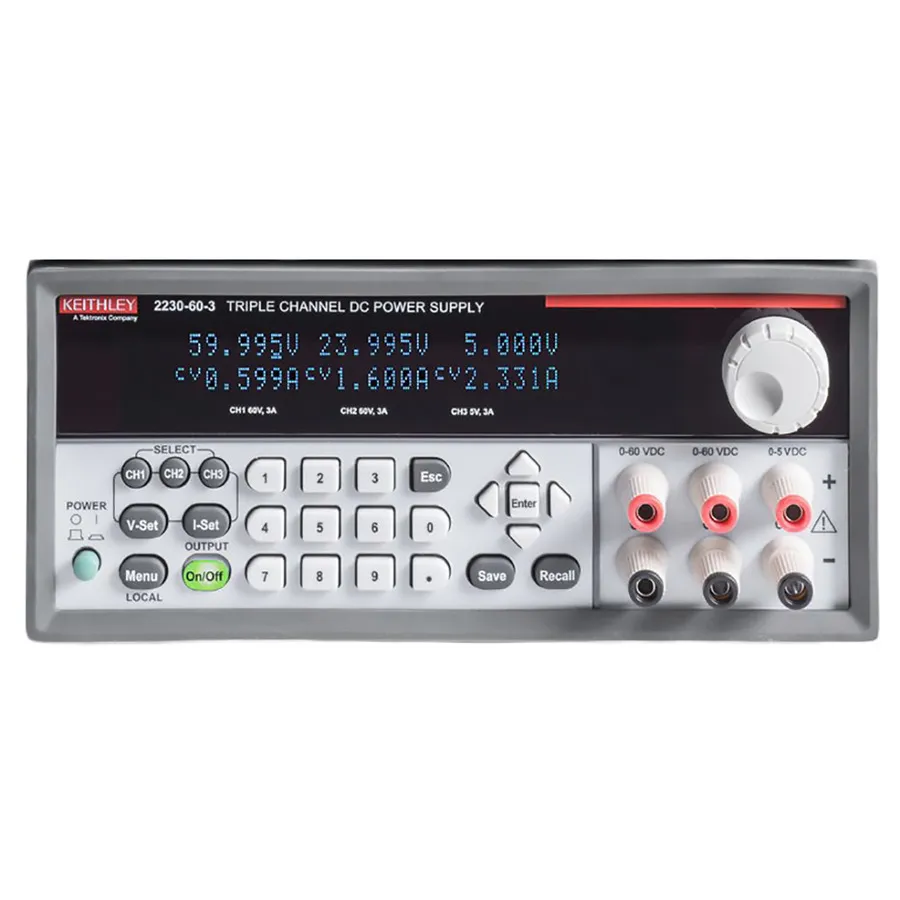

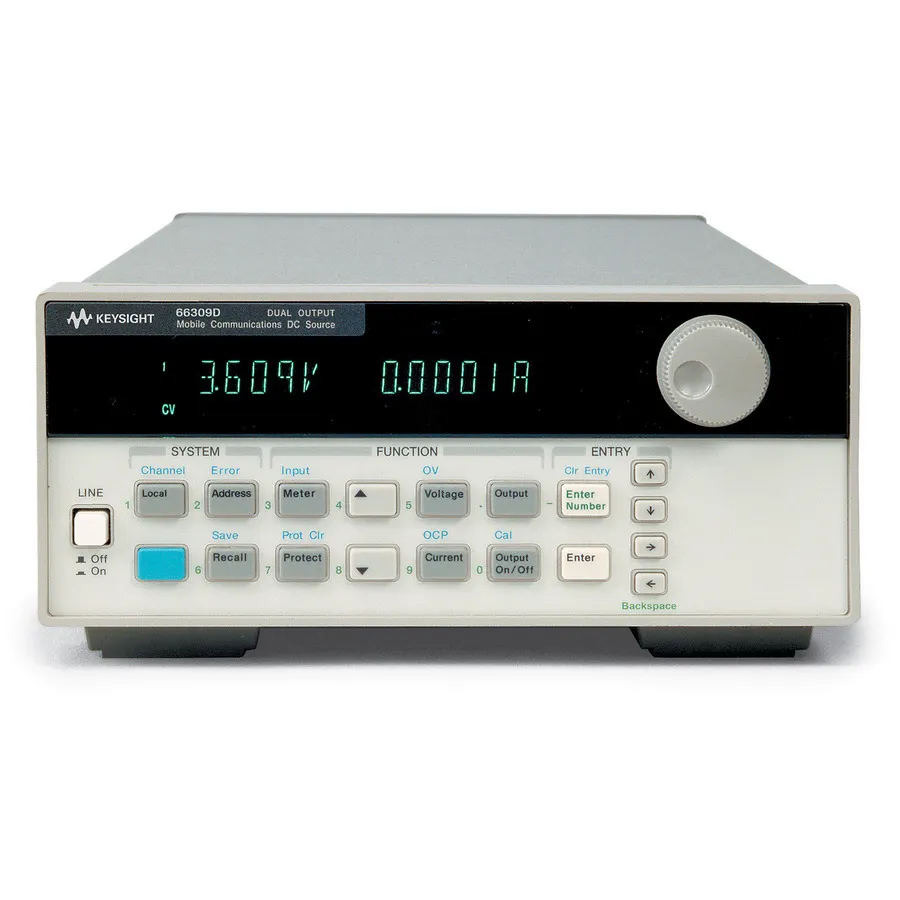

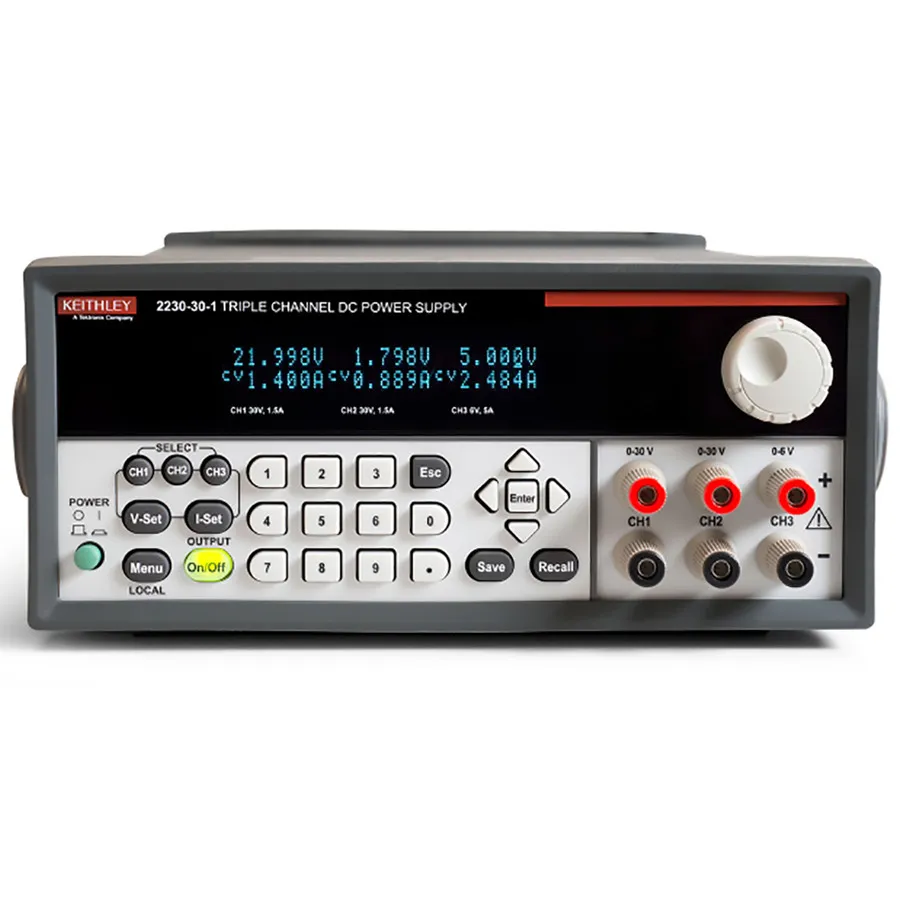

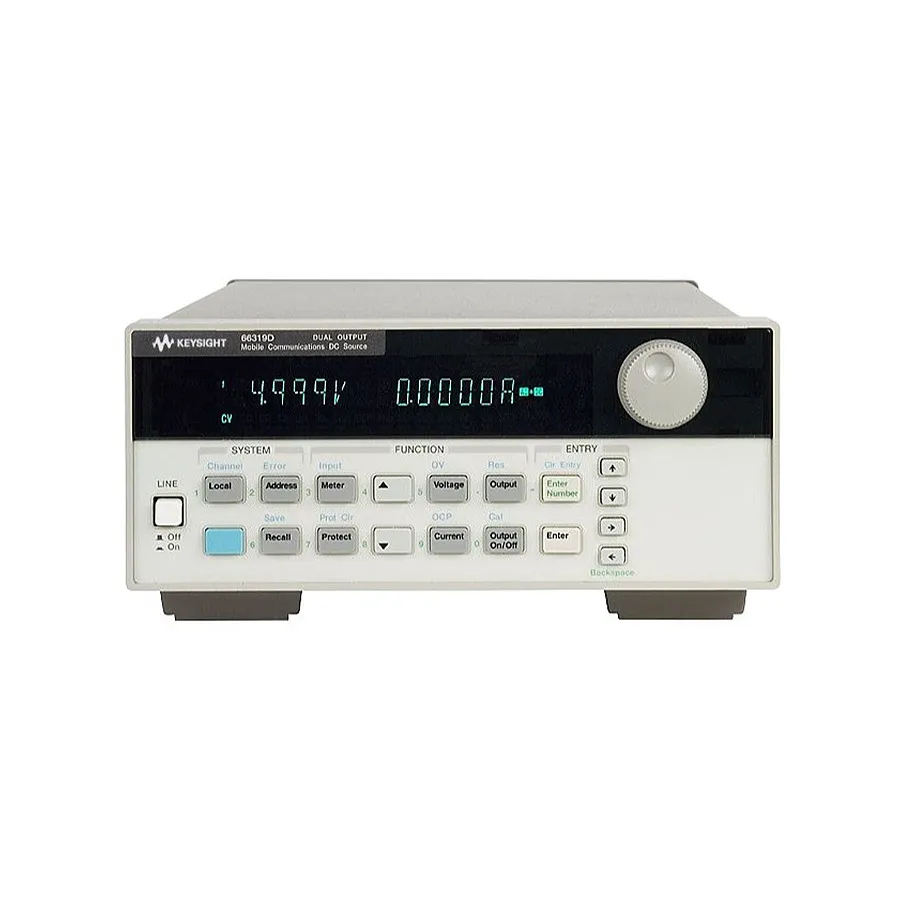

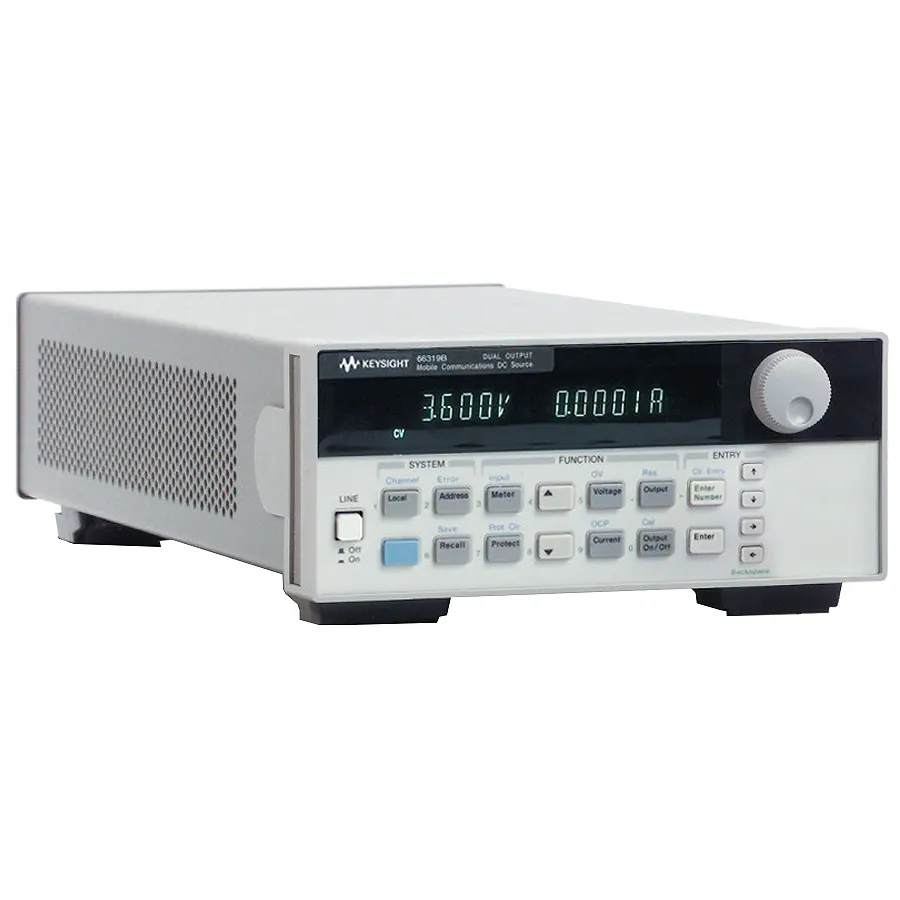

Keithley (Tektronix) leads this segment with the 2230 series triple-output programmable supplies and the 2306 dual-channel battery/charger simulator. Keysight Technologies offers the 663xx mobile communications DC source family designed for handset and base station test. ITECH and Rigol provide cost-effective programmable multi-output options suited for educational and production environments.
