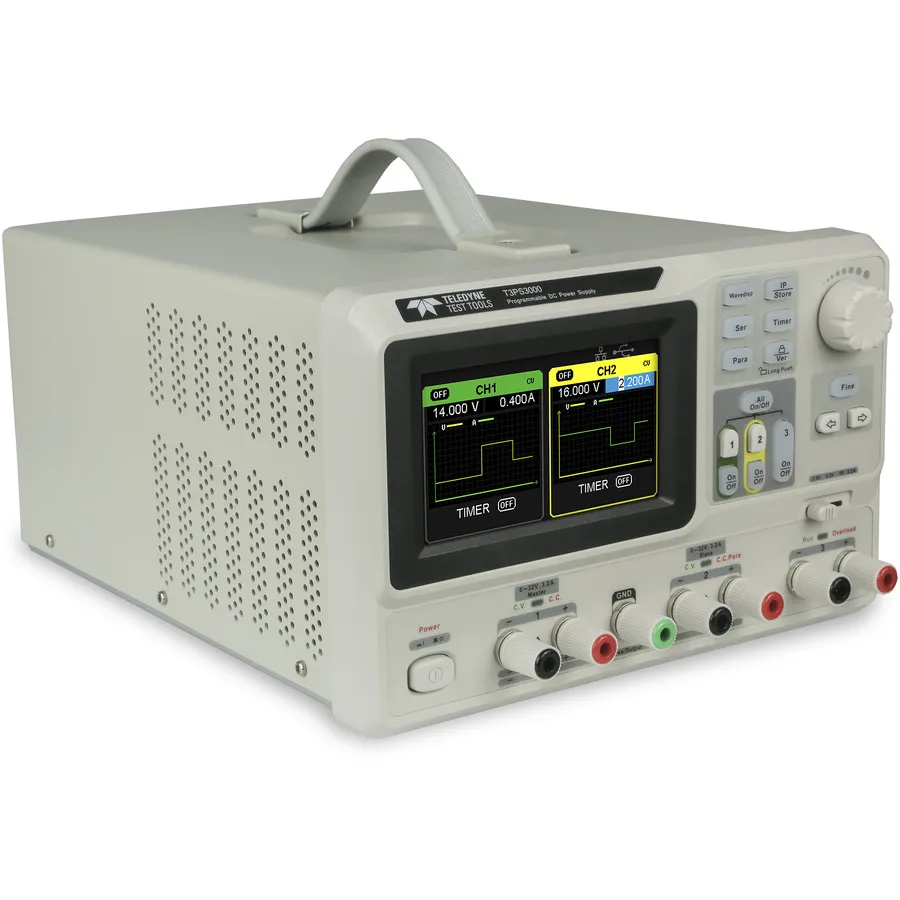

Teledyne LeCroy T3PS3000 Triple Output DC Power Supply
Request a quote
Teledyne LeCroy T3PS3000 is a 220W triple-output linear programmable DC supply with isolated outputs (2x 32V/3.2A, 1x selectable 2.5/3.3/5V) and graphical display.
Product details
| Model | T3PS3000 |
| Manufacturer | Teledyne LeCroy |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS3000 is a linear programmable DC power supply featuring three isolated outputs with a 4.3-inch TFT LCD display. It provides two 32V/3.2A adjustable channels and one selectable fixed output channel (2.5V, 3.3V, or 5V). Each output includes short and overload protection, making it suitable for education, production, and design and development applications.
Key Features
- 3 independent isolated outputs with short and overload protection
- High-resolution display: 5-digit voltage and 4-digit current with 1 mV/1 mA minimum resolution
- Three output modes: Series, parallel, and independent operation
- Graphical interface with real-time waveform display
- Fully programmable via USB and LAN interfaces
- Intelligent temperature-controlled cooling fan
- Series and parallel operation of the two main channels for extended flexibility
Applications
- Educational laboratories and student training
- Production testing and manufacturing
- Design and development of electronic systems
Specifications
| Number of Outputs | Triple Output |
| Output Voltage | 2.5V/3.3V/5V, 32V x 2 |
| Output Current | 3.2A x 3 |
| Power Rating | 220 W |
| Input Voltage | 100/120/220/230 VAC |
| Interface | USB, LAN |
| Special Features | Isolated Outputs |
| Display | 4.3 TFT LCD |
| Series | T3PS Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
