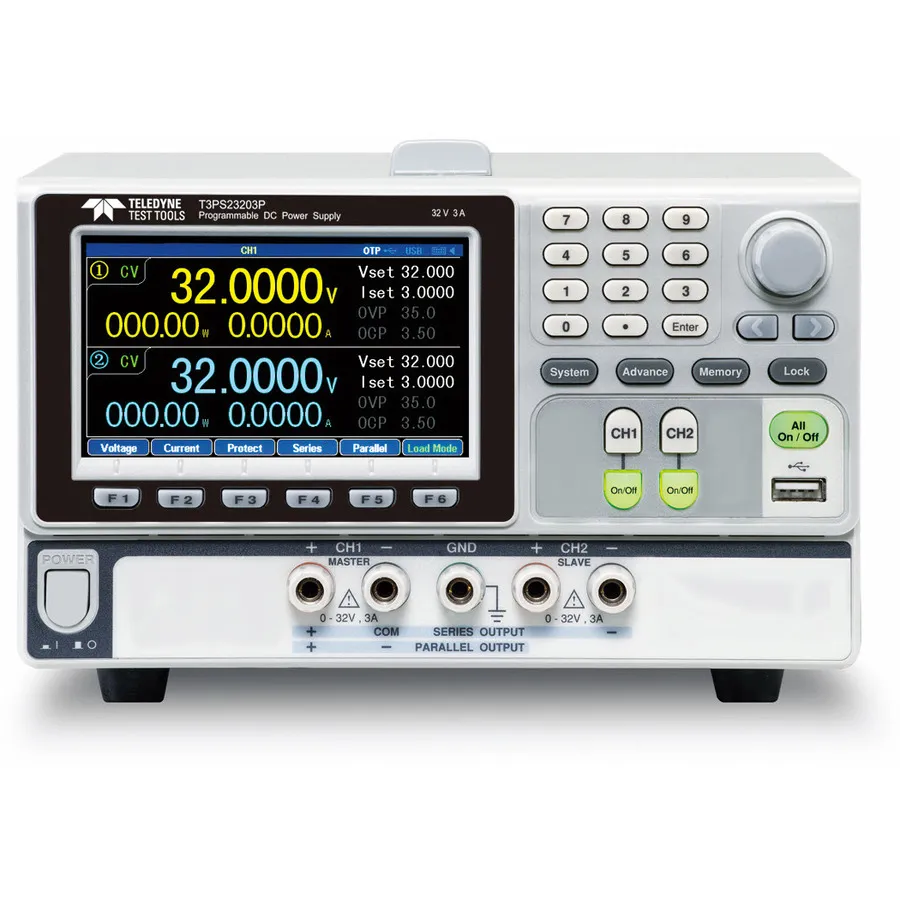

Teledyne LeCroy T3PS23203P Dual-Channel DC Power Supply
Request a quote
Teledyne LeCroy T3PS23203P is a 192W dual-channel programmable DC power supply with 32V/3A per channel, automatic tracking for series/parallel operation, and low-ripple output for precise multi-vol...
Product details
| Model | T3PS23203P |
| Manufacturer | Teledyne LeCroy |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy T3PS23203P is a 192W dual-channel programmable DC power supply in the T3PSx3200P Series. Each channel delivers 0–32V/0–3A output with high programming resolution (1 mV/0.1 mA) and excellent output characteristics. An integrated automatic tracking function simplifies series and parallel operation without requiring external wiring.
Key Features
- Dual independent channels with 32V/3A output each (192W total)
- High programming and readback resolution (1 mV/0.1 mA)
- Optimal low-ripple noise characteristics (≤ 350 μVrms / ≤ 2 mArms)
- Fast output transient recovery (≤ 50 μS)
- Independent on/off control switch for each channel
- Automatic tracking function for easy series/parallel operation without external wiring
- Multiple display modes: single channel, multi-channel, and waveform
- Monitor function with customizable alarms and output stop protection
- Output recorder function saves voltage/current data as *.REC or *.CSV files
- USB export capability for PC analysis and Excel integration
- Fully programmable via USB and other interfaces
Applications
- Multi-voltage circuit testing and debugging
- Redundant power supply simulation
- Series/parallel power testing without external wiring complexity
- Component characterization with dual voltage sources
- Long-term measurement recording and analysis
Specifications
| Number of Outputs | Dual Output |
| Output Voltage | 32V x 2 |
| Output Current | 3A x 2 |
| Power Rating | 192 W |
| Input Voltage | 100/120/220/230 VAC |
| Interface | USB, LAN, RS-232, ExtI/O |
| Special Features | Linear |
| Display | 4.3 TFT LCD |
| Series | T3PS Series |
| Mounting Type | Bench Top |
| Programmable | Yes |
