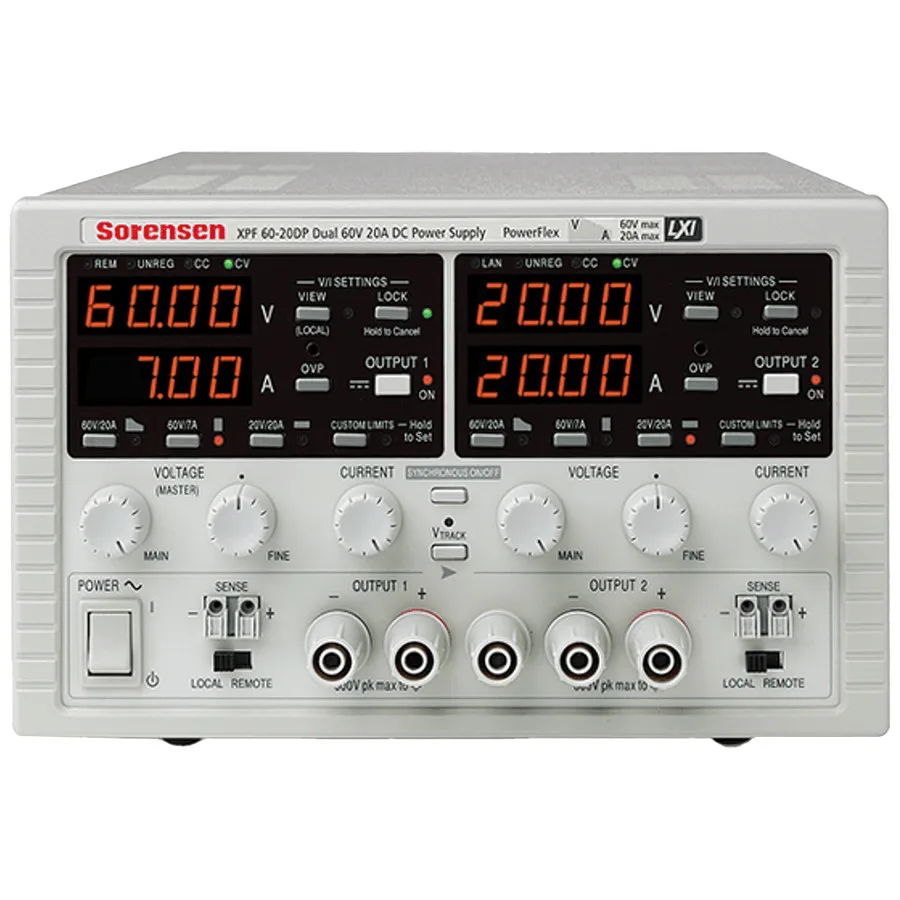

Sorensen XPF60-20D Dual Output Power Supply

Overview

The Sorensen XPF60-20D is a dual-output DC power supply designed for laboratory, research, and automated test equipment (ATE) applications requiring higher currents. It provides two completely independent and isolated 60V/20A outputs with 840W total capacity, allowing flexible voltage and current combinations within the power budget. The supply combines straightforward analog controls with digital convenience features.

Built with a compact form factor suitable for bench use or half/quarter-rack mounting, the XPF60-20D delivers reliable, stable power with low-noise output through mixed-mode regulation combining high-frequency pre-regulation and linear post-regulation.

Key Features

• Dual isolated outputs, 60V/20A each (840W total power)
• PowerFlex technology enables flexible voltage/current allocation within the power envelope
• Mixed-mode regulation (pre-regulator + linear post-regulator) for low noise and good transient response
• Constant voltage or constant current operation mode with automatic crossover
• Switchable remote or local sense per output for precise load regulation
• True analog controls with digital settings locking (S-Lock)
• Safety binding-post terminals (touch-proof to 250V) accepting bare wire, spade connectors, 4mm plugs, or safety plugs
• Over-voltage protection per output
• Compact design for bench use or half/quarter-rack mounting

Applications

• Electronic equipment testing and troubleshooting
• Research and development laboratories
• Automated test equipment (ATE) systems
• High-current power supply and conversion testing
• Educational and training environments
