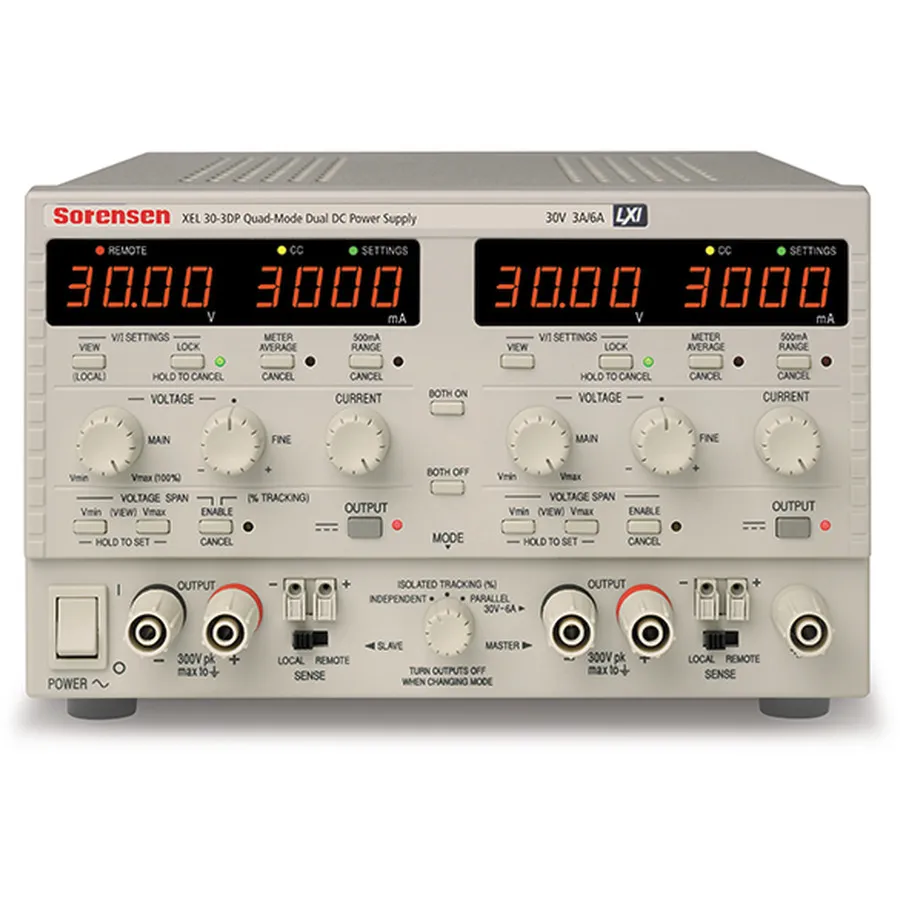

Sorensen XEL30-3D Dual Output DC Power Supply
Request a quote
Sorensen XEL30-3D dual-output benchtop DC power supply delivers two independent 0-30V/3A channels (90W each, 180W total) with isolated and tracking operation modes.
Product details
| Model | XEL30-3D |
| Manufacturer | Sorensen |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Sorensen XEL30-3D is a compact dual-output benchtop linear DC power supply for laboratory and engineering applications. It provides two independent, isolated 0-30V/3A outputs (90W per channel, 180W total) with advanced operating modes including isolated, tracking, ratio tracking, and true parallel configurations. The compact 8.4 x 11.3-inch footprint accommodates dual-channel functionality in a benchtop-friendly size.
Key Features
- Dual independent channels: 0-30V at 3A per output (90W each, 180W total)
- Four output operating modes: isolated, tracking, ratio tracking, and true parallel
- Independent or synchronized on/off control for each output channel
- S-Lock function allows setting and locking fixed output voltages
- V-Span feature enables user-defined minimum and maximum voltage limits
- Output Enable button allows setup without powering the output terminals
- Compact dual-output design measuring 8.4 x 11.3 inches (216 x 287 mm)
- Three-year manufacturer warranty
- Interface options: LXI Class C Ethernet, USB, RS-232 (D models); adds GPIB (DP models)
Applications
- Engineering laboratory testing requiring multiple independent power sources
- Dual-supply circuit testing and validation
- Symmetric biased power supply applications
- System integration with LXI-compliant test equipment
Specifications
| Number of Outputs | Dual Output |
| Output Voltage | 30V x 2 |
| Output Current | 3A x 2 |
| Power Rating | 180 W |
| Input Voltage | 115 VAC |
| Interface | None |
| Special Features | Isolated Outputs |
| Display | LED |
| Series | XEL Series |
| Mounting Type | Bench Top |
| Programmable | No |
