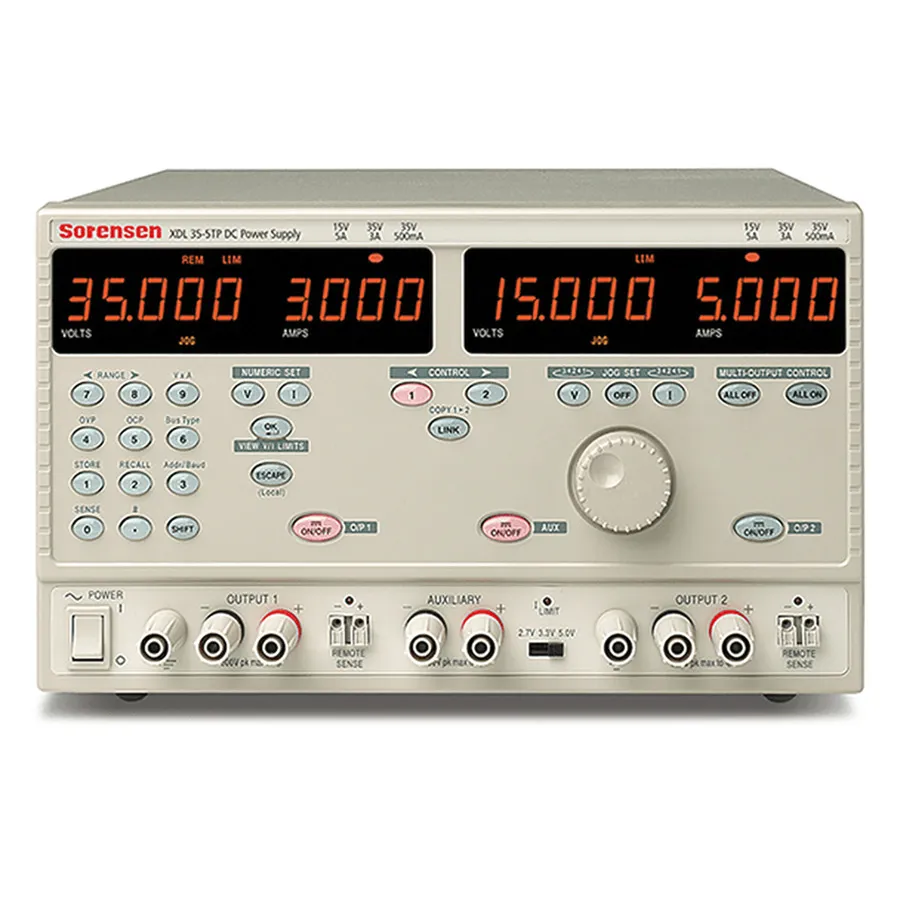

Sorensen XDL35-5TP DC Linear Power Supply

Overview

The Sorensen XDL35-5TP is a triple-output programmable linear DC power supply designed for integrated laboratory and ATE environments. The P variant includes GPIB, RS-232, USB, and LAN (LXI-C) interfaces for remote control and data readback, enabling full automation and system integration. It offers two independent main outputs with multiple voltage and current ranges, plus a fully isolated auxiliary output (1.0–5.0V, 3A). 16-bit DACs provide 1mV voltage and 0.1mA current resolution, supporting calibration-grade accuracy.

Pure linear technology ensures superior regulation and low-noise performance. Transient recovery is faster than 50µs, with output noise below 350µV rms in constant-voltage mode. Rear-panel output terminals support simultaneous front and back connectivity for system flexibility.

Key Features

• GPIB, RS-232, USB, and LAN (LXI-C) interfaces for remote control and monitoring
• Three independent outputs: two main + one auxiliary (1.000–5.000V, 3A)
• Multiple voltage/current ranges: 0–35V at 3A, 0–15V at 5A, 0–35V at 500mA
• 1mV voltage and 0.1mA current resolution
• Rear-panel output and sense terminals for system integration
• Remote voltage and current readback via bus interface
• Constant-voltage and constant-current operation modes
• Direct numeric entry and incremental rotary control
• Up to 30 non-volatile stored setups per output
• Link and copy modes for synchronized multi-output control
• Remote or local sense for load regulation
• Fully adjustable over-voltage, over-current, and over-temperature protection
• Alarm output on protection trip
• Output noise: <350µV rms (CV), <20µA rms (CI)

Applications

• Automated test systems and production test equipment
• Multi-voltage component and subsystem validation
• Precision laboratory power with remote software control
• Research equipment integration and networked test labs
• Environmental and thermal test chamber control
• System-level burn-in and reliability testing
