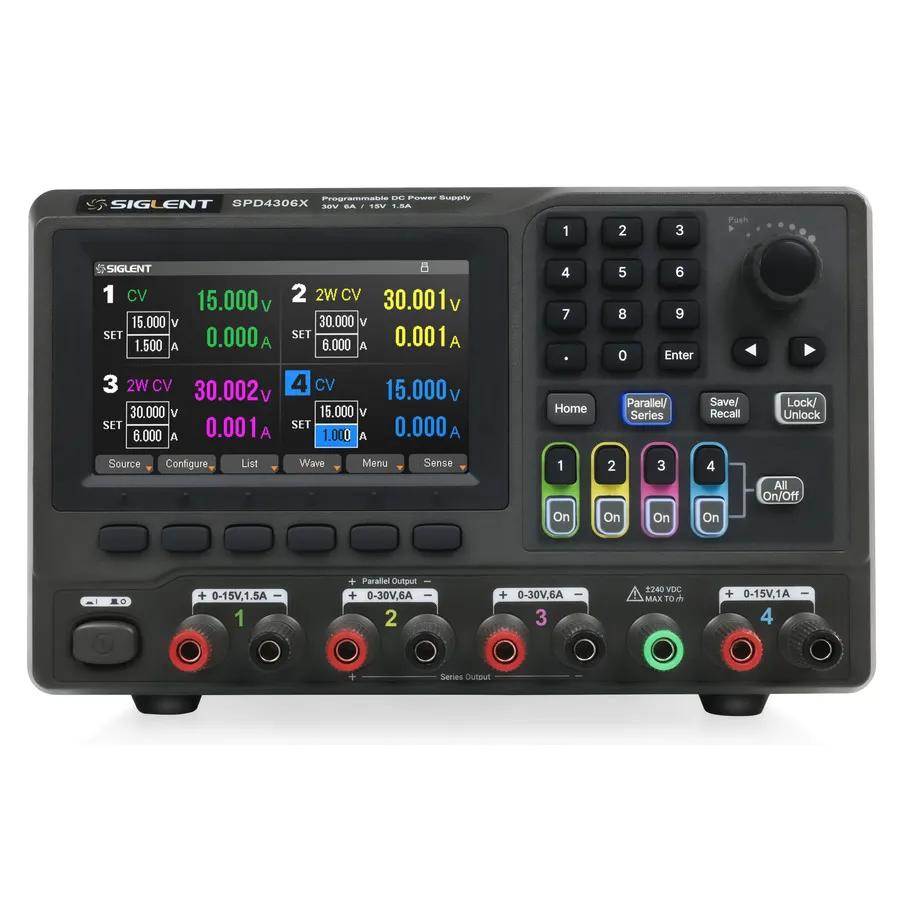

Siglent SPD4306X Programmable Linear DC Power Supply

Overview

The Siglent SPD4306X is a 4-channel programmable linear DC power supply featuring a compact 3U half-rack package. It delivers CH1 at 15V/1.5A, CH2/CH3 at 30V/6A, and CH4 at 15V/1A with a total rated output of 400W. The supply combines high resolution (1mV/1mA), precision control, and versatile channel configuration options for laboratory and manufacturing applications.

The unit features a 4.3-inch color TFT LCD display with real-time waveform monitoring, multiple communication interfaces (USB and LAN standard), and optional USB GPIB support. An embedded web server enables direct browser-based control without additional software installation.

Key Features

• Four independently controllable outputs with mixed voltage/current ratings (400W total)
• Channels 2 and 3 can be connected in series (60V/6A) or parallel (30V/12A)
• 5-digit voltage and current display with 1mV/1mA resolution
• Fast output response time less than 50 microseconds
• Overvoltage and overcurrent protection with remote voltage compensation sense
• 4.3-inch color TFT LCD with waveform and timer display modes
• List operation function for complex testing with up to 50 steps or imported sequences
• USB and LAN connectivity with optional GPIB module support
• Embedded web server with virtual control panel
• Internal non-volatile memory for settings and program storage

Applications

• Laboratory power source for multi-channel device testing
• Manufacturing and production line testing
• Research and development
• System integration with remote monitoring requirements

Included Accessories

• USB cable
• QuickStart guide
• Calibration certificate
• Power cord
• 3A output test cord
