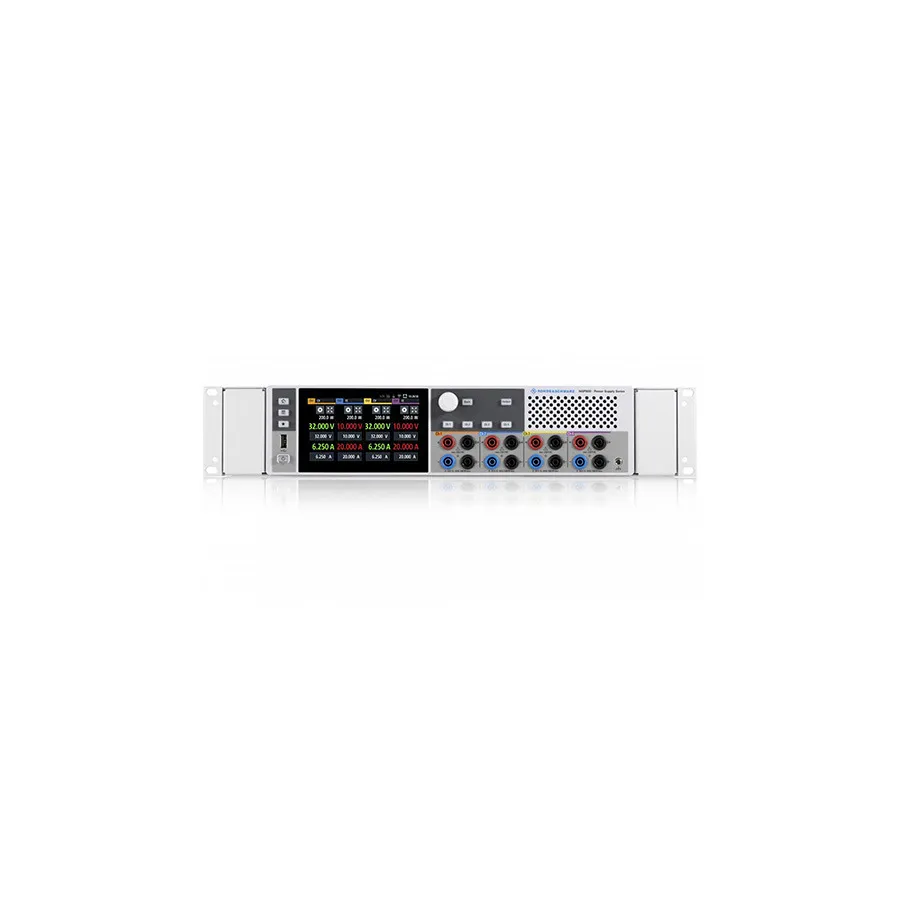

Rohde & Schwarz NGP814 Power Supply
Request a quote
Rohde & Schwarz NGP814 is an 800W quad-channel DC power supply with mixed outputs (2×32V/20A, 2×64V/10A), touchscreen display, and up to 128V series or 40A parallel operation.
Product details
| Model | NGP814 |
| Manufacturer | Rohde & Schwarz |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz NGP814 is a four-channel DC power supply with 800W total output, featuring mixed output configurations: two channels rated for 32V/20A and two channels for 64V/10A. This flexible design accommodates diverse testing requirements. The galvanically isolated outputs can be synchronized and wired in series for up to 128V or parallel for up to 40A, making it ideal for both bench work and integrated test systems.
Key Features
- Four channels with mixed voltage/current ratings (2×32V/20A, 2×64V/10A)
- 800W maximum output power
- Galvanically isolated, independently controllable channels
- Series operation: up to 128V; Parallel operation: up to 40A
- Load regulation: < 0.01% + 5mV
- Rise time < 12ms; Fall time < 10ms (full load) to < 50ms (no load)
- Large touchscreen with intuitive user interface
- Remote sense terminals for precise voltage monitoring
- USB and LAN standard; optional GPIB, trigger I/O, analog input, and wireless LAN
- Data logging and waveform testing capabilities
Applications
- Multi-voltage testing scenarios
- Advanced automated test systems
- Power semiconductor characterization
- Mixed-signal device testing
- Research laboratories and development teams
Specifications
| Number of Outputs | Quad Output |
| Output Voltage | 32V x 2, 64V x 2 |
| Output Current | 10A x 2, 20A x 2 |
| Power Rating | 800 W |
| Input Voltage | 100-250 VAC |
| Interface | USB, LAN |
| Special Features | Series, Parallel Modes |
| Display | 5 TFT Touch |
| Series | NGP Series |
| Alternate Product Number | 5601.4007.04 |
| Mounting Type | Bench Top |
| Programmable | Yes |
| Type | Power Supply |
