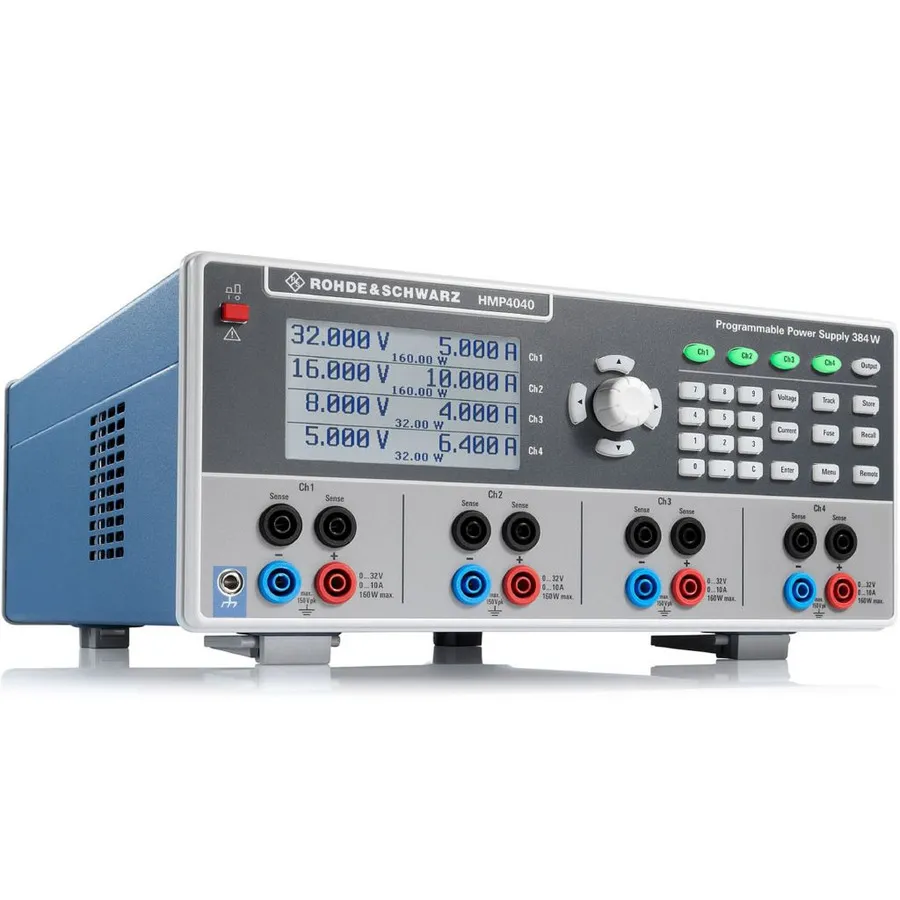

Rohde & Schwarz HMP4040 Power Supply
Request a quote
Rohde & Schwarz HMP4040 is a four-channel DC power supply with 384W total output, 10A per channel, 0–32V range, and galvanically isolated outputs.
Product details
| Model | HMP4040 |
| Manufacturer | Rohde & Schwarz |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz HMP4040 is a four-channel DC power supply designed for industrial, laboratory, and test system applications. It delivers up to 384W total output power with 10A maximum current and 0–32V range per channel. The instrument features galvanically isolated floating channels that can operate independently or be combined in series or parallel for higher voltages and currents.
Key Features
- 4 galvanically isolated, floating output channels
- 384W total output power; 160W maximum per channel
- 10A maximum output current per channel; 0–32V voltage range
- Constant voltage and constant current operation modes
- Overload and short-circuit protection on all channels
- Tracking and link functions for synchronized operation
- Remote sensing for improved accuracy
- Compact design with intuitive interface and color-coded operating states
Applications
- Laboratory power applications and bench testing
- Automated test system integration
- Industrial equipment development and validation
- Research and prototype power delivery
Included Accessories
- Quick start guide
- Set of power cables
- Three-year warranty
Specifications
| Number of Outputs | Quad Output |
| Output Voltage | 32V x 4 |
| Output Current | 10A x 4 |
| Power Rating | 384 W |
| Input Voltage | 115/230 VAC |
| Interface | USB, LAN |
| Special Features | Series, Parallel Modes |
| Display | LCD |
| Series | HMP Series |
| Alternate Product Number | 3629.6776.04 |
| Mounting Type | Bench Top |
| Programmable | Yes |
| Type | Power Supply |
