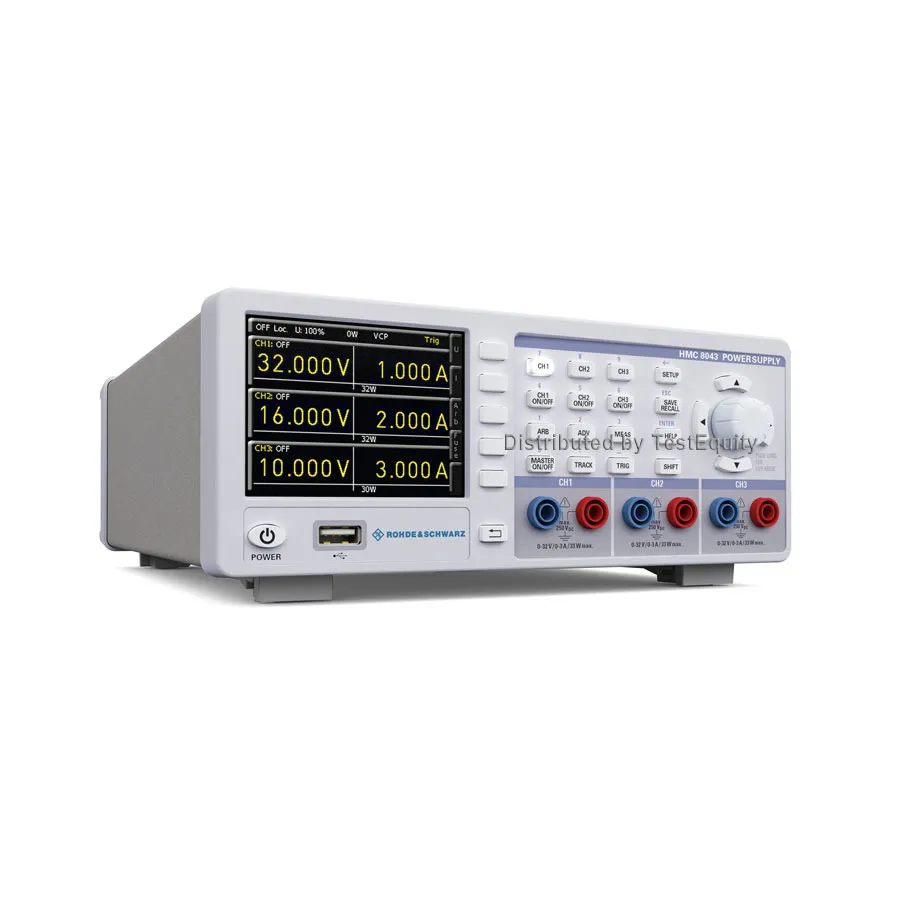

Rohde & Schwarz HMC8043 Triple Output DC Power Supply
Rohde & Schwarz HMC8043 is a triple-output DC power supply with 100W total power, three 0-32V/0-3A channels, LAN/USB/GPIB connectivity, and integrated data logging.
Product details
| Model | HMC8043 |
| Manufacturer | Rohde & Schwarz |
| Category | Multiple Output DC Supplies |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz HMC8043 is a triple-output DC power supply designed for development labs and industrial environments. With a total output power of 100W distributed across three independent channels, each capable of 0-32V at 0-3A, this supply offers flexibility for multi-channel testing and prototyping. The unit features high energy efficiency with linear switching technology, ensuring cool and quiet operation even at full load.
The HMC8043 is half-rack width and rack-mountable, making it suitable for bench-top or integrated 19" rack installations. All connectors, including SENSE leads, are located on the rear panel with cage clamp facilities for easy rack installation and removal.
Key Features
- Three independent channels, each 0-32V, 0-3A (33W max per channel)
- Total output power: 100W
- Resolution: 1mV / 0.1mA
- Galvanically isolated, floating outputs with overload and short-circuit protection
- QVGA display showing voltage, current, and power values
- LXI-compliant connectivity: LAN, USB (TMC and virtual COM port), optional GPIB
- Data logging directly to USB flash drive (CSV format)
- Programmable EasyArb and EasyRamp functions
- Electronic fuses with FuseLink and FuseDelay features
- Analog input for external voltage control
- External trigger input for channel and sequencing control
- Adjustable overvoltage and overpower protection per channel
Applications
- Hardware development and prototyping with multi-channel power requirements
- Laboratory testing and measurement
- Industrial equipment testing and commissioning
- Power-supply load testing with data logging capability
Specifications
| Number of Outputs | Triple Output |
| Output Voltage | 32V x 3 |
| Output Current | 3A x 3 |
| Power Rating | 100 W |
| Input Voltage | 100-240 VAC |
| Interface | USB, LAN |
| Special Features | Series, Parallel Modes |
| Display | 3.5 QVGA |
| Series | HMC Series |
| Alternate Product Number | 3593.1041.02 |
| Mounting Type | Bench Top |
| Programmable | Yes |
| Type | DC Power Supply |
