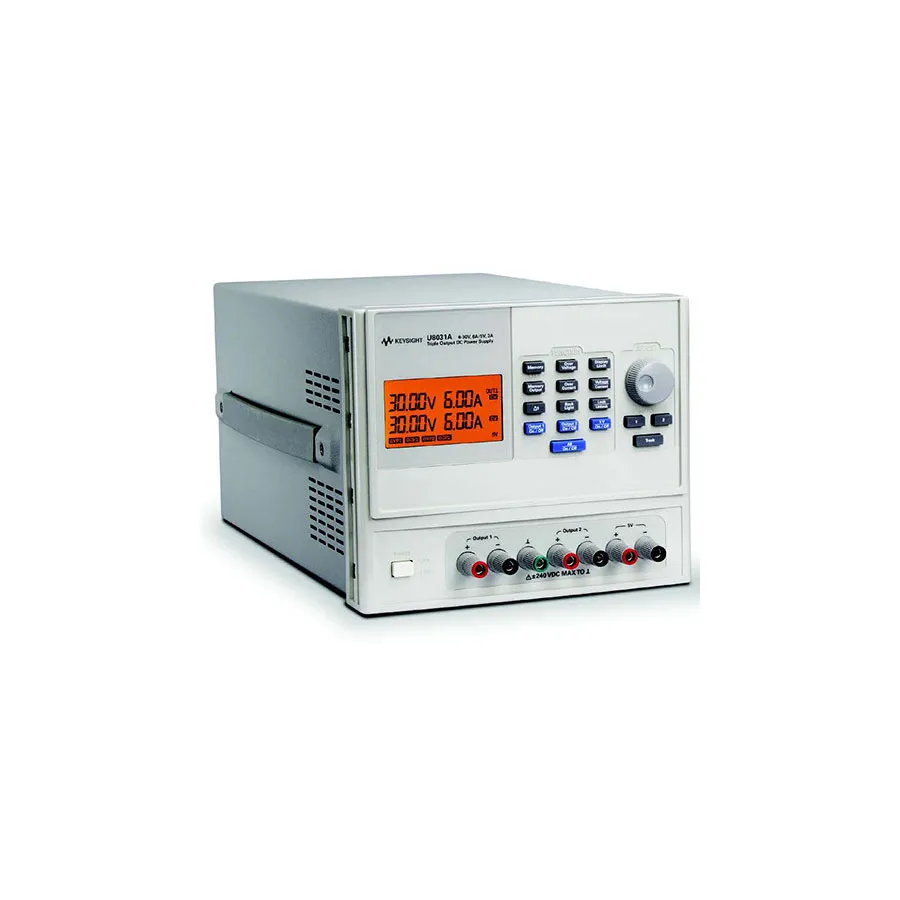

Keysight U8031A/0EM Triple-Output DC Power Supply

Overview

The Keysight U8031A/0EM is a 375W triple-output non-programmable DC power supply featuring analog front-panel programming capability. Designed for electronics manufacturing and industrial test environments, it combines the simplicity of manual operation with powerful sequencing and automation functions. This supply delivers reliable three-channel DC power with industry-leading load regulation and noise performance.

Key Features

• Triple-output configuration: 2× 0–30V/0–6A channels + fixed 5V/3A output (total 375W)
• Excellent load and line regulation (CV: <0.01% + 2 mV; CC: <0.02% + 2 mA)
• Clean output with ≤1 mVrms (0.5 mVrms typical) noise for sensitive circuits
• Fast transient response <50 µsec for stable device testing
• Dual display simultaneously shows voltage and current for each output
• Analog front-panel programming with easy rotary knob and intuitive keypads
• Sequencing capability for automated margin tests and burn-in testing
• Integrated overvoltage and overcurrent protection
• Individual or simultaneous control of output channels

Applications

• Electronics manufacturing and production test environments
• Burn-in testing and device margin analysis
• Industrial automation with sequencing requirements
• Research and development laboratories
• Educational institutions and technical training

Included Accessories

• Power cord
• Quick Reference Guide
• CD ROM (contains User Guide and Service Guide)
• Certificate of Calibration
• Three-year warranty
