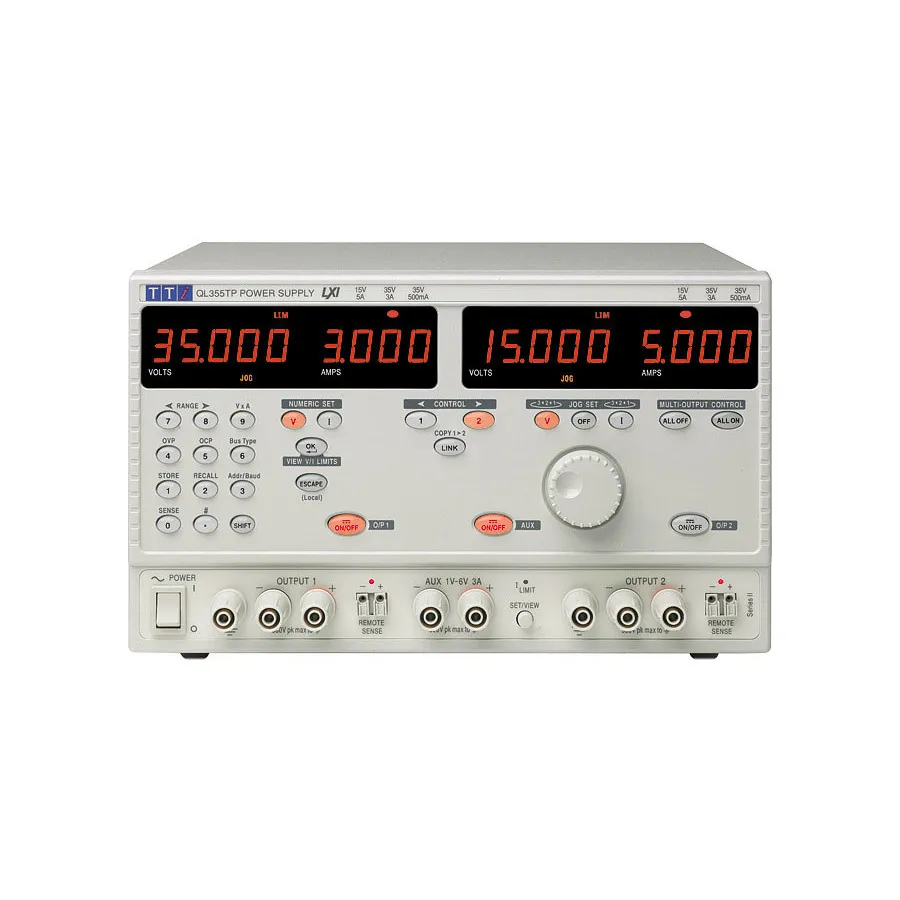

Aim TTi QL355TP SII DC Power Supply

Overview

The Aim TTi QL355TP SII is a triple-output 228W linear regulated DC power supply designed for precision bench and system applications. It combines exceptional voltage and current precision with comprehensive digital interfaces and flexible output configurations.

Key Features

• Triple outputs: 2 x 0-35V/3A (or 0-15V/5A) + 1-6V/3A auxiliary
• 228W total power capacity
• 1mV voltage resolution using 16-bit DACs
• Exceptional precision suitable for DMM calibration
• Differential output noise less than 350µV RMS (CV mode)
• Common mode noise current less than 4µA RMS
• Fast transient recovery better than 50µs
• Numeric and rotary control with illuminated interface
• Up to 50 non-volatile memory slots for setup storage
• Switchable remote sense capability
• Comprehensive OVP and OCP protection
• Digital interfaces: USB, RS-232, GPIB, LAN (LXI compliant)
• Front and rear mounted output terminals
• Compact modular design for bench or rack mounting

Applications

• Precision measurement and equipment calibration
• Telecommunications and critical circuit testing
• Automated test systems via digital bus control
• Research laboratories and development
• High-precision analog circuit powering

Included Accessories

• Power supply cable
• USB interface cable and drivers
• IVI drivers for Windows (LabView, LabWindows, VEE support)
