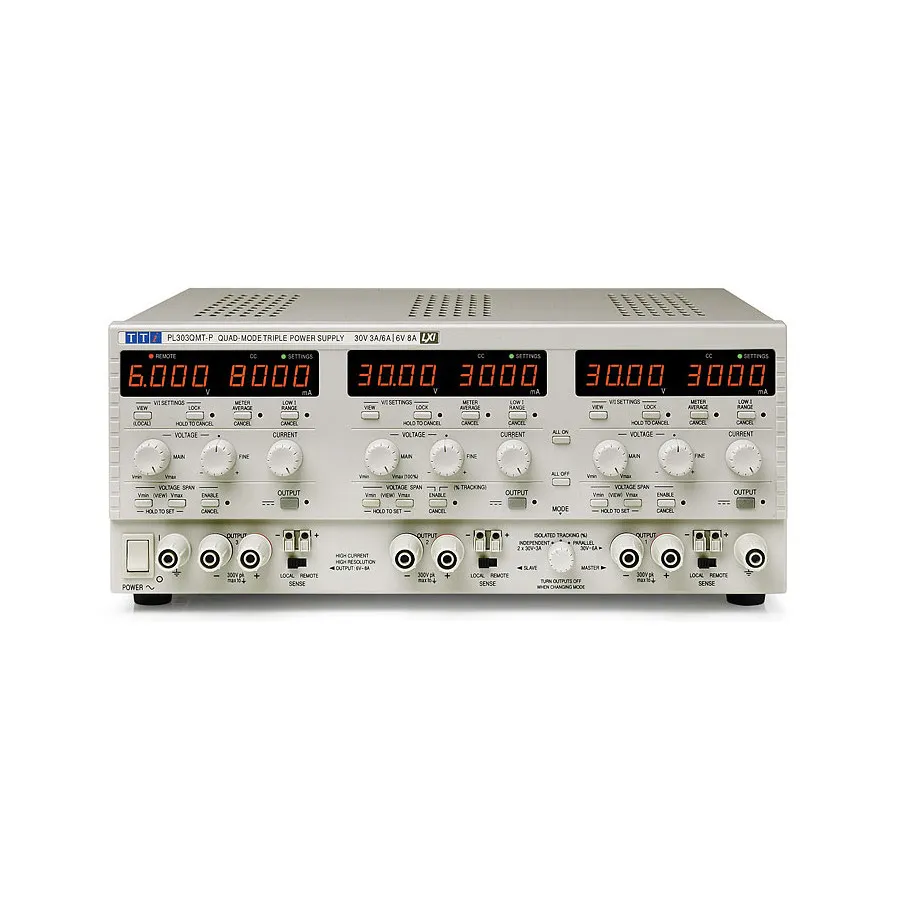

Aim TTi PL303QMT Triple Output DC Power Supply

Overview

The Aim TTi PL303QMT is a triple output DC power supply delivering 228 watts of power in a compact 3/4-rack 3U sized enclosure. It provides two main 0-30V outputs (switchable between 3A each or 6A single configuration) plus a separate 0-6V, 0-8A auxiliary output. The unit operates in four distinct modes and features analog controls with digital stability features, making it suitable for complex multi-rail power requirements in laboratory and development environments.

Key Features

• 228W power with triple outputs: 2x (0-30V, 0.1mA-3A) or single 6A output (0-30V, 0.2mA-6A), plus dedicated 0-6V, 0-8A auxiliary output
• High accuracy four-digit meters for voltage and current monitoring
• S-Lock digitally locks voltage and current settings to prevent accidental changes and drift
• True analog controls with V-Span function enabling full 300° voltage control range adjustment
• Ultra-low output noise: 0.4mV RMS with tightly specified peak-peak and common-mode current
• Four operating modes: Independent, Isolated Tracking, Isolated Ratio Tracking, and True Parallel
• Independent DC output switches for each channel
• Local and remote voltage sensing capability
• Safety binding post terminals compatible with fixed-shroud 4mm plugs

Operating Modes

• Independent Mode: All outputs are completely independent and electrically isolated
• Isolated Tracking Mode: Slave output mirrors Master voltage while remaining isolated
• Isolated Ratio Tracking Mode: Slave voltage follows Master as a selectable percentage
• True Parallel Mode: Primary outputs can be paralleled for higher current delivery

Applications

• Multi-rail circuit testing with complex power requirements
• Prototype development requiring three independent or related voltage sources
• Educational laboratory applications with demanding power configurations
• Testing equipment requiring flexible triple-output power delivery
