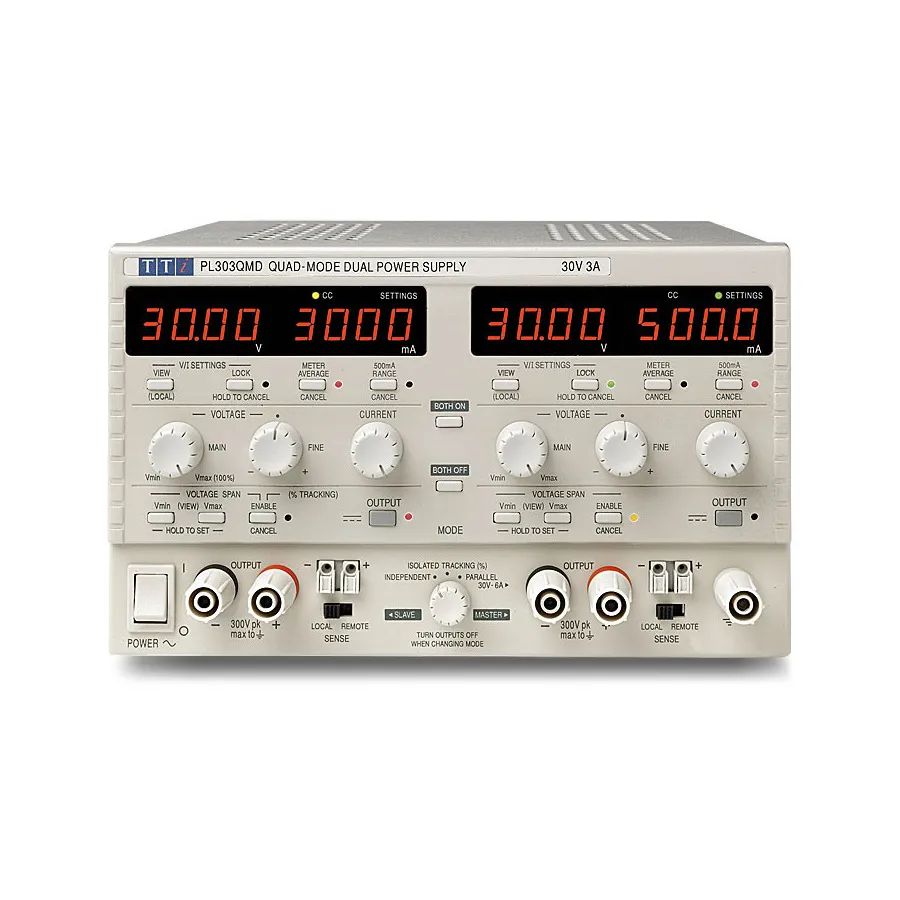

Aim TTi PL303QMD Dual Output DC Power Supply

Overview

The Aim TTi PL303QMD is a dual output DC power supply designed for laboratory and bench-top applications. It delivers 180 watts of power in a compact 3U half-rack enclosure. The unit operates in four distinct modes (Independent, Isolated Tracking, Isolated Ratio Tracking, and True Parallel) providing flexibility for various testing and development scenarios. Linear regulation with ultra-low output noise ensures clean power for sensitive circuits.

Key Features

• 180W power in dual outputs: 2x (0-30V, 0-3A each) or single 6A output (0-30V, 0-6A), plus 0-6V, 0-8A auxiliary output
• High accuracy four-digit meters for precise voltage and current monitoring
• S-Lock digital lock feature to secure and stabilize settings against drift
• Analog controls with full 300° voltage control range via V-Span function
• Ultra-low output noise (0.4mV RMS) with linear regulation
• Four operating modes: Independent, Isolated Tracking, Isolated Ratio Tracking, and True Parallel
• Independent DC output switches and remote voltage sensing capability
• Safety binding post terminals compatible with fixed-shroud 4mm plugs

Applications

• Bench-top laboratory testing and circuit development
• Prototype development with dual voltage rail requirements
• Educational laboratory and training applications
• Equipment requiring flexible output voltage and current configurations
