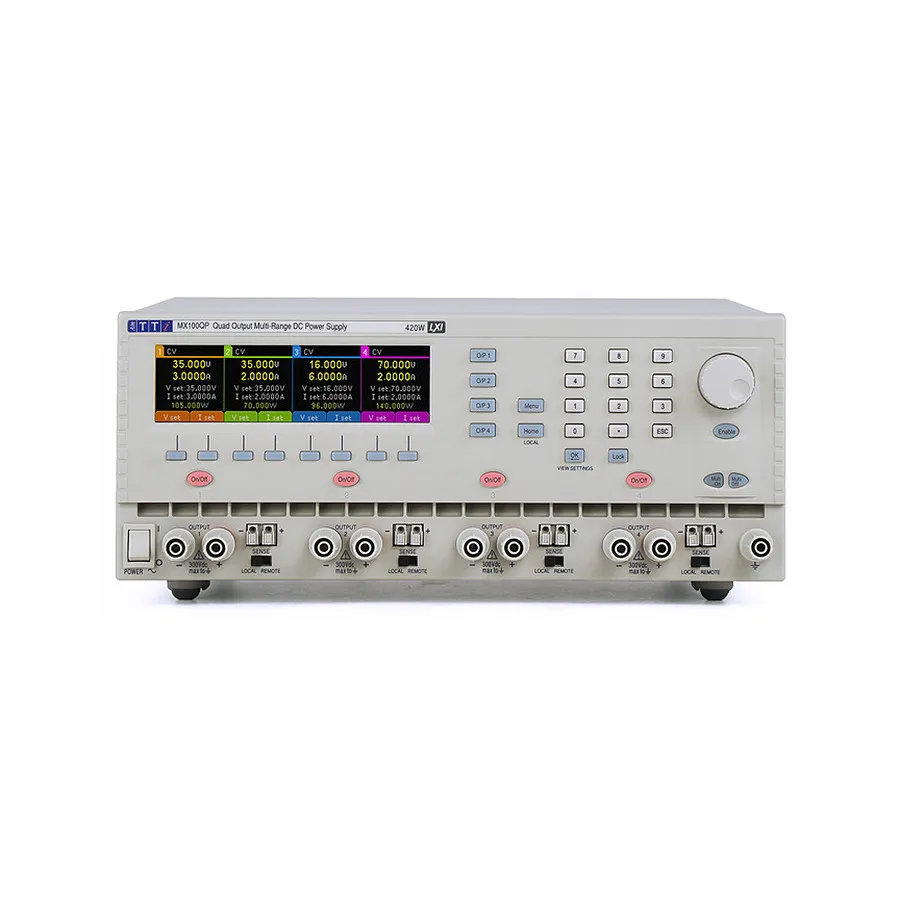

Aim TTi MX100QP S2 Quad Output DC Power Supply

Overview

The Aim TTi MX100QP S2 is a quad-output DC power supply delivering 420W across four independent, fully-featured outputs. Each output provides 0 to 35V at 0 to 3A, with additional range options extending to 70V/1.5A. The unit combines high-frequency switch-mode pre-regulation with linear post-regulation to achieve low noise, excellent regulation, and compact power density. The S2 series adds enhanced power sharing, variable protection limits, and a high-resolution graphic LCD display for simultaneous monitoring of all four outputs.

Key Features

• Four independent outputs, 420W total power
• Output ranges: 16V/6A, 35V/3A, 35V/6A, 70V/1.5A, 70V/3A
• Power sharing enables up to 210W from a single output
• 1mV and 0.1mA high-resolution setting and metering
• Variable OVP and OCP trip limits with TripLink capability
• 50 setting memories per output plus 50 linked multi-output memories
• 5.2-inch graphic LCD with simultaneous all-output display
• Switchable remote sensing on all outputs
• Programmable voltage tracking between outputs
• Programmable sequenced on/off control with 10ms to 20s delays
• USB, RS232, and LAN (LXI) interfaces for remote automation
• Front and rear output terminals (P versions)
• 3U rack case for bench or rack mounting

Applications

• Multi-rail circuit development and verification
• Automated test systems requiring programmable sequencing
• Research and laboratory testing with voltage/current memory recall
• System applications with rail-sensitive circuit protection needs
• High-density instrument systems requiring compact 420W multi-output supply
