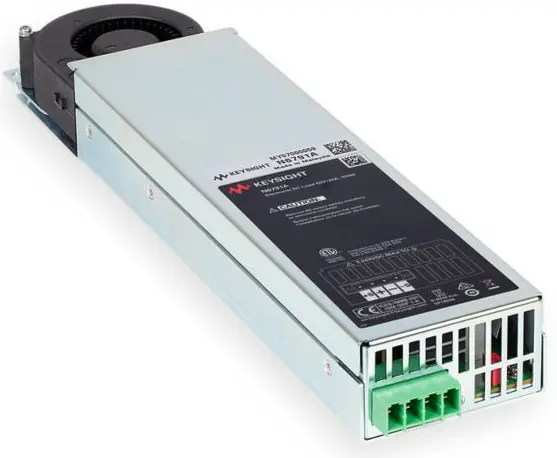

Keysight N6791A DC Electronic Load Module
Keysight N6791A is a 1U modular DC electronic load module with 60V/20A/100W sinking capacity, four operating modes (CV, CC, CR, CP), and arbitrary waveform generation for N6700 series mainframes.
Product details
| Model | N6791A |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N6791A is a 1U single-wide modular DC electronic load module designed for use with N6700C and compatible mainframes. It is capable of sinking power up to 100W per channel and can be configured in multiples up to four modules per mainframe.
This module allows simultaneous testing of multiple DC power conversion system outputs, significantly reducing test time compared to sequential testing with external equipment. Built-in measurement capabilities enable concurrent output monitoring and data logging.
Key Features
- 1U single-wide form factor, up to 4 modules per mainframe
- Maximum 100W sinking power per module
- 60V maximum voltage, 20A maximum current
- Advanced operating modes: CV (Constant Voltage), CC (Constant Current), CR (Constant Resistance), CP (Constant Power)
- Arbitrary waveform generation for complex load profiling
- High-speed synchronized digitization of voltage and current measurements
- USB, LAN, and GPIB interfaces standard
- N6700C-style user interface
Applications
- DC power conversion system testing and validation
- Power supply output verification across multiple channels
- Battery and energy storage device testing
- Complex load profile emulation and evaluation
Specifications
| Maximum Voltage | 60V |
| Maximum Power | 100W |
| Type | Load Module |
| Series | N6700 Series |
