Keysight N3307A/UJ1 Electronic Load Module
Request a quote
Keysight N3307A/UJ1 is a 250W electronic load module with 0-30A and 0-150V range, featuring 8mm screw terminal connectors and constant current, voltage, and resistance modes.
Product details
| Model | N3307A/UJ1 |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview

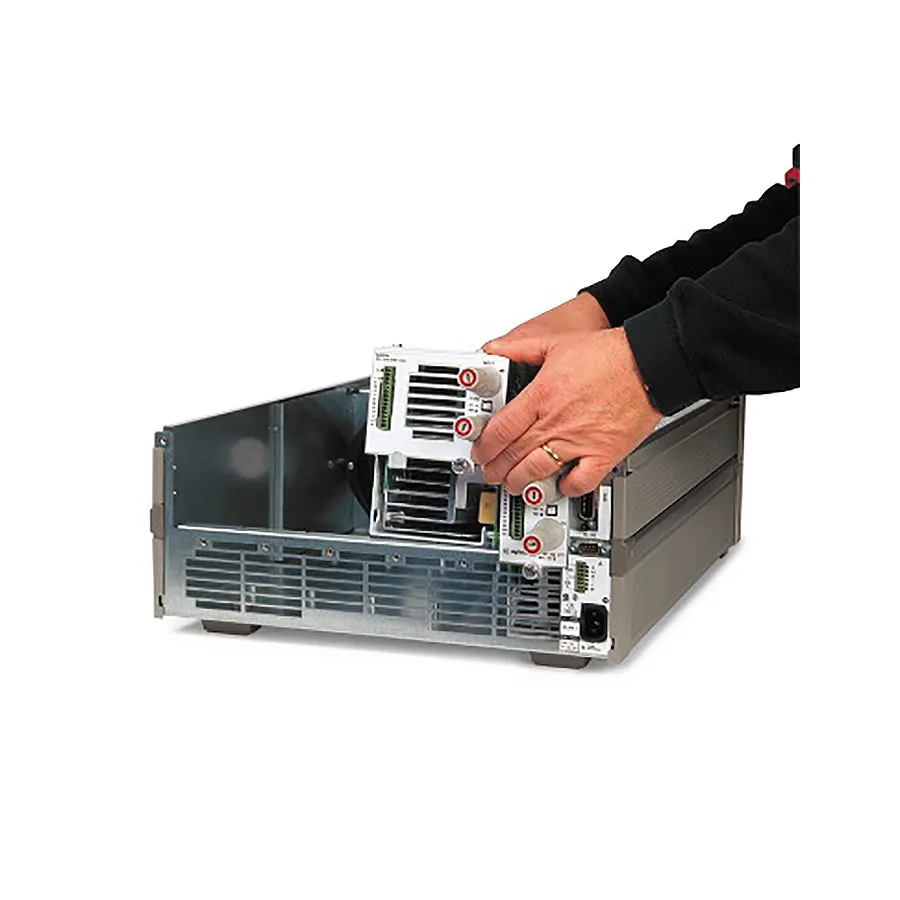

The Keysight N3307A/UJ1 is a 250W electronic load module with 8mm screw terminal connectors, designed for use in the N3300A or N3301A mainframe. It provides precise load simulation and measurement for testing power supplies, DC-to-DC converters, and batteries in automated test systems.
Key Features
- 250W maximum power (0-30A, 0-150V)
- 8mm screw terminal connectors
- Constant current, constant voltage, and constant resistance modes
- 0.1% programming accuracy with 0.05% measurement accuracy
- 16-bit voltage, current, and power measurement system
- Waveform digitization capabilities
- Single GPIB address control within mainframe
Applications
- Automated test equipment for power supply verification
- DC-to-DC converter testing and validation
- Battery testing and characterization
- Multi-channel simultaneous testing
- High-volume production test systems
Specifications
| Type | Load Module |
| Series | N3300 Series |
