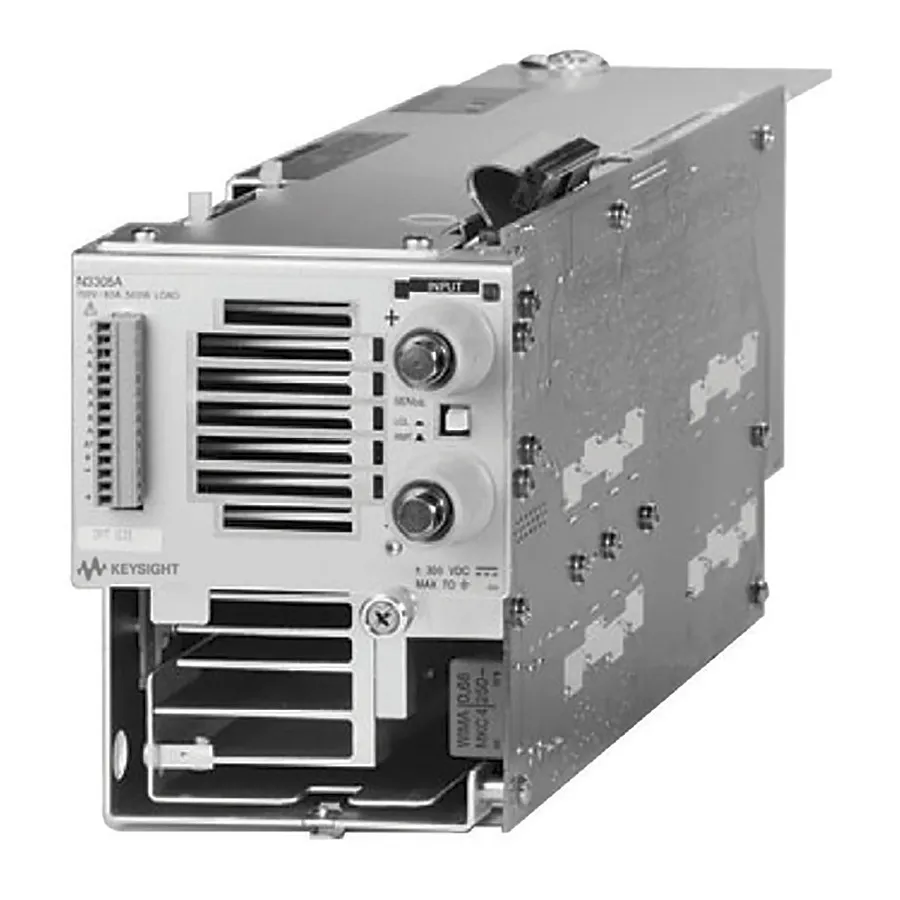

Keysight N3305A/UJ1 DC Electronic Load Module
Request a quote
Keysight N3305A/UJ1 is a 500W DC electronic load with 0-150V/60A rating, 0.1% accuracy, 8mm screw terminals, and requires two mainframe slots.
Product details
| Model | N3305A/UJ1 |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N3305A/UJ1 is a 500W DC electronic load module for the N3300 Series modular electronic load system. It features the UJ1 configuration with 8mm screw terminals and requires two slots in the mainframe. This module is ideal for testing higher-voltage power supplies and DC-DC converters in automated test equipment systems.
Key Features
- 500W power capacity with 0-60A/0-150V rating (requires 2 slots)
- Constant current, constant voltage, and constant resistance modes
- High-accuracy constant current: 0.1% + 7.5mA (low) / 0.1% + 15mA (high)
- High-accuracy constant voltage: 0.1% + 10mV (low) / 0.1% + 20mV (high)
- Resistance range: 0.033Ω to 2500Ω across four operating ranges
- 8mm screw terminal connector for robust connections
- Waveform digitization capability
Applications
- Testing multiple DC power supply outputs simultaneously
- High-voltage DC-DC converter verification
- Battery simulation and load testing
- Automated production test equipment
Specifications
| Type | Load Module |
| Series | N3300 Series |
