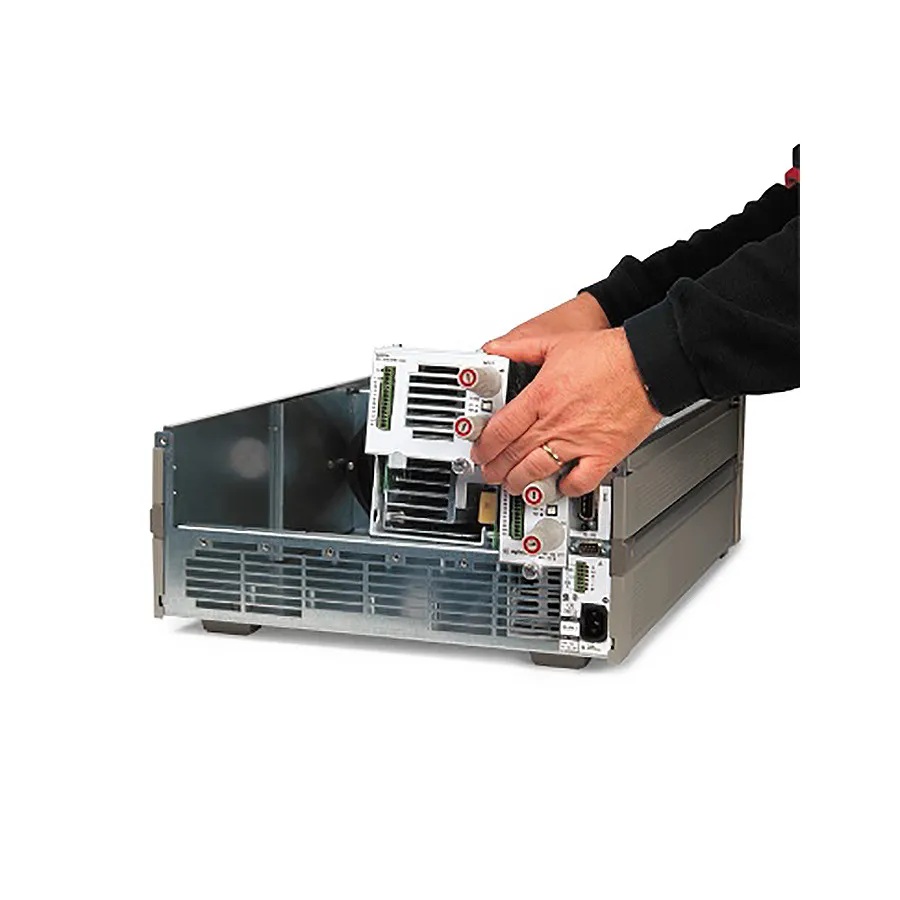

Keysight N3304A/J02 DC Electronic Load Module
Request a quote
Keysight N3304A/J02 is a 300W DC electronic load module with 0-60A/60V ratings, 0.1% accuracy, constant current/voltage/resistance modes, and GPIB control.
Product details
| Model | N3304A/J02 |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N3304A/J02 is a 300W DC electronic load module designed for the N3300A or N3301A electronic load mainframe. It provides fast, accurate testing capabilities for DC power supplies and DC-DC converters in automated test equipment systems.
Key Features
- 300W power rating with 0-60A current and 0-60V voltage range
- Constant current, constant voltage, and constant resistance operating modes
- High-accuracy programming: 0.1% + 7.5mA (low range) / 0.1% + 15mA (high range)
- Built-in 16-bit voltage and current measurement system
- Programmable slew rate and transient generator capability
- Single GPIB address control within N3300A or N3301A mainframe
- J02 configuration with front panel connections
Applications
- Testing multiple DC power supply outputs simultaneously
- Verification of DC-DC converter performance
- Battery load testing
- Automated test equipment for high-volume production
Specifications
| Type | Load Module |
| Series | N3300 Series |
