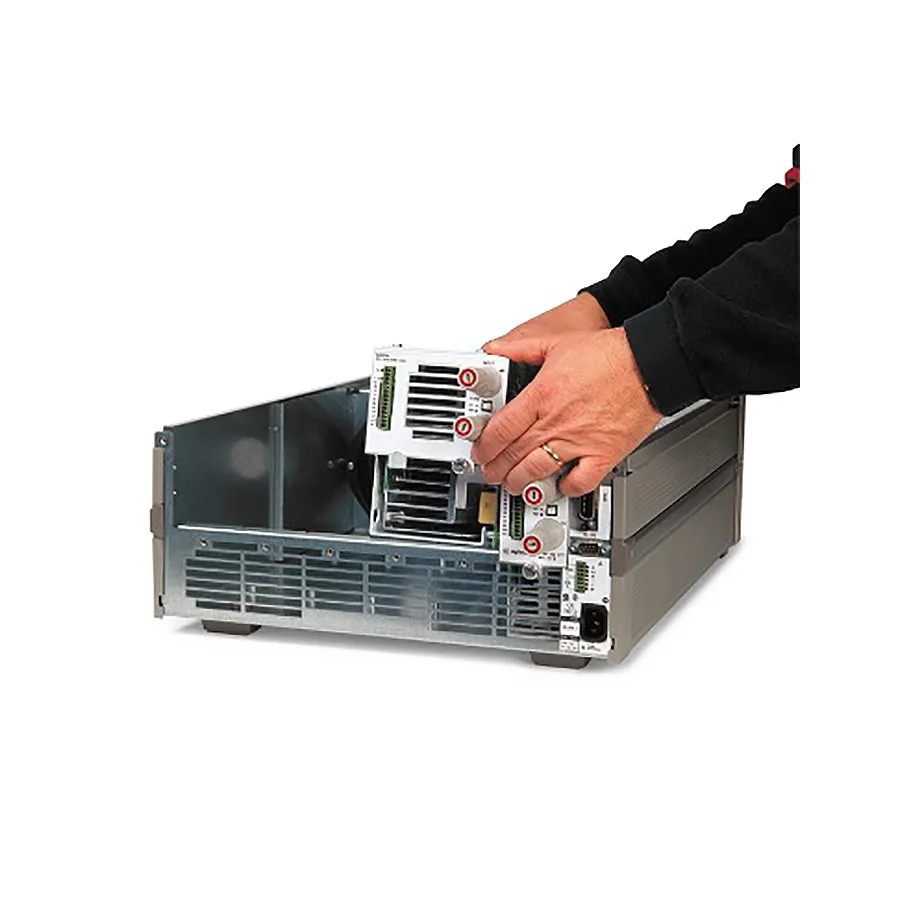

Keysight N3302A/UJ1 Electronic Load Module
Request a quote
Keysight N3302A/UJ1 is a 150W electronic load module with 8mm screw terminals for flexible power supply testing in N3300 series systems.
Product details
| Model | N3302A/UJ1 |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview
The Keysight N3302A/UJ1 is a 150W electronic load module configured with 8mm screw terminals for direct panel mounting in the N3300A or N3301A electronic load mainframes. Supporting 0–30A current and 0–60V voltage, the module provides fast and accurate operation for comprehensive power supply testing. The module supports constant current, constant voltage, and constant resistance operating modes for flexible load characterization.
Key Features
- 150W maximum power rating
- Current range: 0–30A
- Voltage range: 0–60V
- 8mm screw terminal configuration (UJ1)
- Fast and accurate programming
- Constant current, constant voltage, and constant resistance modes
- 16-bit voltage, current, and power measurement
- Waveform digitization capability
- Compatible with N3300A or N3301A mainframes
Applications
- Power supply testing and verification
- DC-DC converter characterization
- Battery and power source testing
- Automated test equipment (ATE) modules
- High-frequency waveform capture
Specifications
| Type | Load Module |
| Series | N3300 Series |
