Keysight N3300A/904 Electronic Load Mainframe
Request a quote
Keysight N3300A/904 is a 6-slot full-rack electronic load mainframe supporting up to 1800W total capacity for flexible ATE system configuration and simultaneous testing.
Product details
| Model | N3300A/904 |
| Manufacturer | Keysight |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview

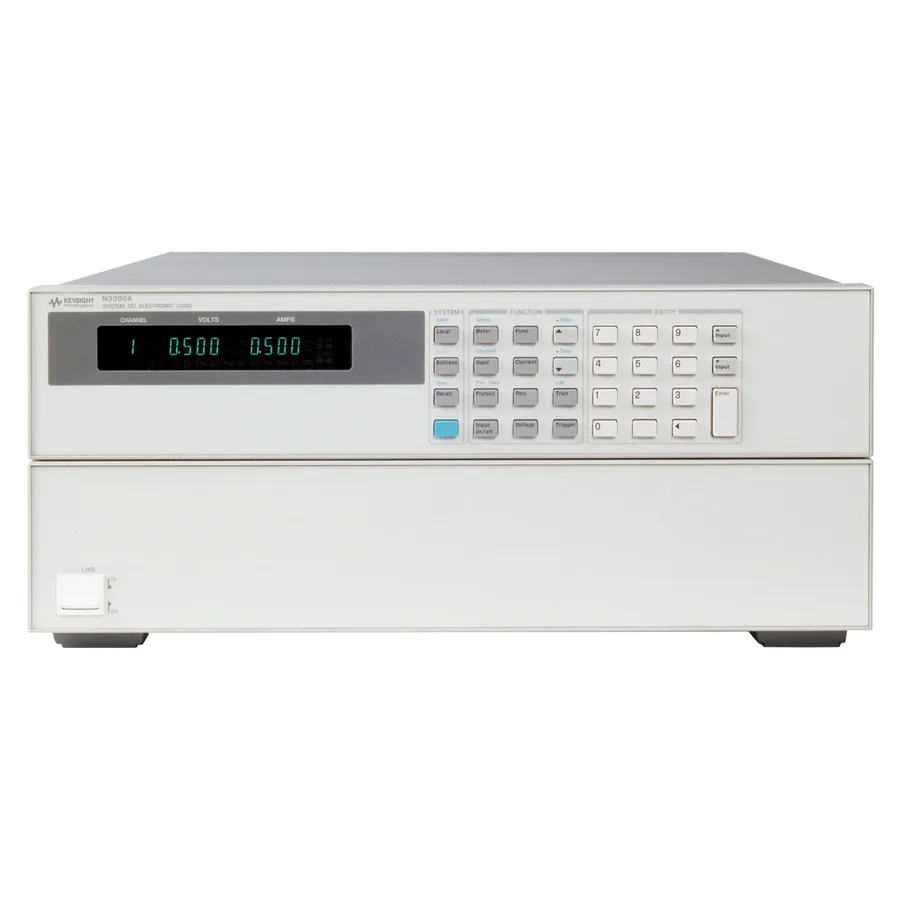

The Keysight N3300A/904 is a full-rack width electronic load mainframe designed for flexible test system configuration. With 6 slots, it accepts modular load modules ranging from 150W to 600W, enabling system capacity up to 1800W. The mainframe supports simultaneous testing of multiple power sources, making it ideal for comprehensive power supply and DC converter verification in automated test environments.
Key Features
- 6-slot full-rack width mainframe
- Accepts combinations of N330xA load modules (150W to 600W each)
- Total system capacity up to 1800W
- Constant current, constant voltage, and constant resistance operating modes
- Built-in transient generator for dynamic testing
- 16-bit simultaneous voltage and current measurement
- Stable operation down to 0V
- Fast command processing and settling times
- Interfaces: analog, RS232, and GPIB
- Includes 240V power cord for US/Canada
Applications
- Automated test equipment (ATE) systems for power supply verification
- DC-to-DC converter testing and characterization
- Battery testing and performance evaluation
- Simultaneous testing of multiple power sources
Specifications
| Type | Mainframe |
| Series | N3300 Series |
