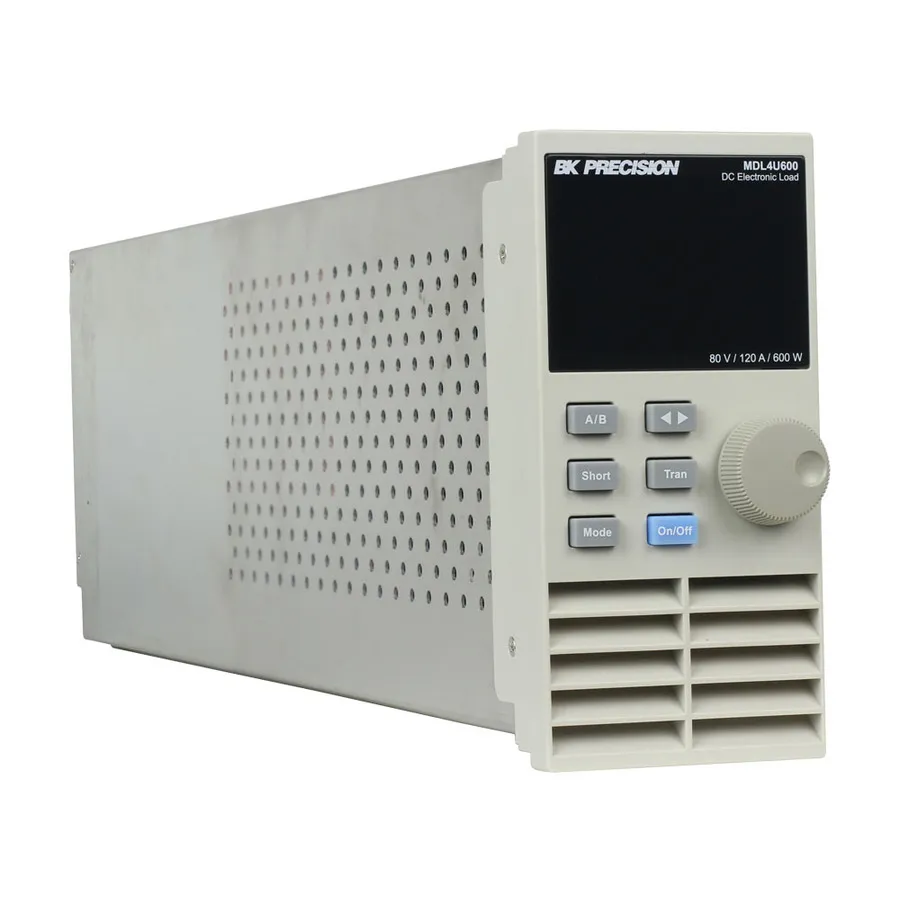

B&K Precision MDL4U600 DC Electronic Load Module
Request a quote
B&K Precision MDL4U600 is a single-channel 80V/120A/600W DC electronic load module with VFD display, 16-bit measurement resolution, and remote voltage sensing for power supply testing.
Product details
| Model | MDL4U600 |
| Manufacturer | B&K Precision |
| Category | Modular Electronic Loads |
| Availability | Made to order |
Description
Overview
The B&K Precision MDL4U600 is a single-channel DC electronic load module with 80V/120A/600W capacity, designed as part of the MDL4U Series modular programmable electronic load system. It operates in conjunction with the MDL4U001 mainframe and is used for testing power supplies, batteries, fuel cells, and photovoltaic arrays with DSP-based load simulation and realistic loading behavior.
Key Features
- 80V/120A/600W single-channel capacity with bright VFD display
- Operates in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) modes
- 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA) with remote voltage sensing
- Transient mode up to 25 kHz with adjustable slew rate in CC mode
- Standard LAN, GPIB, USB, and RS-232 interfaces with USBTMC/SCPI protocol support
- Synchronous load on/off function and short circuit test simulation
- OVP/OCP/OPP/OTP and reverse voltage protection
- Operate identical modules in parallel for high current applications
- 4U height form factor (3.2" × 6.7" × 22.6")
Applications
- Testing multi-output AC/DC power supplies
- Battery and fuel cell characterization
- Photovoltaic array testing
Included Accessories
- Certificate of calibration
Specifications
| Type | Load Module |
| Maximum Power | 600 W |
| Maximum Voltage | 80 V |
| Maximum Current | 120 |
| Series | MDL4U Series |
