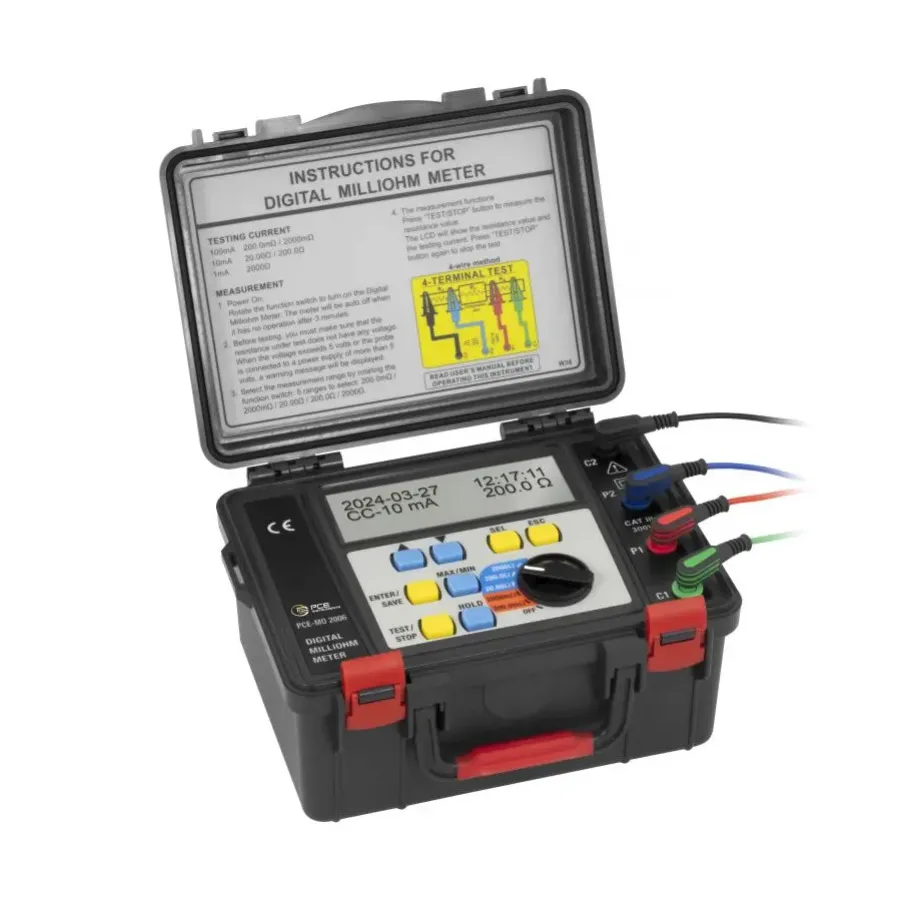

PCE Instruments PCE-MO 2006 Milliohmmeter

Overview

The PCE-MO 2006 is a compact precision milliohmmeter designed for accurate resistance measurements in harsh industrial environments. Using a 4-wire measuring method with separate current and voltage connections, it minimizes measurement errors and enables reliable testing from 0 mΩ to 2000 Ω across five selectable ranges. The device features a robust IP65-rated housing, a 5.1-inch backlit LCD display, and internal memory for storing up to 200 measured values with date and time stamps.

Key Features

• 4-wire measuring method with separate current and voltage connections for minimal error
• 5 selectable measuring ranges: 0 mΩ–2000 Ω
• 5.1-inch LCD display with backlight for easy readability in dim conditions
• MAX/MIN/HOLD functions for capturing critical measurements
• Internal memory stores up to 200 measured values with date and time
• Integrated fuse protection (200 mA/600 V) with three selectable test currents
• CAT III 300V safety rating for reliable use in electrical environments
• IP65-rated housing (with closed cover) for rugged industrial use
• Automatic switch-off function to preserve battery life
• Low battery indicator for operational reliability

Applications

• Industrial resistance measurement and troubleshooting
• Continuity testing and fault detection
• Quality assurance and process control
• Electrical system diagnostics

Included Accessories

• 4 test leads
• Carrying strap
• 8 LR44 1.5 V batteries
• Operating instructions
