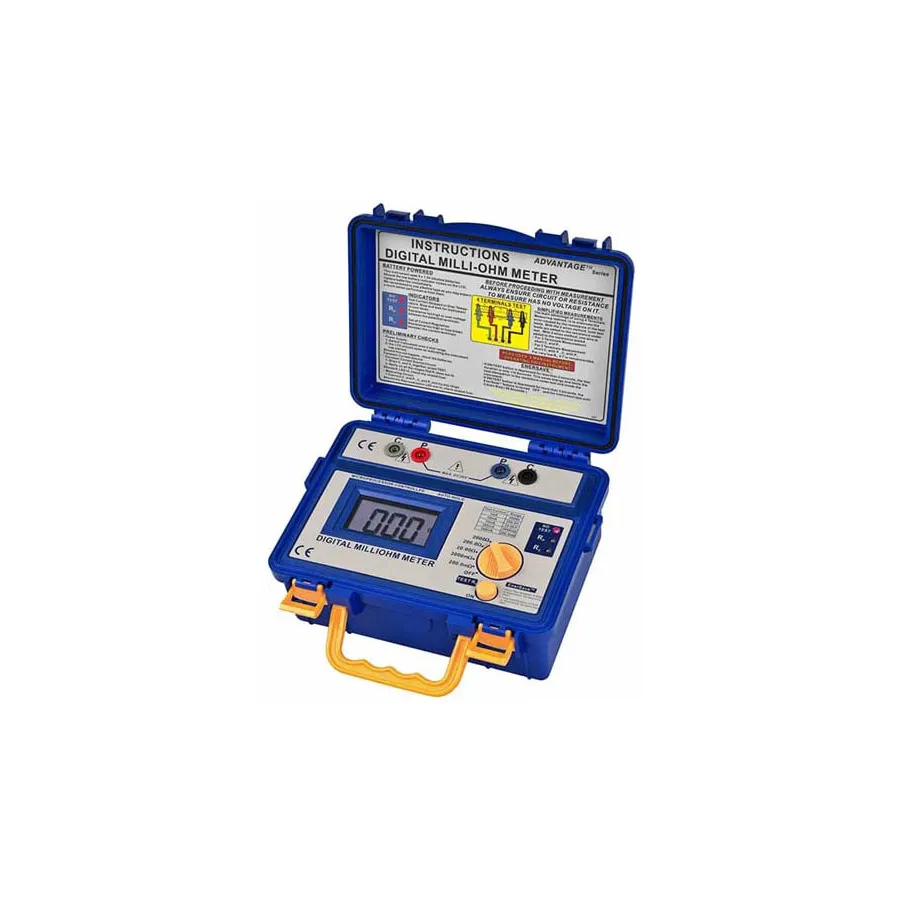

PCE Instruments PCE-MO 2002 Milliohmmeter

Overview

The PCE Instruments PCE-MO 2002 is a digital milliohmmeter designed for precise resistance measurements in the milliohm to kiloohm range. Featuring a four-conductor measurement system with alligator clips, this robust device measures from 100 microohms up to 2000 ohms and is housed in a ruggedized, waterproof carrying case. The PCE-MO 2002 applies a constant current to the measured object and tests the resulting voltage drop, making it ideal for testing connections, continuity, and electrical contacts across industrial and domestic applications.

Key Features

• Measuring ranges: 0-200 mΩ, 0-2000 mΩ, 0-20 Ω, 0-200 Ω, 0-2000 Ω
• Resolution: 100 μΩ, 1 mΩ, 10 mΩ, 100 mΩ, 1 Ω (depending on range)
• Test current: 1 mA, 10 mA, or 100 mA (automatically selected per range)
• Four-conductor measurement system with alligator clips
• Elimination of measurement resistance in conducts
• 3½-digit LCD display with clear readability
• Auto-Hold and Auto-Off functions
• Surge fuse in measurement inputs
• LED indication for Rp, Rc, and temperature limit exceeded
• Ruggedized and waterproof carrying case
• Battery powered: 8 x 1.5V AA batteries
• Manufacturer calibrated; optional ISO certificate available
• Safety rating: IEC-1010-1; CAT IV 20V

Applications

• Testing resistance in coils, generators, transformers, and relays
• Measuring binding energy in planes, rail systems, and boats
• Continuity testing in circular systems (ring networks)
• Testing compression elements in airlines and testing works
• Electrical contact and connector testing
• Industrial and domestic electrical installation testing
• Maintenance of electrical cabinets and fuse/connector inspection

Included Accessories

• Testing cables set
• Supporting strap
• 8 x 1.5V AA batteries
• Instruction manual
