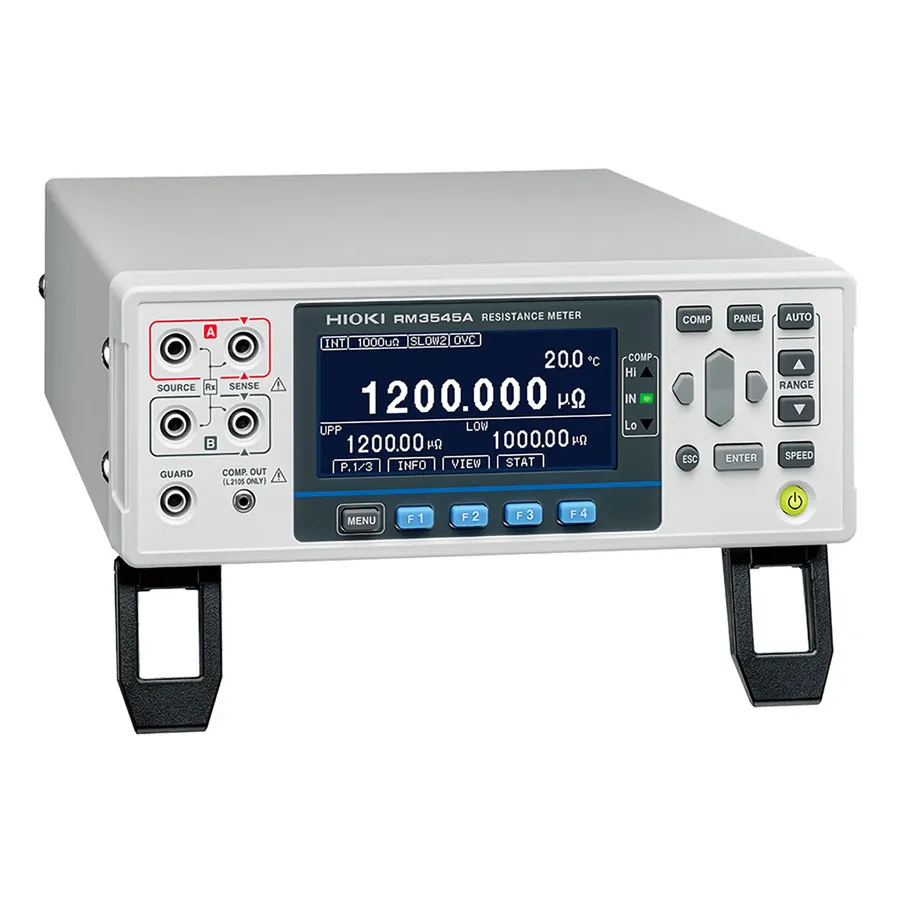

Hioki RM3545A-2 KIT Resistance Meter
Request a quote
Hioki RM3545A-2 KIT precision resistance meter with 0.045% accuracy, 1 nΩ resolution, includes clip-type lead and temperature sensor.
Product details
| Model | RM3545A-2 KIT |
| Manufacturer | Hioki |
| Category | Milliohmmeters & Microohmmeters |
| Availability | Made to order |
Description
Overview
The Hioki RM3545A-2 KIT is a high-precision resistance meter with multiplexer unit support for automated production testing. It includes a clip-type lead (L2101) and temperature sensor (Z2001), allowing measurements from single points or integrated into systems with up to two Z3003 multiplexer units for multi-channel testing.
Key Features
- 0.045% basic accuracy with 1 nΩ maximum resolution
- Measures from 1 nΩ to 1200 MΩ
- Maximum testing current of 1 A
- Offset Voltage Compensation (OVC) function corrects for electromagnetic force (EMF) effects
- Temperature correction and measurement functions with ±0.5°C precision
- High path resistance tolerance for automatic test system integration
- Fast measurement speed (21 ms) for production efficiency
- LAN interface for data exchange with computers and PLCs
- Support for up to two optional Z3003 Multiplexer Units for multi-channel testing
- Advanced contact-check and comparator functions
Applications
- Single-point and multi-channel weld quality control
- Contact resistance measurement of connectors, relays, and switches
- Motor and transformer winding resistance testing
- Automated production line quality assurance testing
- Component resistance verification across multiple test points
Included Accessories
- Clip-type lead (L2101)
- Temperature sensor (Z2001)
- Power cord
- EXT I/O connector and cover
- Spare fuse (F1.6AH 250 V)
- Operating manual and guides
Specifications
| Series | RM354x Series |
