Hioki RM3545A-1 KIT Resistance Meter
Request a quote
Hioki RM3545A-1 KIT precision resistance meter with 0.045% accuracy, 1 nΩ resolution, includes clip-type lead and temperature sensor.
Product details
| Model | RM3545A-1 KIT |
| Manufacturer | Hioki |
| Category | Milliohmmeters & Microohmmeters |
| Availability | Made to order |
Description
Overview

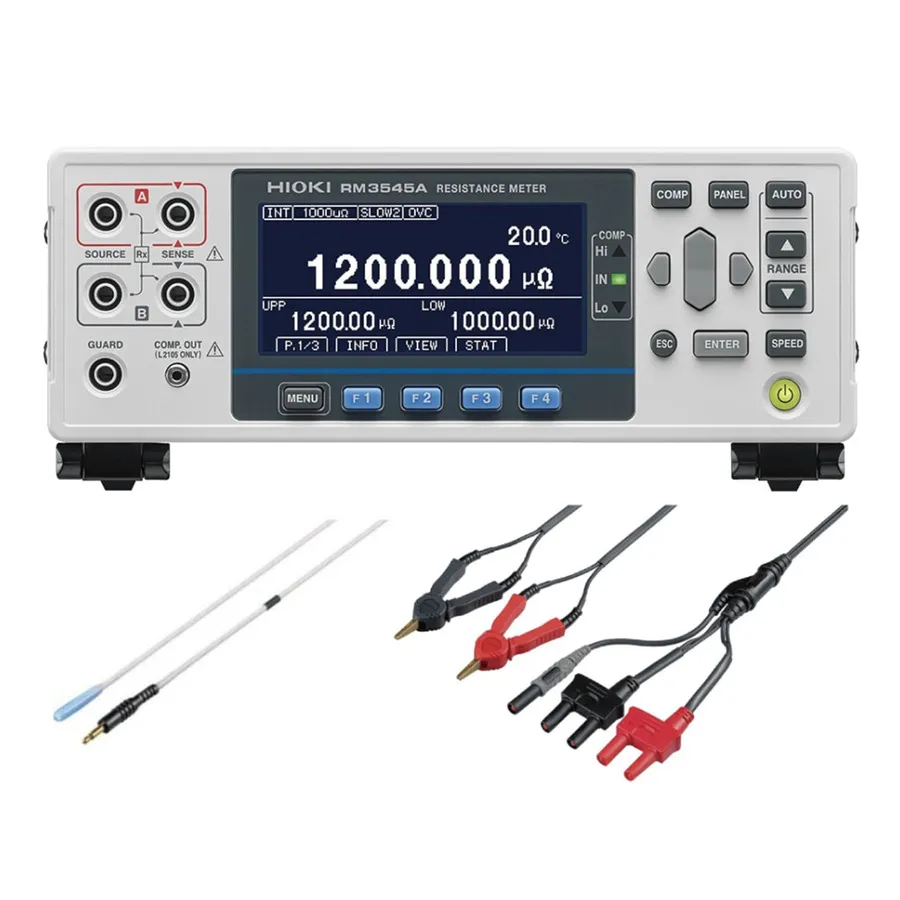

The Hioki RM3545A-1 KIT is a precision resistance meter for measuring very low resistance values with exceptional accuracy. Designed for quality control in manufacturing, it includes a clip-type lead (L2101) and temperature sensor (Z2001). The instrument excels at measuring weld quality, contact resistance of relays and connectors, and motor and transformer winding resistance.
Key Features
- 0.045% basic accuracy with 1 nΩ maximum resolution
- Measures from 1 nΩ to 1200 MΩ
- Maximum testing current of 1 A
- Offset Voltage Compensation (OVC) function corrects for electromagnetic force (EMF) effects
- Temperature correction function converts readings to user-specified reference temperature
- Temperature measurement with ±0.5°C precision using included Z2001 sensor
- High path resistance tolerance for automatic test system integration
- Advanced contact-check and comparator functions
- GPIB communications interface
- Rapid measurement speed (pass/fail decisions in 2.0 ms)
Applications
- Weld quality monitoring and production traceability
- Contact resistance measurement of power relays and switches
- Resistance testing of connectors and signal relays
- Motor and transformer winding resistance measurement
- Low-power resistance testing per IEC 60512-2 standards
Included Accessories
- Clip-type lead (L2101)
- Temperature sensor (Z2001)
- Power cord
- EXT I/O connector and cover
- Spare fuse (F1.6AH 250 V)
- Operating manual and guides
Specifications
| Series | RM354x Series |
