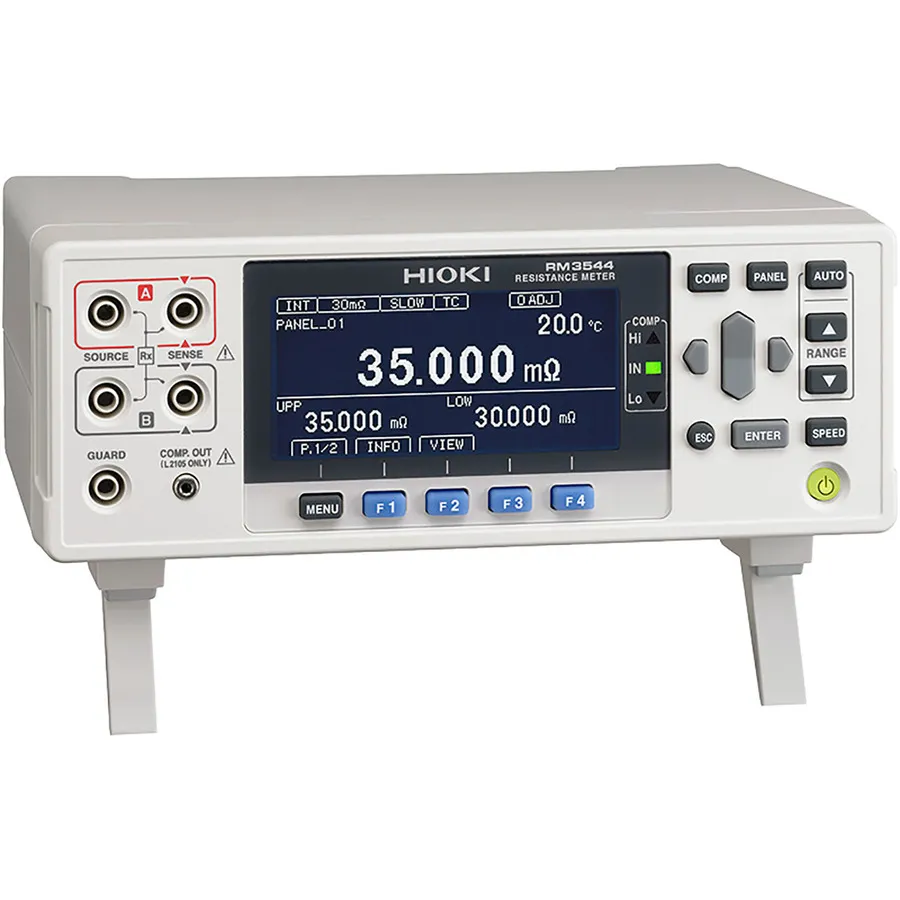

Hioki RM3544-01 Resistance Meter

Overview

The Hioki RM3544-01 is a precision DC resistance meter designed for production line automation and manual measurement of winding resistance in motors and transformers, as well as contact resistance in power relays, switches, and connectors. With 0.02% basic accuracy and 1 μΩ resolution, the instrument can measure resistance from 0.000 mΩ to 3.5 MΩ using a testing current up to 300 mA. Built-in interfaces include EXT I/O, RS-232C, and USB for integration with automated test systems.

Key Features

• 0.02% basic accuracy with 1 μΩ maximum resolution
• Measures from 0.000 mΩ to 3.5 MΩ with up to 300 mA testing current
• Built-in EXT I/O, RS-232C, and USB interfaces for automated systems
• Guarded terminals reduce noise effects on measured values
• EXT I/O interface supports both NPN and PNP for flexible production line integration
• Optional LED Comparator Attachment provides audible and visual pass/fail indication
• Compact design is 25% smaller than previous generation (HIOKI 3540)
• 3-year product warranty

Applications

• Motor and transformer winding resistance measurement
• Power relay, switch, and connector contact resistance testing
• Automated production line quality control
• Manual production line measurements

Included Accessories

• Power cord
• Clip type lead L2101
• Male EXT I/O connector
• Instruction manual
• Application disc
• USB cable (A-to-B type)
• Spare fuse
