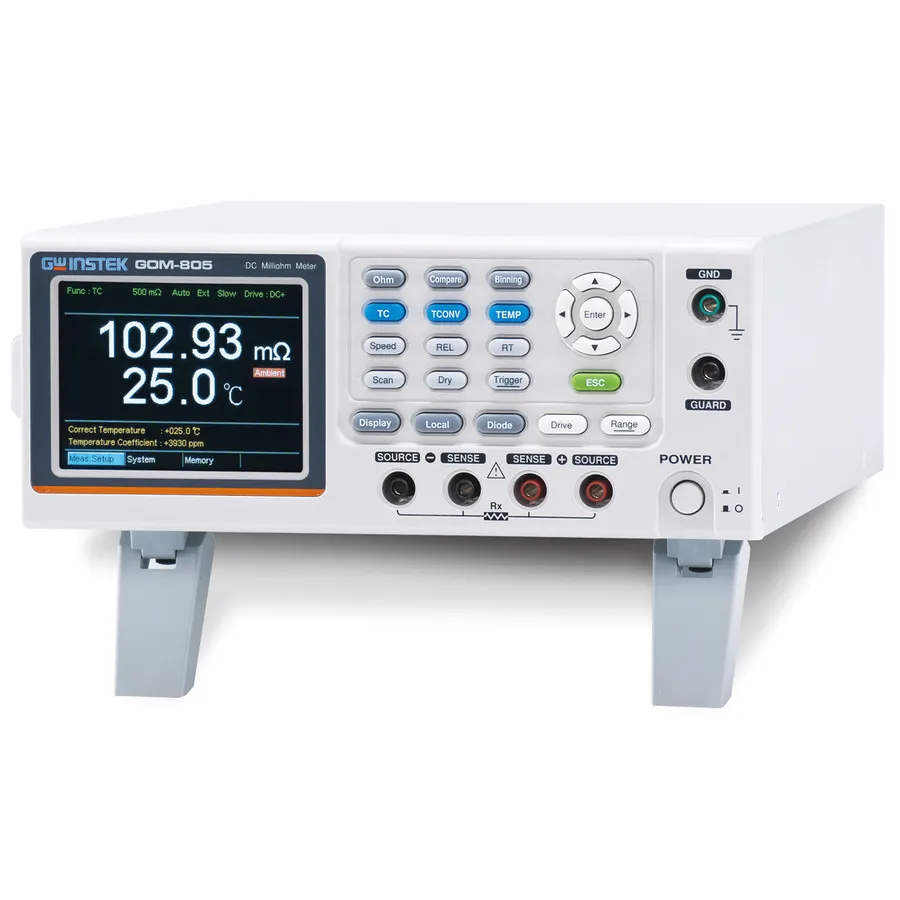

GW Instek GOM-805 Benchtop DC Milliohmmeter

Overview

The GW Instek GOM-805 is an advanced benchtop DC milliohmmeter featuring a 3.5-inch TFT LCD display with 50,000 count resolution. Building on the capabilities of the GOM-804, the GOM-805 includes additional features such as dry circuit testing and multiple drive modes for measuring a broader range of low-resistance applications and materials.

Key Features

• 50,000 count, 3.5" TFT LCD display (320 x 240 pixels)
• High accuracy of 0.05% precision
• 1 Amp test current with 1 µΩ resolution
• Fast measurement: 60 readings per second
• Four-wire measurement with Ground/Guard terminals
• Temperature compensation measurement with probe port
• Dry Circuit test capability (GOM-805 only)
• Multiple drive modes: DC+, DC-, Pulsed, PWM (GOM-805)
• Independent function and direction keys
• 20 sets of panel setting memory
• Multiple interface options: USB device, RS-232C, Handler/Scan/Ext I/O, GPIB (standard)

Applications

• Contact resistance measurement and testing
• Measurement of inductive component resistance
• Connector and contact surface quality assurance
• Temperature-sensitive material testing
• Production line quality control and sorting
• Manufacturing testing of low-resistance components
• Research and development applications

Included Accessories

• User Manual on CD
• Quick Start Guide
• Programming Manual
• Power Cord
• Output terminal cover
• Type A-B USB Cable (GTL-246)
• Analog connector plug set (GTL-308)
• Chassis connection wire
