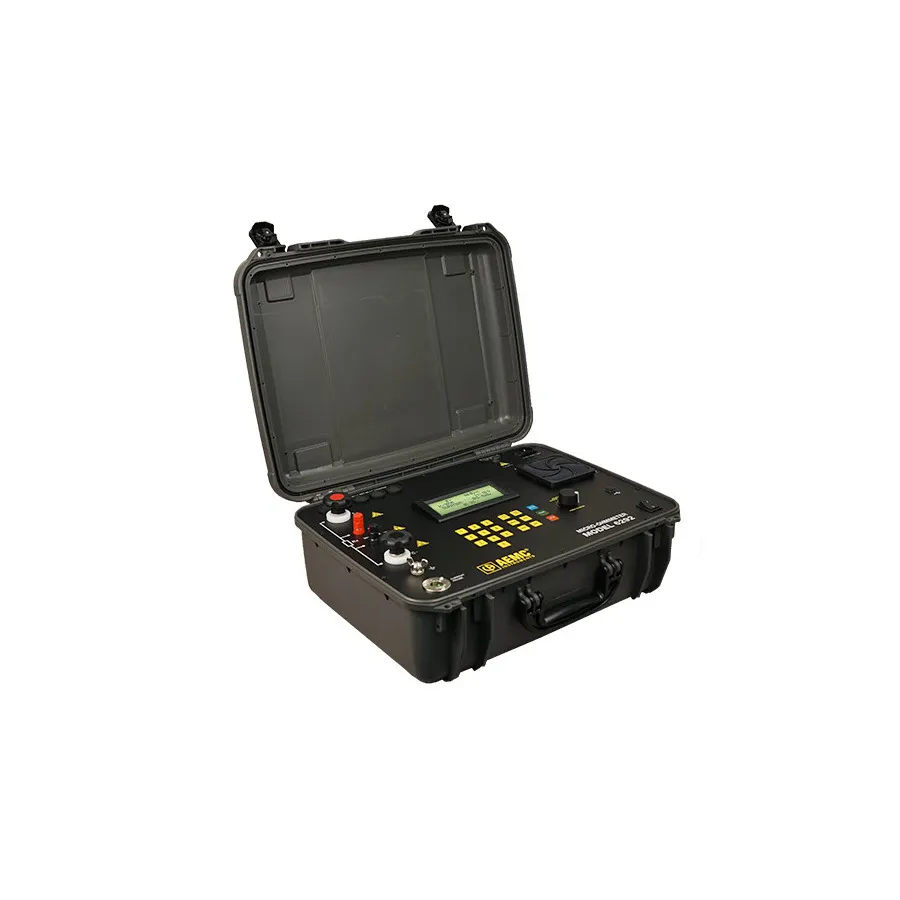

AEMC 6292 Micro-Ohmmeter
Request a quote
AEMC 6292 is a high-current portable micro-ohmmeter with adjustable test currents up to 200A, measuring resistances from 0.1 µΩ to 1Ω with 0.1 µΩ resolution.
Product details
| Model | 6292 |
| Manufacturer | AEMC |
| Category | Milliohmmeters & Microohmmeters |
| Availability | Made to order |
Description
Overview
The AEMC Model 6292 is a high-current, microprocessor-controlled micro-ohmmeter designed for field measurements in electrical substations. It accurately measures very low contact resistances of high-voltage circuit breakers, switches, and busbars with test currents up to 200A. The instrument features optimized filters and protection against electrical hazards typical in substation environments.
Key Features
- Adjustable test currents from 5A to 200A
- Measurement range: 0.1 µΩ to 1 Ω
- Resolution: 0.1 µΩ (up to 4.5-digit display)
- Programmable test duration from 5 to 120 seconds
- True DC high output with ripple less than 2% of full range
- Cooling system for sequential testing
- Backlit alphanumeric display
- Measures objects with both sides grounded
- Data storage: up to 8,000 test results
- Direct printout via DataView® software and PC
- Ground test capability with optional current probe
- Rugged, water-resistant case
Included Accessories
- Extra-large tool bag
- Two 25-foot Kelvin clips (200A - Hippo type)
- Ground lead with clamp (green)
- 5-foot USB cable
- 110V US power cord
- Quick Start Guide
- USB thumb drive with DataView® software and user manual
Specifications
| Alternate Product Number | 2129.83 |
| Series | 6200 Series |
