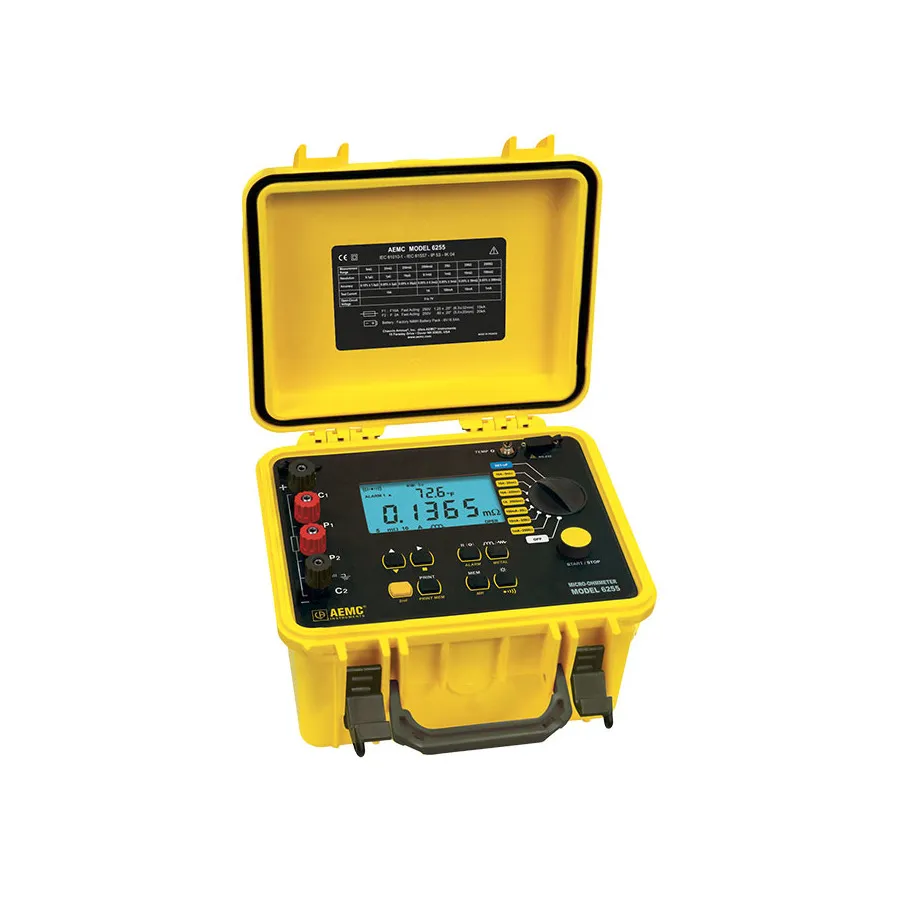

AEMC 6255 Micro-Ohmmeter

Overview

The AEMC 6255 is a 10A micro-ohmmeter designed for both plant maintenance and field use. Utilizing the four-lead Kelvin method, it delivers accuracy within 0.05% and can test continuously at 10A for up to 60 minutes. The instrument conducts tests on both resistive and inductive materials with operator selection directly from the front panel.

Key Features

• Measures from 1 µOhm (0.1 µOhm resolution) to 2500 Ohms
• Test current selection: 1 mA, 10 mA, 100 mA, 1 A, and 10 A
• Three test modes: resistive (instantaneous), inductive (continuous), and auto (repetitive)
• Stores up to 1500 test results with two programmable alarm set points
• Automatic and manual temperature correction
• Large multi-line electroluminescent display
• Local or remote test setup and control
• Internal rechargeable batteries support 5,000–10,000 10A tests
• Rugged, double-insulated watertight case with IP64 rating
• Includes DataView software for data retrieval, analysis, and report generation

Included Accessories

• Extra large tool bag
• Two 10 ft Kelvin Clips (10A – Hippo connectors)
• Two 10 ft Kelvin Probes (1A – Spring Loaded)
• RS-232 DB9 null modem cable (6 ft)
• RS-232 to USB adapter
• US 115V power cord
• NiMH rechargeable 6V battery pack
• Quick Start guide
• USB thumb drive with DataView software and user manual
