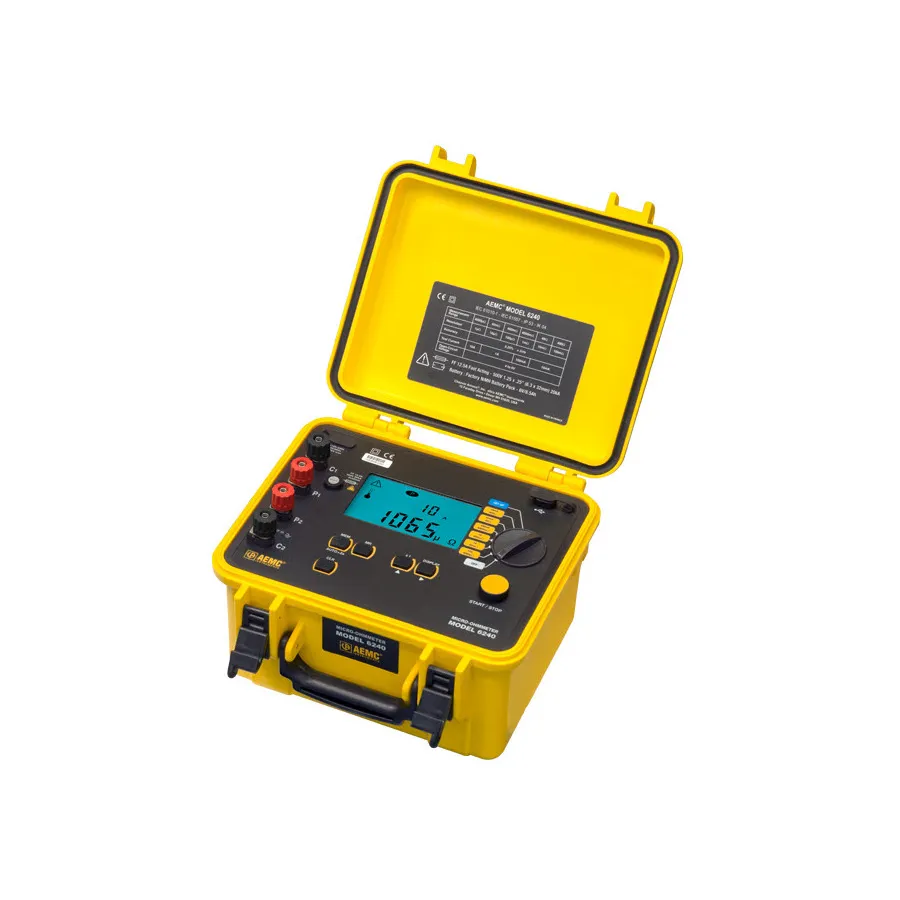

AEMC 6240 Micro-Ohmmeter
Request a quote
AEMC 6240 micro-ohmmeter with 10A test current, 0.25% accuracy, Kelvin measurement method, and range from 1µohm to 400ohms for plant maintenance and field testing.
Product details
| Model | 6240 w/Kelvin Clips & Probes |
| Manufacturer | AEMC |
| Category | Milliohmmeters & Microohmmeters |
| Availability | Made to order |
Description
Overview
The AEMC 6240 is a rugged, portable micro-ohmmeter designed for plant maintenance and field use. It employs a four-lead Kelvin method to accurately measure very low resistances from 1 micro-ohm to 400 ohms with a basic accuracy of ±0.25%. Selectable test currents of 10A, 1A, 100mA, and 10mA allow flexible testing of both resistive and inductive materials.
Key Features
- Measures low resistance from 1 micro-ohm to 400 ohms
- Four-terminal Kelvin method eliminates test lead resistance for accurate readings
- Basic accuracy of ±0.25%
- Maximum resolution of 1 micro-ohm
- Six selectable resistance ranges
- Selectable test currents: 10A, 1A, 100mA, and 10mA
- Polarity reversal function
- Data storage: up to 99 measurements with USB export
- Overload and input fuse protection
- Rechargeable NiMH battery with internal charger
- Large backlit display with automatic decimal point
- IP54 splash-resistant enclosure
- Includes DataView® software for data analysis and reporting
Applications
- Cable and connector resistance testing
- Contact and joint resistance measurement
- Transformer and motor winding testing
- Ground and bonding measurement
- Battery and power supply testing
Included Accessories
- Tool bag
- Optical USB cable
- Power cord (US 115V)
- Spare fuses (2x 12.5A)
- 10 ft Kelvin Clips (10A)
- 10 ft Kelvin Probes (1A Spring loaded)
- NiMH rechargeable battery pack
- USB drive with DataView® software and manual
Specifications
| Alternate Product Number | 2129.80, 6240 |
| Series | 6200 Series |
