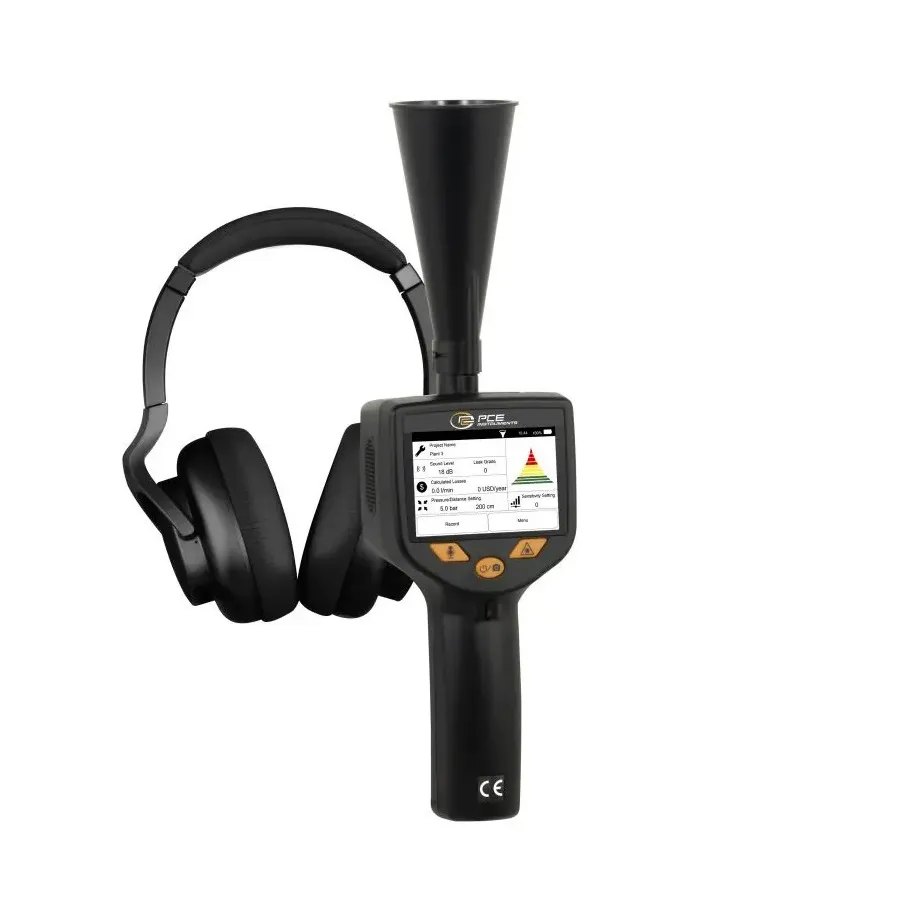

PCE Instruments PCE-LDC 20 Leak Detector
Request a quote
PCE Instruments PCE-LDC 20 battery-operated leak detector with colour touch display identifies leaks in pressurized gas systems, photographs leaks, records voice memos, and estimates gas escape vol...
Product details
| Model | PCE-LDC 20 |
| Manufacturer | PCE Instruments |
| Category | Leakage Current Testers |
| Availability | Made to order |
Description
Overview
The PCE-LDC 20 is a battery-operated ultrasonic leak detector designed for gas pressure systems. It detects small leaks in pressurized equipment by capturing ultrasonic frequencies and converting them to audible sounds, while also documenting findings with photography and voice recording capabilities. Early leak detection can reduce energy costs by up to 30%.
Key Features
- Working frequency: 38-42 kHz
- Battery-operated handheld device
- Colour touch display for intuitive control
- Wireless headphones with Bluetooth connectivity or 3.5 mm jack
- Photograph leaks for documentation
- Voice memo recording for notes
- Calculates estimated gas escape volume
- Measurement data recording and analysis via software
- Calibration certificate included
Applications
- Compressed air system leak detection
- Non-explosive gas pressure system inspection
- Energy efficiency assessment
- Equipment maintenance and diagnostics
- Documentation of leak locations and severity
Included Accessories
- Calibration certificate
- Software for data analysis
- USB-C cable
- Wireless headphones
- Micro USB cable
- 5 V power supply unit with adapters
- Operating instructions
Specifications
| Display Type | LCD |
| IO Interface | USB-C, 3.5 mm jack, Bluetooth |
| Power Source | 5V DC 3 A (via USB-C) |
| Series | LDC Series |
