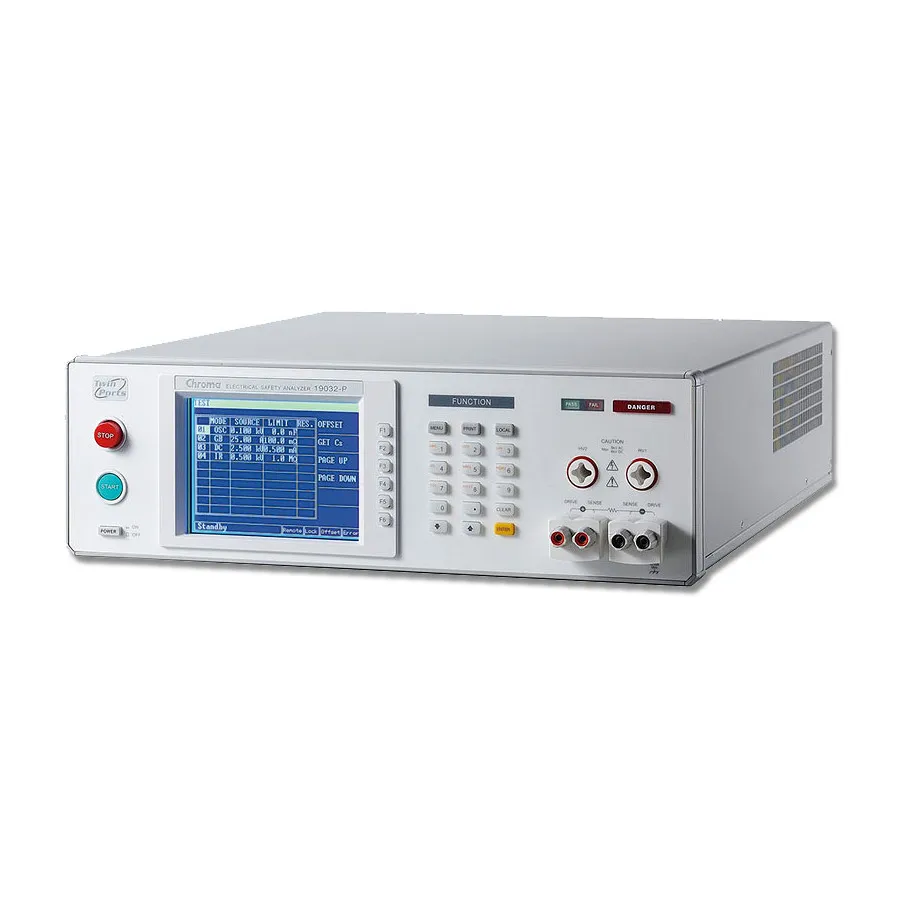

Chroma 19032 Electrical Safety Analyzer
Request a quote
Chroma 19032 is a 5-in-1 production safety analyzer combining AC/DC hipot, insulation resistance, ground bond, and leakage current testing in a single unit.
Product details
| Model | 19032 |
| Manufacturer | Chroma |
| Category | Leakage Current Testers |
| Availability | Made to order |
Description
Overview
The Chroma 19032 is a comprehensive 5-in-1 electrical safety analyzer designed for production testing of electronic products. It integrates AC/DC hipot, insulation resistance, ground bond, and leakage current (optional) testing functions, allowing manufacturers to perform multiple safety tests with a single instrument. The Twin-Port function enables simultaneous testing of two devices, significantly reducing test time on production lines.
Key Features
- Five test functions: AC Hipot, DC Hipot, Insulation Resistance, Ground Bond, and Leakage Current (optional)
- AC output to 5 kV and DC output to 6 kV
- Insulation resistance measurement up to 50 Gigaohm at 1000V DC
- Ground bond testing up to 30A (optionally 40A or 60A)
- Twin-Port function for simultaneous dual-device testing
- Open/Short Check (OSC) and arc/flashover detection
- Storage of 50 test setups with 100 steps per setup
- Optional dynamic leakage current auto-scanning (A190305/A190306/A190307/A190308)
- Password-protected front panel lockout
- RS-232 interface standard, optional GPIB and barcode scanner support
- Compliance certifications: UL, TUV, CE mark
Applications
- House appliances and consumer electronics
- Information technology products and peripherals
- Medical device and equipment testing
- Laboratory and test equipment qualification
- EMI filter and power supply testing
- Electric vehicle component safety verification
- Solar PV inverter and renewable energy equipment
Specifications
| Series | 19032 Series |
