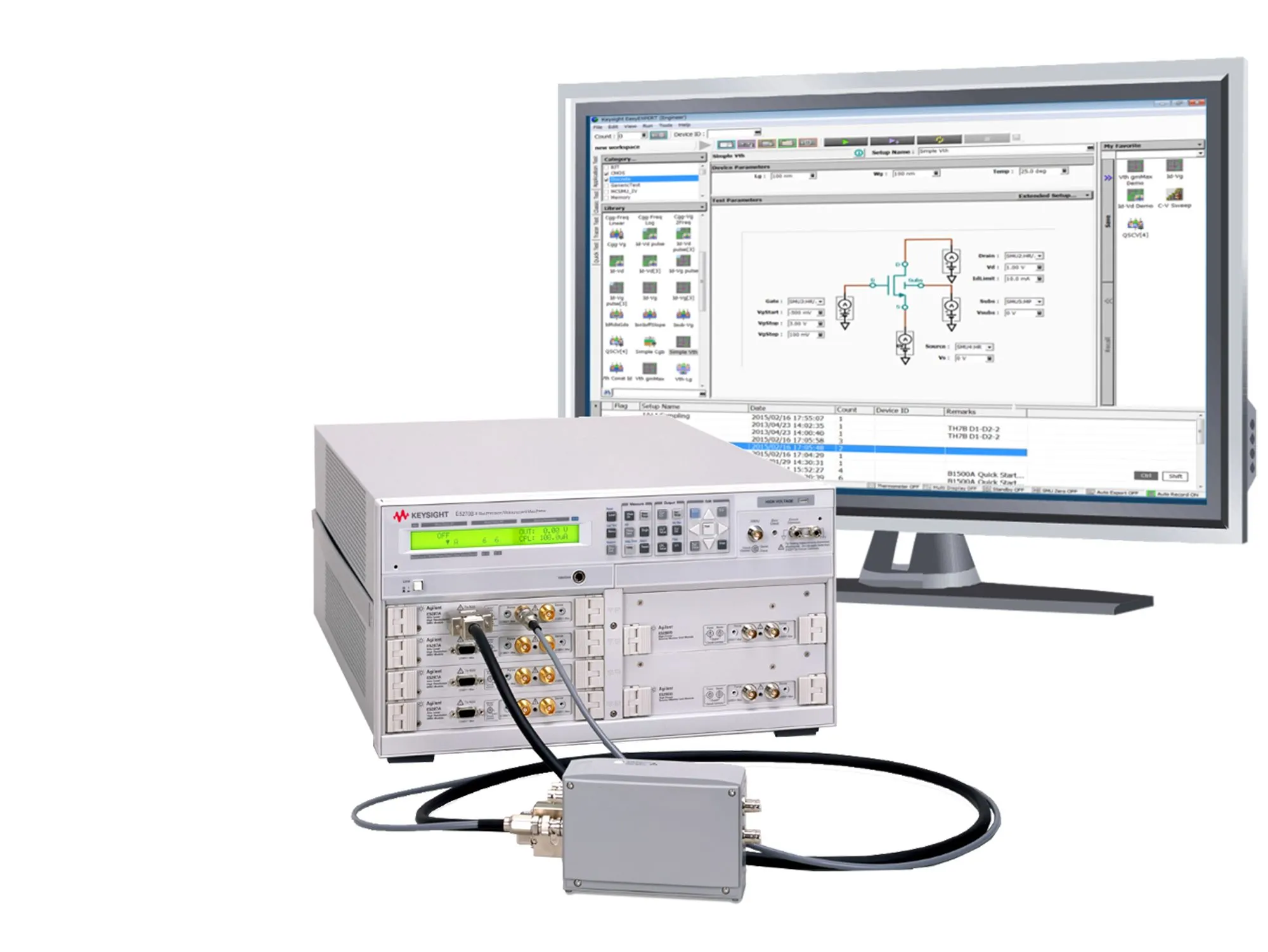

Keysight E5270B Precision IV Analyzer

Overview

The Keysight E5270B Precision IV Analyzer provides complete current-voltage characterization for materials, devices, semiconductors, and electronic components. With modular architecture supporting up to eight slots, it delivers industry-leading current measurement performance as low as 0.1 femtoamperes, enabling precise characterization of devices across a wide range of specifications.

Key Features

• Current measurement resolution as low as 0.1 fA with high-resolution SMU modules
• Measurement range of 0.1 fA to 1 A for current and 0.5 µV to 200 V for voltage
• Spot and sweep measurement capabilities, including pulse measurements with minimum 500 µs pulse width
• Configurable and upgradable modules: High Resolution SMU (HRSMU), Medium Power SMU (MPSMU), and High Power SMU (HPSMU)
• Active ground unit (GNDU) in mainframe capable of forcing 0V and sinking up to 4A
• EasyEXPERT group+ GUI-based characterization software with automated analysis and data export
• High-resolution and high-speed analog-to-digital converters (ADCs) available to all modules
• Optional ASU (atto-sense and switch unit) for enhanced measurement resolution and SMU/AUX path switching

Applications

• Current-voltage characterization of materials and devices
• Semiconductor device testing and evaluation
• Active and passive component characterization
• Wafer-level testing with semiautomatic wafer prober integration
• System component SMU for rack and stack test systems
