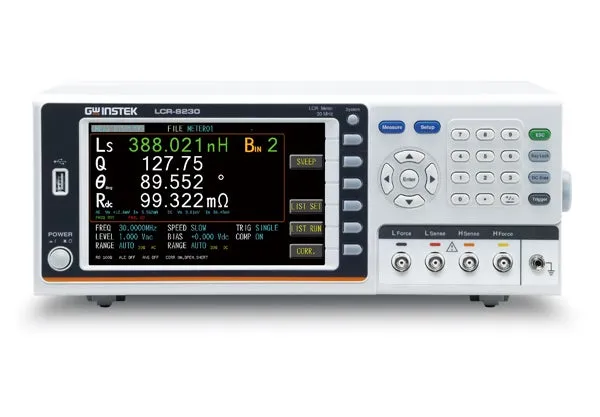

GW Instek LCR-8230 High Frequency LCR Meter
Request a quote
GW Instek LCR-8230 is a high-frequency LCR meter with DC to 30MHz range, 0.08% accuracy, 7-inch color display, and comprehensive measurement capabilities.
Product details
| Model | LCR-8230 |
| Manufacturer | GW Instek |
| Category | LCR Meters |
| Availability | Made to order |
Description
Overview
The GW Instek LCR-8230 is a high-frequency LCR meter from the LCR-8200 series, designed for testing passive components in research and design, engineering, and production. It combines a wide frequency range up to 30MHz with a large 7-inch color display and high measurement accuracy of 0.08%, providing both numerical and graphical measurement results for optimal device characterization.
Key Features
- Wide test frequency range: DC to 30MHz
- 7-inch color LCD display with 800 x 480 resolution
- High measurement accuracy of 0.08%
- Four simultaneous measurement results from 17 selectable parameters
- 15-step list measurement with frequency, voltage, current, DC bias, compensation, and BIN control
- Two-curve sweep measurement mode with graphical display
- Selectable output impedance: 25Ω or 100Ω
- Internal DC bias voltage capability: ±12V
- USB storage for saving measurement data and curves
- Automatic Level Control (ALC) function
- Multiple interface options: RS-232C, USB host/device, LAN, GPIB, Handler
Applications
- Passive component testing in research and development
- Engineering and production quality assurance
- Component characterization and impedance analysis
- Passive component manufacturing verification
Specifications
| High Frequency (range) | 10MHz <= 100MHz |
