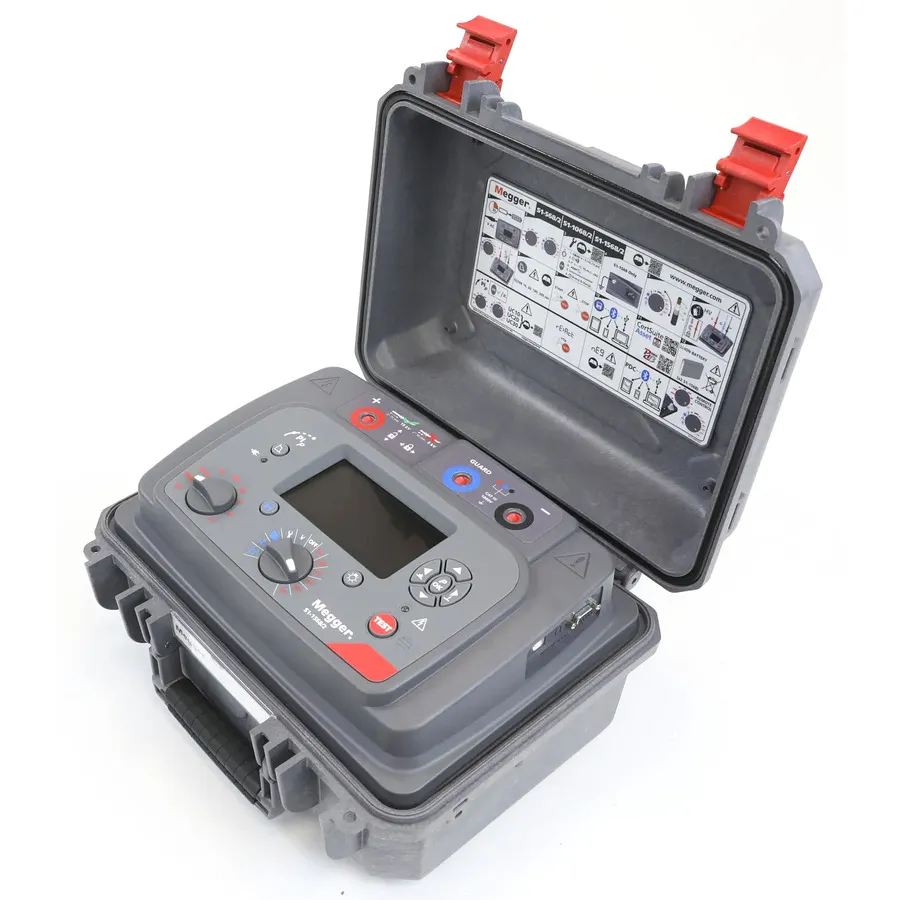

Megger S1-1568/2-US EXPERT 15kV Insulation Tester
Request a quote
Megger S1-1568/2-US measures to 35 TΩ resistance with 8 mA noise rejection, diagnostic testing, remote USB control, and Bluetooth data streaming.
Product details
| Model | S1-1568/2-US EXPERT 15kV |
| Manufacturer | Megger |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Megger S1-1568/2-US EXPERT 15kV is an advanced insulation resistance tester designed for professionals working with high capacitance circuits, such as long cables, or in electrically noisy environments. It combines essential testing capabilities with enhanced diagnostic features, improved noise immunity, and flexible output current control for demanding power distribution applications and high-voltage switchyard environments.
Key Features
- Measures to 35 TΩ resistance
- 8 mA noise rejection with 4 filter options
- Diagnostic and overvoltage tests: PI, DAR, DD, PDC, SV, and ramp test
- RE>Act test mode and PI predictor function (PIP)
- Remote Control (RC) mode via USB cable
- Bluetooth Low Energy for live data streaming and result downloads
- Rapid charge Li-ion battery pack (AC operation available)
- DC and AC voltmeter (30 V to 660 V)
- Large custom color display with backlight
- CertSuite Asset compatible
- Safety rating: CAT IV 1000 V
- Unique dual-case design for enhanced protection
Included Accessories
- 3 m lead set
- Large clips
- Power lead
Specifications
| Alternate Product Number | 1016-118 |
| Series | S1/2 Expert-Series |
| Includes | S1-1568/2, 1 3 m lead set, with large clips with insulation suited to 15 kV use, Power lead |
| IP Rating | P65 (lid closed), IP40 (lid open) |
| Resistance Range | 10k Ohm to 35T Ohm |
| Safety Rating | CAT 4 |
| Test Voltages | 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V, 15000 V |
