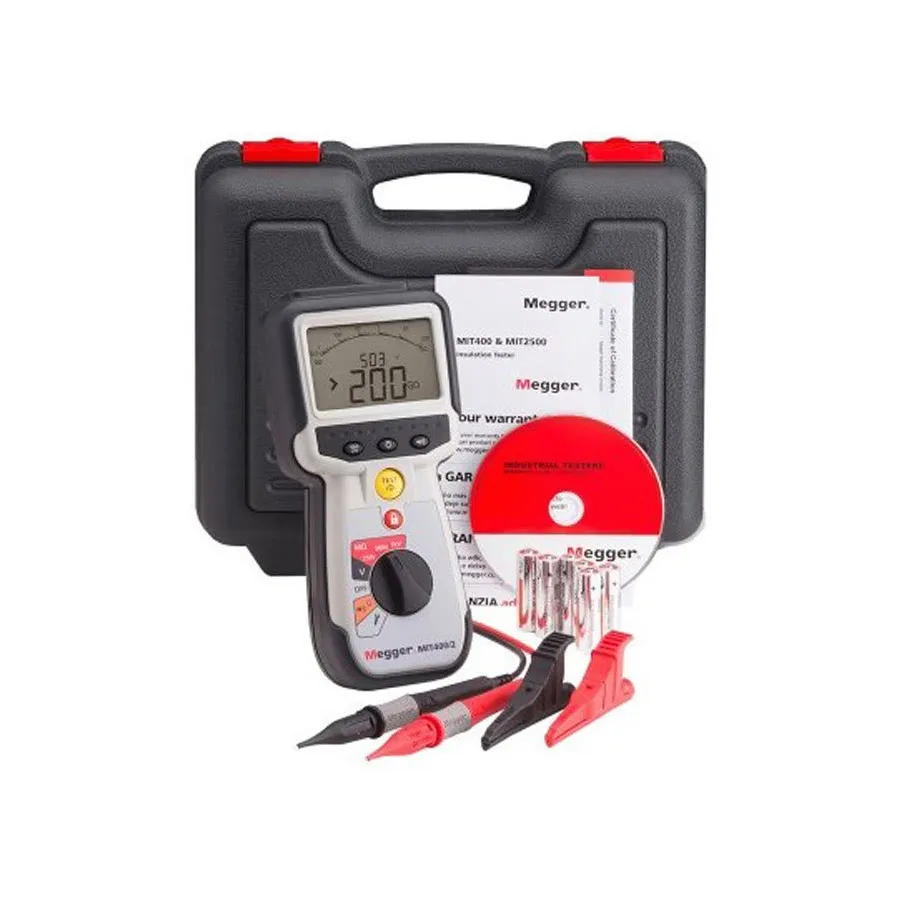

Megger MIT485/2 Insulation and Continuity Tester
Request a quote
Megger MIT485/2 insulation and continuity tester for communications with 50-500V voltages, 100 GΩ range, 3-terminal A-B-E switching, and CAT IV 600V rating.
Product details
| Model | MIT485/2 |
| Manufacturer | Megger |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Megger MIT485/2 is an insulation and continuity tester designed specifically for telecommunications and cable testing applications. It features a three-terminal measurement design allowing simultaneous connection of A, B, and E (Tip, Ring, and Ground/Earth) test leads. The measurement pair can be selected without disconnecting leads, improving efficiency in field work.
Key Features
- Insulation testing up to 500V with range up to 100 GΩ
- Three-terminal A-B-E (Tip-Ring-Ground) connection capability
- Selectable measurement pairs without disconnecting test leads
- Single-range continuity testing from 0.01 Ω to 1 MΩ
- Differential measurement capability for pair testing
- AC/DC voltage measurement up to 600V
- Stabilized insulation test voltage
- Test result storage with Bluetooth data downloading
- Gated access to 500V to prevent accidental exposure
- CAT IV 600V and IP54 weatherproof rating
- Rechargeable battery options for mains and car charging
- Single-range faster continuity testing
Applications
- Telecommunications system testing and maintenance
- Telephone line and cable integrity verification
- Tip-Ring-Ground circuit diagnostics
- Multi-pair cable testing
- Field service and installation commissioning
- Preventive maintenance of communications infrastructure
Specifications
| Series | MIT480 Series |
