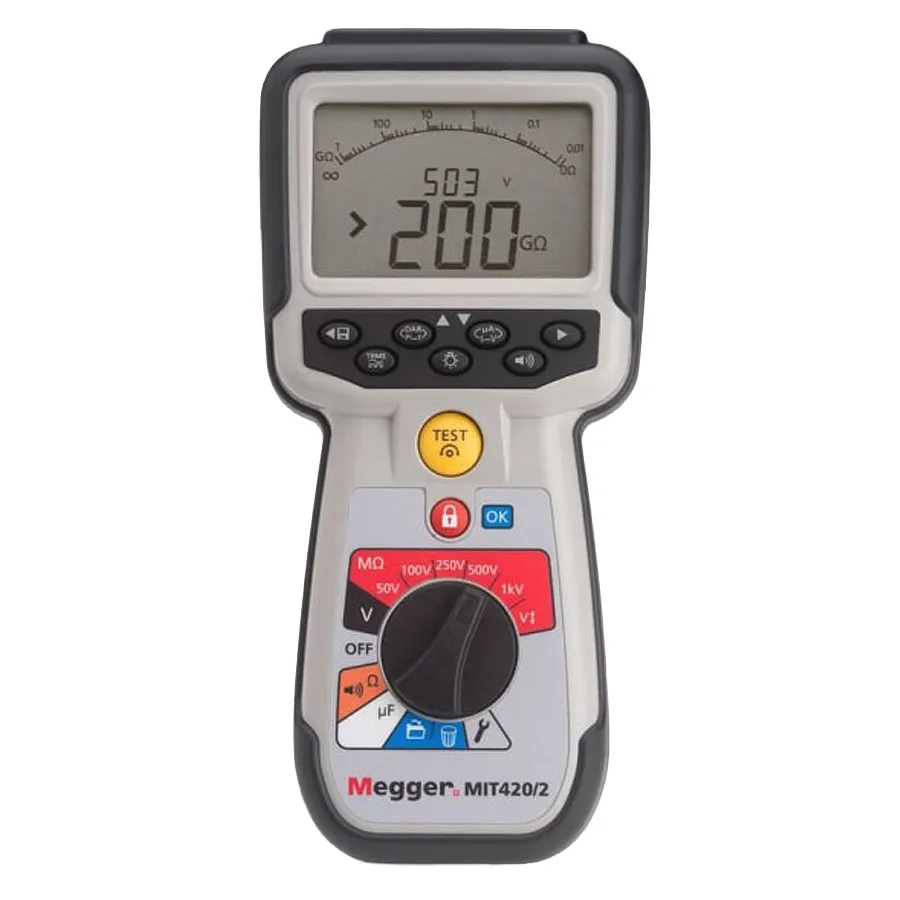

Megger MIT420/2 Insulation and Continuity Tester

Overview

The Megger MIT420/2 is a handheld insulation and continuity tester designed for electrical, industrial, automotive, and avionics applications. It provides selectable test voltages of 50V, 100V, 250V, 500V, and 1000V, enabling insulation resistance measurements up to 200 GΩ. Advanced diagnostic functions include Polarization Index (PI), Dielectric Absorption Ratio (DAR), and timed insulation tests with on-board memory for result storage.

Key Features

• Selectable test voltages: 50V, 100V, 250V, 500V, 1000V
• Insulation resistance range up to 200 GΩ
• Polarization Index (PI) and Dielectric Absorption Ratio (DAR) diagnostics
• Continuity testing from 0.01 Ω to 1 MΩ with buzzer indication
• AC/DC voltage measurement up to 600V
• Frequency measurement from 15 to 400 Hz
• Capacitance measurement from 0.1 nF to 10 µF
• CAT IV 600V and IP54 weatherproof rating
• Live circuit detection and protection
• Auto reverse polarity (configurable)
• Switched probe for one-handed operation
• PASS/FAIL limit alarms

Applications

• Industrial electrical maintenance and motor condition assessment
• Wind and solar energy system testing (generators, cabling, combiner boxes)
• Automotive and avionics electrical system testing
• Detection of pinched wires and leakage issues in critical systems
• Cable and insulation quality verification

Included Accessories

• Silicone leads (red/black)
• SP5 remote switch probe
• 6 x AA alkaline batteries
• Carry case
• Calibration certificate
