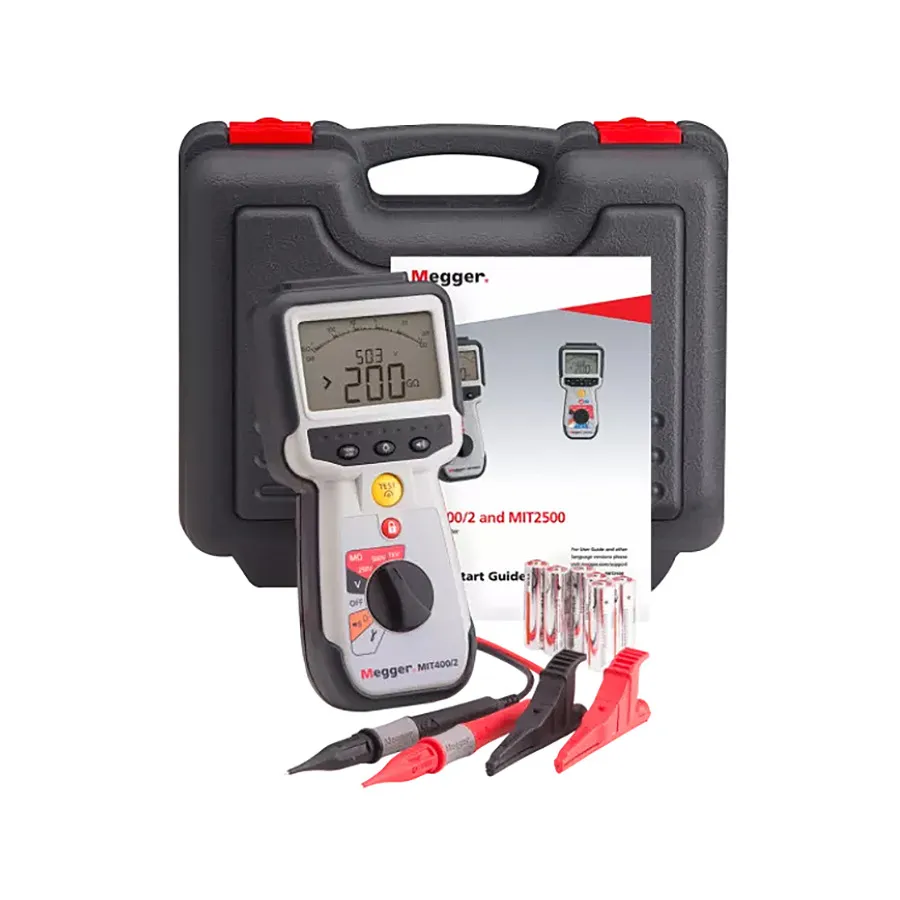

Megger MIT410/2 Insulation/Continuity Tester

Overview

The Megger MIT410/2 is a handheld insulation and continuity tester designed for electrical, industrial, automotive, and avionics applications. As part of the MIT400/2 series, it offers selectable test voltages from 50V to 1000V for insulation resistance measurements up to 200 gigaohms, with advanced diagnostic functions including Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for monitoring motor health and equipment condition.

Key Features

• Selectable insulation test voltage: 50V, 100V, 250V, 500V, and 1000V with stabilized output
• Insulation measurement range up to 200 GΩ
• Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions
• Continuity testing from 0.01Ω to 1MΩ with auto-ranging and fast contact detection
• AC/DC voltage measurement up to 600V TRMS
• Frequency measurement 15-400 Hz
• Live circuit detection and protection
• CAT IV 600V and IP54 weatherproof rating
• Pass/Fail limit alarms with audible continuity buzzer
• New rugged case design with optional magnetic hanging strap

Applications

• Industrial maintenance and preventive equipment monitoring
• Electrical system testing and troubleshooting
• Motor performance assessment and trend analysis
• Wind and solar system component testing (generators, cabling, combiner boxes)
• Automotive and avionics electrical systems

Included Accessories

• Silicone leads (red and black)
• SP5 remote switch probe
• 6 AA Alkaline batteries
• Carry case
• Calibration certificate
