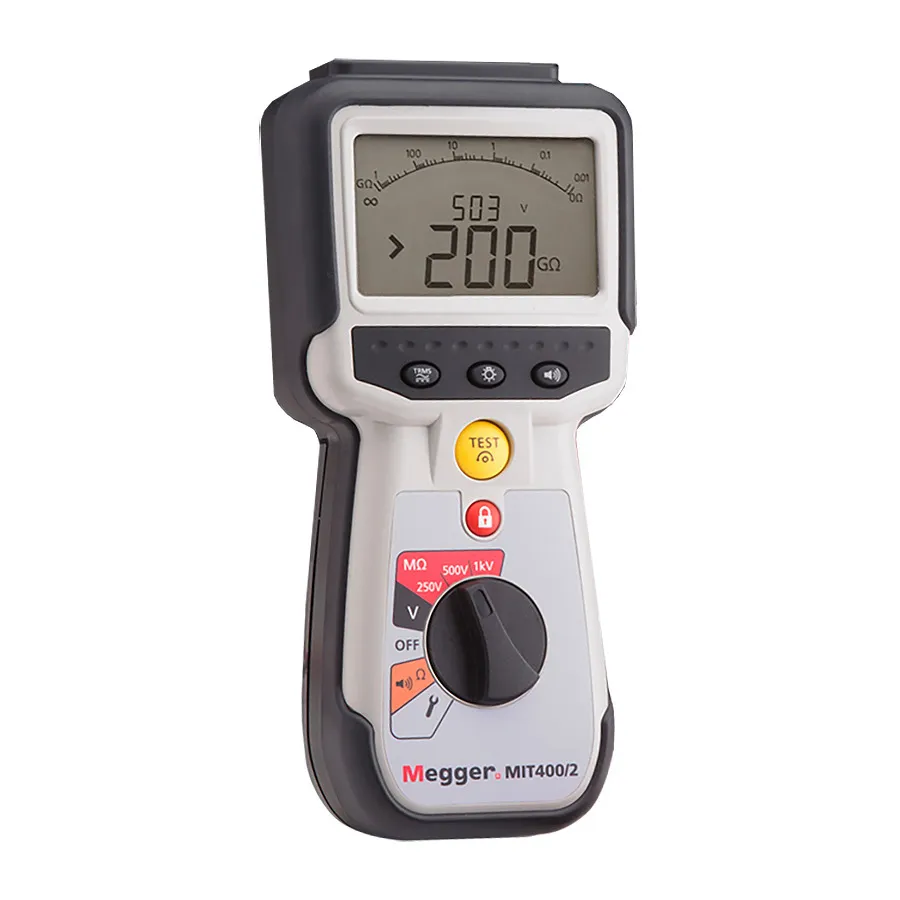

Megger MIT400/2 Insulation and Continuity Tester

Overview

The Megger MIT400/2 is a professional-grade handheld insulation and continuity tester designed for electrical, industrial, automotive, and avionics applications. Part of the MIT400/2 series, this tester offers selectable test voltages and can measure insulation resistance up to 200GΩ. It features live circuit detection, stabilized test voltage, and a weatherproof design rated IP54 with CAT IV 600V safety certification.

Key Features

• Selectable insulation test voltages: 250V, 500V, and 1000V with stabilized output
• Insulation resistance measuring capability up to 200GΩ
• Single-range continuity testing from 0.01Ω to 1MΩ with automatic detection
• AC and DC voltage measurement capability up to 600V Trms
• Live circuit detection and protection against accidental contact
• Fast buzzer function for continuity confirmation
• CAT IV 600V and IP54 weatherproof rating
• Redesigned rugged case with optional magnetic hanging strap
• Six-cell battery compartment with dedicated fuse access
• Over-molded construction for enhanced durability
• Runs on standard AA or rechargeable NiMH batteries

Applications

• Electrical and industrial equipment testing and maintenance
• Installation Category III and higher applications
• Renewable energy systems including wind and solar installations
• Detection of pinched wires and leakage issues in cabling systems
• Automotive and avionics electrical system verification
• Production and manufacturing quality assurance testing

Included Accessories

• Silicone test leads (red/black)
• Batteries: 6 x AA Alkaline
• Protective carry case
• Calibration certificate
