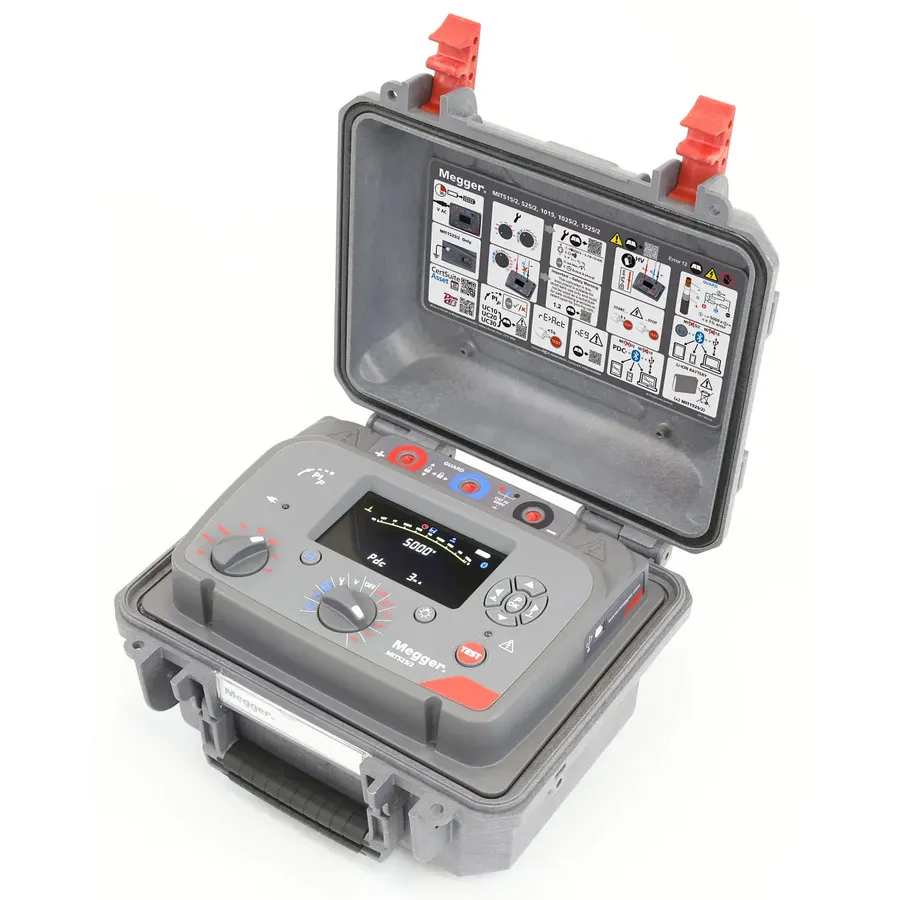

Megger MIT1525/2-US Insulation Resistance Tester
Megger MIT1525/2-US is an advanced 15 kV insulation resistance tester with Bluetooth connectivity, data recording, RE>Act mode, and comprehensive diagnostic testing for power systems.
Product details
| Model | MIT1525/2-US ADVANCED 15kV |
| Manufacturer | Megger |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Megger MIT1525/2-US Advanced model is a 15 kV insulation resistance tester engineered for demanding electrical testing in power distribution and industrial environments. It delivers exceptional noise immunity and test performance with advanced safety features. The instrument supports recording of test results and data transfer to software or mobile apps via USB or Bluetooth Low Energy, enabling efficient asset management, compliance documentation, and predictive maintenance programs. The custom color display offers excellent visibility even in extreme conditions.
Key Features
- 15 kV maximum test voltage with selectable 1000 V, 2500 V, 5000 V, 10000 V, and user-defined voltages
- User-selectable maximum current: 1 mA, 3 mA, or 6 mA
- 3 mA noise rejection for power distribution environments
- RE>Act test mode for enhanced accuracy and safety
- PI predictor function (PIp) for faster polarization index testing
- Supports diagnostic tests: PI, DAR, DD, PDC, SV, and ramp test
- Bluetooth Low Energy for live data streaming and result downloading
- Advanced memory with time and date stamping
- DC and AC voltmeter (30 V to 660 V)
- Custom color display with backlight for extreme visibility
- Rapid charge Li-ion battery
- Unique dual-case design for additional user protection
- Safety rating: CAT IV 600 V and CAT IV 1000 V
Applications
- Manufacturing quality inspection and safety checking
- Pre-shipment benchmark measurements for electrical equipment
- On-site inspection with baseline comparisons
- Post-installation asset verification
- Maintenance testing and predictive maintenance programs
- Post-repair verification before equipment startup
- Production line testing and acceptance
- Construction site electrical inspection
- Industrial facility equipment testing
- Testing cables, power transformers, and measurement transformers
Included Accessories
- MIT1525/2-US Advanced Insulation Resistance Tester
- Power lead
- USB cable
- Test lead set 3 kV, 3 x 3 m with medium clips
Specifications
| Alternate Product Number | 1016-101 |
| Series | MIT5/2 Advanced-Series |
| Includes | MIT1525/2, Power Lead, Screened USB Cable with filters, Lead set HV 3 X 3 m, with large 15 kV insulated clips |
| IP Rating | P65 (lid closed), IP40 (lid open) |
| Resistance Range | 10k Ohm to 30T Ohm |
| Safety Rating | CAT 4 |
| Test Voltages | 1000 V, 2500 V, 5000 V, 10000 V, 15000 V, User defined test voltage |
