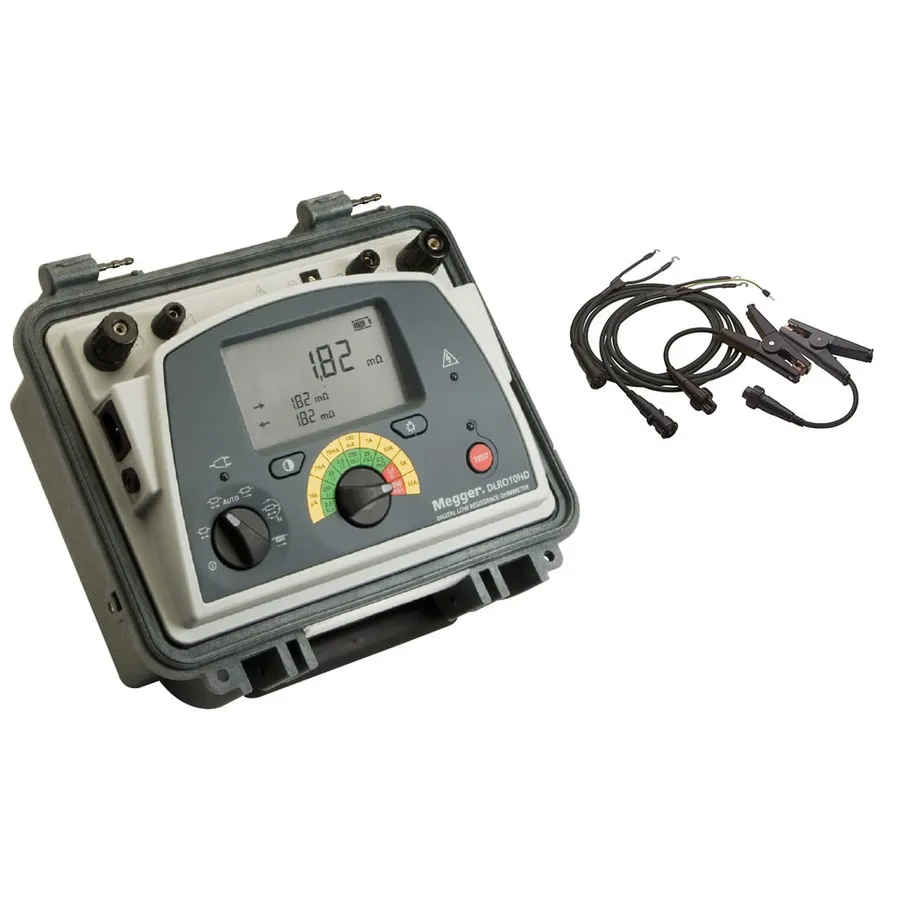

Megger DLRO10HD with KC1-TL3-C Kelvin Clips

Overview

Megger's DLRO10HD with KC1-TL3-C Kelvin clips is a heavy-duty low-resistance ohmmeter designed for precision testing in laboratory and field environments. Capable of delivering 10 A into measurements up to 250 megohm and 1 A into measurements up to 2.5 ohm with 60-second test duration, it minimizes cool-down time between tests. The unit operates from either rechargeable battery or mains power, making it suitable for continuous repetitive testing and portable field deployment. High input protection to 600 V prevents damage from inadvertent connection to line or UPS voltage.

The supplied KC1-TL3-C Kelvin clips (3 m) enable four-wire measurement technique, providing superior accuracy for low-resistance measurements. Applications range from railways and aircraft maintenance to component resistance testing across diverse industries.

Key Features

• 10 A output capability with adjustable high or low output for condition diagnosis
• 1 A output for precision measurements
• Four-wire Kelvin clip measurement with KC1-TL3-C leads
• Rechargeable 6 V, 7 Ah sealed lead acid battery
• Mains powered operation (100–240 V, 50/60 Hz, 90 VA)
• Battery and mains powered flexibility
• High input protection to 600 V
• IP65 rating (lid closed), IP54 rating (battery operation)
• 5-digit main display plus 2 x 5-digit secondary displays
• LED backlight
• 8-hour battery charge time
• Temperature coefficient less than 0.01% per °C (5–40°C)
• Rotary switch with five test modes including auto start on connection
• Maximum safe altitude: 2000 m (6562 ft)
• Heavy-duty protective case

Applications

• Component resistance testing with precision Kelvin technique
• Switchgear and cable joint verification
• Inductive load testing with minimal cool-down
• Railway and aircraft maintenance
• Field and laboratory measurement

Included Accessories

• KC1 Kelvin clip leads, 3 m
