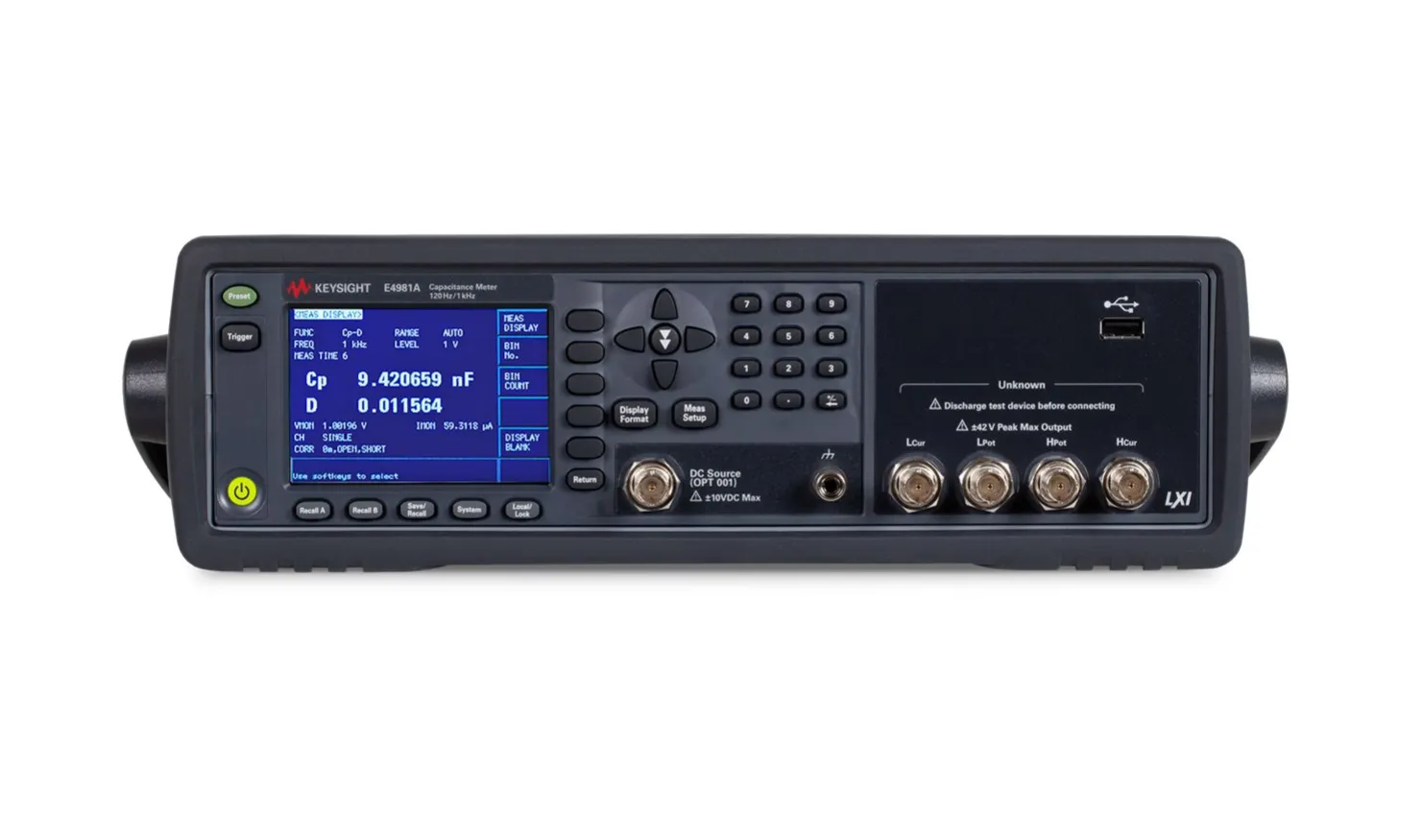

Keysight E4981A Capacitance Meter
Request a quote
Keysight E4981A is a high-speed capacitance meter for ceramic capacitor testing with 0.07% accuracy and 2.3 ms measurement time at 1 MHz.
Product details
| Model | E4981A |
| Manufacturer | Keysight |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Keysight E4981A is a high-speed capacitance meter designed for ceramic capacitor manufacturing and testing. It provides fast measurement speeds and outstanding accuracy, making it the standard solution for production line ceramic capacitor testing.
Key Features
- Fast measurement speed – 2.3 ms at 1 MHz, 3.0 ms at 1 kHz, 11.0 ms at 120 Hz
- High accuracy – 0.07% C, D accuracy of 0.0005
- Wide capacitance measurement range from 0 F to 2.0 mF
- 9-bin sorting capability for component classification
- 256 multi-channel correction for production consistency
- Compatible with 4268A and 4288A via SCPI commands and Handler/Scanner interfaces
- Test signal level compensation for high-value ceramic capacitor testing
- Versatile PC connectivity with LAN, USB, and GPIB interfaces
Applications
- Ceramic capacitor manufacturing and quality testing
- High-volume multi-layer ceramic capacitor production
- Component sorting and bin classification in production lines
Specifications
| High Frequency (range) | 100kHz <= 1MHz |
