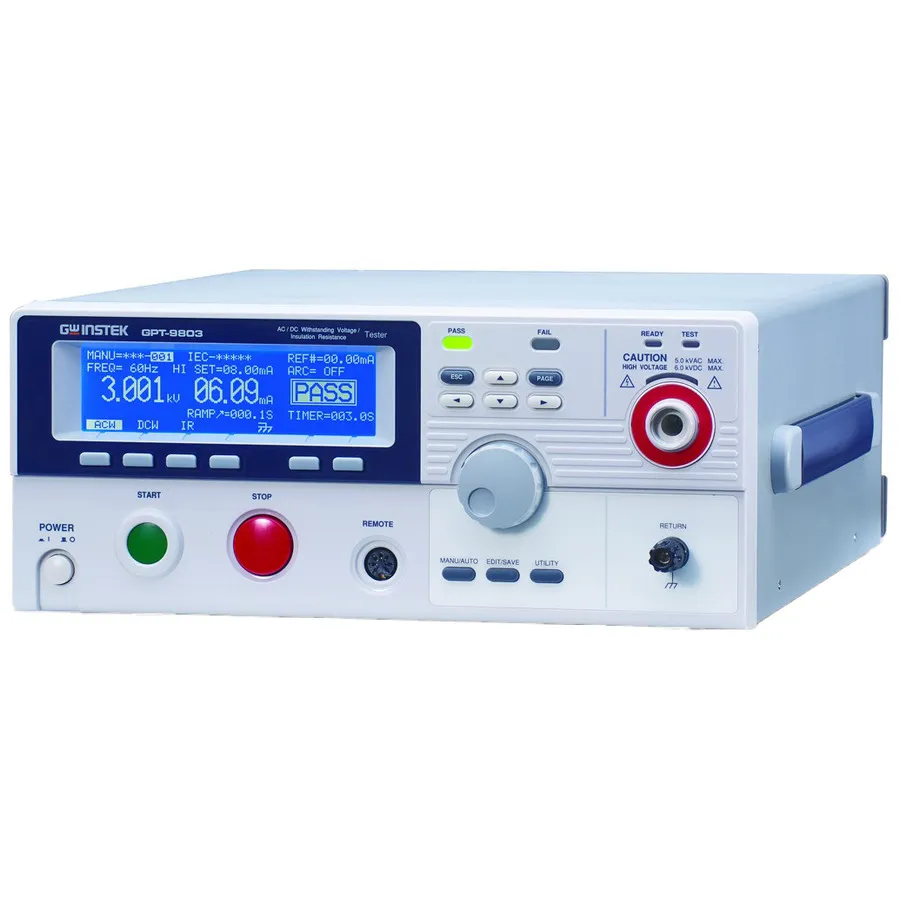

GW Instek GPT-9803 Electrical Safety Tester

Overview

The GW Instek GPT-9803 is a 200 VA AC electrical safety tester designed for comprehensive safety compliance testing of electronic products and components. As a three-function model in the GPT-9800 Series, it performs AC withstanding, DC withstanding, and insulation resistance tests with high-efficiency PWM amplification and stable voltage output.

Key Features

• 200 VA AC test capacity
• AC withstanding voltage testing (5 kV AC, 40 mA)
• DC withstanding voltage testing (6 kV DC, 10 mA)
• Insulation Resistance testing (DC 50V to 1000V)
• 240x64 Ice Blue Dot Matrix LCD display
• Manual and Auto Mode operation
• Function Key for quick selection
• High intensity flash for status and caution indication
• Safety Interlock function
• Zero Crossing Turn-on Operation
• Controllable Ramp-up Time
• True RMS Current Measurement with high resolution (1 µA)
• High voltage resolution (2V for setting)
• PWM amplifier for enhanced power efficiency and reliable testing
• 100 memory blocks for test condition settings
• Remote terminal on front panel for start and stop control
• Interfaces: RS-232C, USB device, Signal I/O, and optional GPIB

Applications

• Comprehensive AC and DC electrical safety compliance testing
• Three-function withstanding voltage and insulation resistance testing
• IEC, EN, UL, CSA, GB, JIS standard compliance verification
• Complete product safety validation in manufacturing

Included Accessories

• Quick Start Guide
• User's manual on CD
• Power cord
• Interlock key
• Remote terminal male plug
• GHT-114 test lead
