Fluke 1672 US Multifunctional Installation Tester

Overview

The Fluke 1672 US Multifunctional Installation Tester is a comprehensive electrical safety testing instrument for installation technicians and contractors. It combines insulation resistance, continuity, impedance, and RCD testing in a single portable device with ergonomic design, intuitive interface, and integrated data management.

Key Features

• Test voltages: 100V, 250V, 500V, and 1000V
• Insulation resistance measurement at L-N, L-PE, N-PE inputs with 1000MΩ range at 1000V
• Continuity testing with 0.01Ω resolution at 200mA
• Loop and line impedance measurement with 0.01Ω resolution
• Automatic pass/fail results for quick interpretation
• Wiring polarity checker detects broken PE and N wires
• AC and DC voltage measurement with frequency detection
• Motor winding continuity test at 10mA
• Prospective Earth Fault Current (PEFC) and Short-Circuit Current (PSC) testing
• RCD trip time and current measurement with ramp test
• Voltage drop measurement
• USB-C interface for data transfer and charging
• Memory storage for test results

Applications

• Electrical installation commissioning and safety compliance verification
• Periodic electrical system inspection and maintenance
• Residential, commercial, and industrial electrical testing
• RCD and wiring integrity assessment

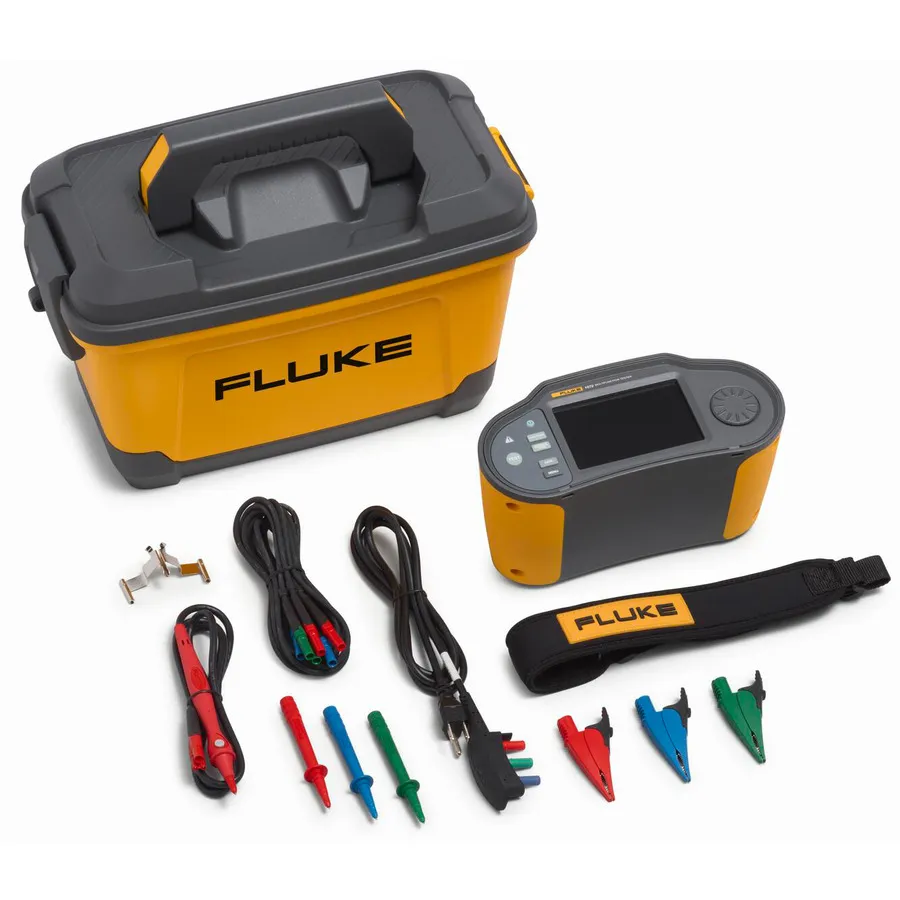

Included Accessories

• Heavy duty mains cord with single input connector
• Hard carrying case
• USB-C power adapter
• Remote control probe
• Test leads and probes
• Alligator clips
• Zero adapter
• Hanging strap
• Li-Ion rechargeable battery
