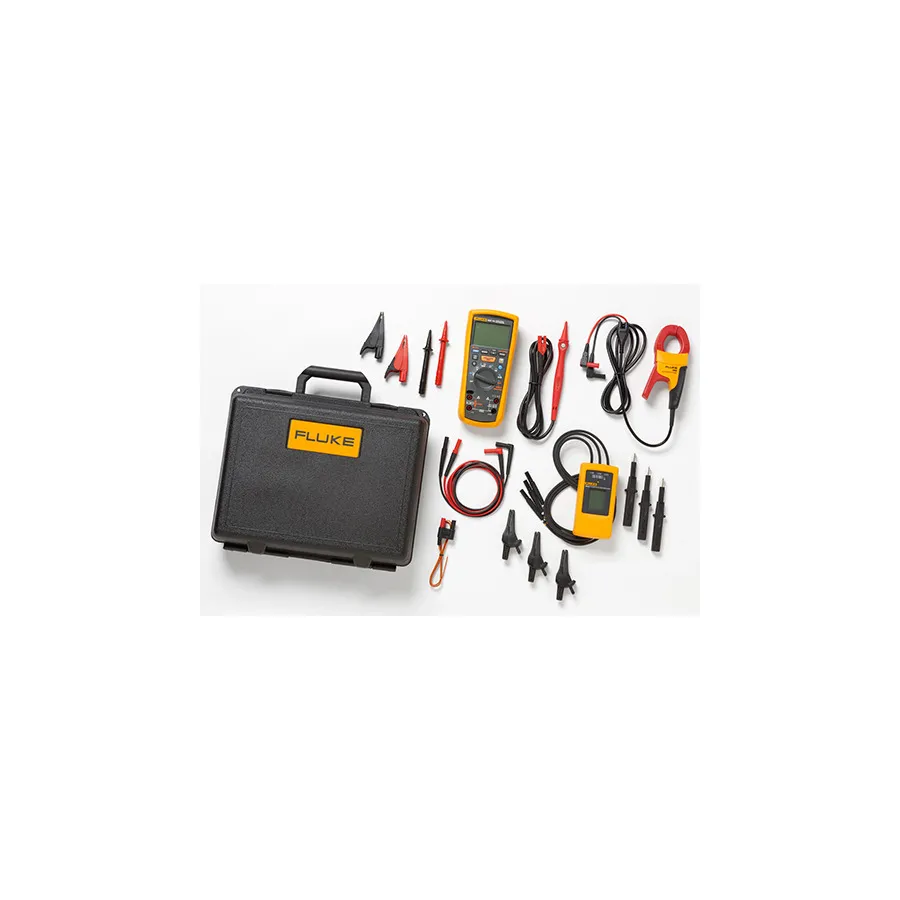

Fluke FLUKE-1587/MDT FC Motor and Drive Diagnostic Kit

Overview

The Fluke FLUKE-1587/MDT FC is a comprehensive motor and drive troubleshooting kit designed for maintenance and field service technicians. This complete system integrates three essential instruments: the Fluke 1587 FC insulation multimeter, Fluke 9040 3-phase rotation indicator, and Fluke i400 AC current clamp. Together, these tools provide maximum versatility for preventative maintenance and rapid diagnostics on motors, cables, switchgear, and variable frequency drive systems.

Key Features

• Fluke 1587 FC Insulation Multimeter: Performs insulation tests from 0.01 MΩ to 2 GΩ with selectable test voltages (50 V, 100 V, 250 V, 500 V, 1000 V); includes filter for variable frequency drive measurements; backlit display; CAT III 1000 V / CAT IV 600 V rated
• Fluke 9040 Phase Rotation Indicator: Measures 3-phase voltage from 40 to 700 V; identifies phase rotation direction; clear LCD display; battery-free operation
• Fluke i400 AC Current Clamp: Measures up to 400 A AC without breaking the circuit; accommodates conductors up to 32 mm diameter; 1 mA/Amp output; CAT IV 600 V / CAT III 1000 V rated
• Fluke Connect app integration enables PI/DAR timed ratio testing, TrendIt graphs, memory storage, and automatic temperature compensation

Applications

• Motor preventative maintenance and troubleshooting
• Insulation testing on cables and switchgear
• 3-phase system voltage and rotation verification
• Variable frequency drive diagnostics
• Non-invasive current measurement in motor circuits

Included Accessories

• Fluke 1587 FC Insulation Multimeter with remote probe, test leads, alligator clips, K-type thermocouple, and hard case
• Fluke i400 AC Current Clamp
• Fluke 9040 Phase Rotation Indicator
