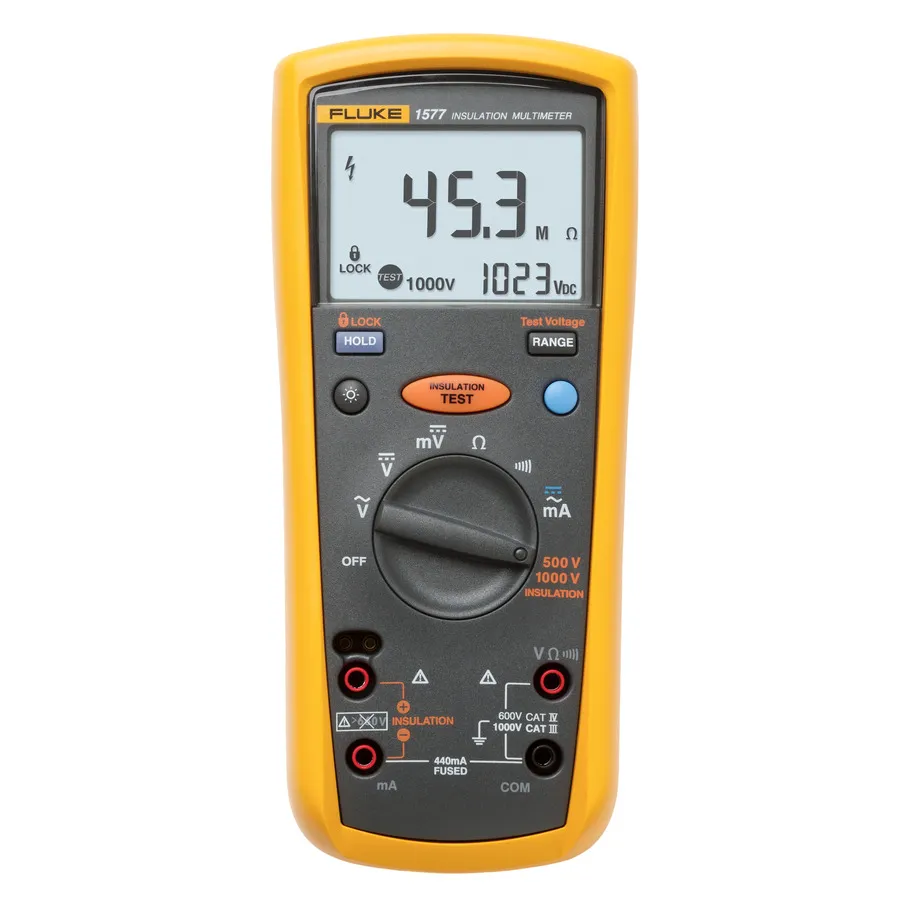

Fluke FLUKE-1577 Insulation Multimeter
Request a quote
Fluke 1577 insulation multimeter combines digital insulation tester and true RMS multimeter, measuring 0.1–600 MΩ insulation at 500V or 1000V.
Product details
| Model | FLUKE-1577 |
| Manufacturer | Fluke |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Fluke 1577 is a dual-function device that combines an insulation tester with a comprehensive true RMS digital multimeter in a single, compact handheld unit. It provides maximum flexibility for troubleshooting and preventive maintenance tasks, eliminating the need for multiple tools when working on motors, generators, cables, or switchgear.
Key Features
- Insulation test range: 0.1 to 600 Megohm
- Insulation test voltages: 500V and 1000V
- True RMS AC/DC voltage and milliamp measurements
- Live circuit detection prevents insulation testing when voltage >30V is detected
- Auto discharge of capacitive voltage
- Large backlit display
- Auto power off to save battery
- CAT III 1000V, CAT IV 600V safety rating
- 3-year warranty
Applications
- Motor and generator insulation testing
- Cable and switchgear diagnostics
- Preventive maintenance testing
- Field troubleshooting
Included Accessories
- Remote probe
- Test leads
- Alligator clips
- Hard case
- Four AA alkaline batteries
- Quick reference guide
- CD ROM with manual
