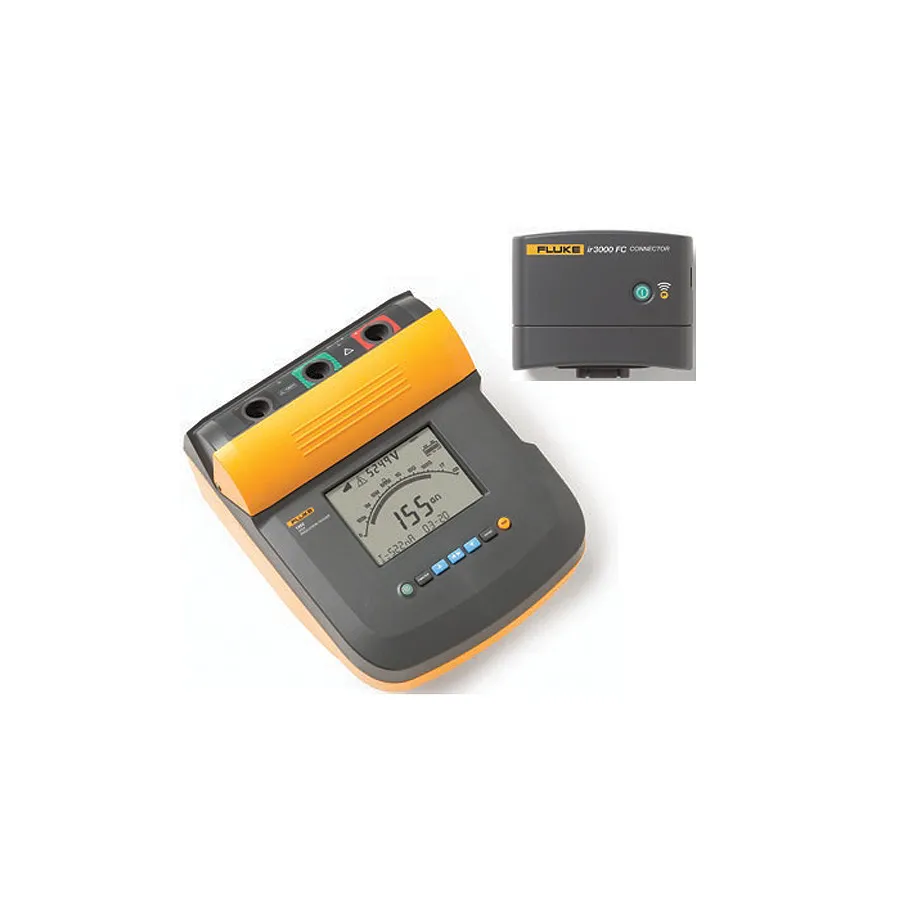

Fluke FLUKE-1555 FC Insulation Tester
Request a quote
Fluke FLUKE-1555 FC is a 10kV insulation tester with Fluke Connect wireless capability, enabling remote testing and real-time data collection via smartphone.
Product details
| Model | FLUKE-1555 FC |
| Manufacturer | Fluke |
| Category | Insulation Resistance & Megohmmeters |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-1555 FC combines all the capabilities of the standard 1555 with integrated Fluke Connect wireless technology. This allows technicians to perform insulation tests remotely and stay connected to their team using the Fluke Connect mobile app. Real-time trending displays live graphs on your smartphone, eliminating the need to interpret fluctuating values on the instrument display.
Key Features
- Maximum test voltage up to 10 kV with selectable 50V and 100V steps
- Automatic DAR and PI calculation
- Guard system eliminates surface leakage current effects
- Resistance measurements up to 2 Teraohms
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Built-in Fluke Connect wireless connectivity
- Memory storage for up to 99 test results
- CAT III 1000V, CAT IV 600V safety rating
- Battery life exceeds 750 tests per charge
- 3-year warranty
Fluke Connect Wireless Capability
- Real-time data streaming to Android and iOS devices
- Live graphing of measurement trends
- Remote data collection and sharing with team members
- Customizable report generation with company branding
Applications
- Remote insulation testing in hazardous areas
- Collaborative field diagnostics with remote team support
- Equipment commissioning and troubleshooting
- Preventative maintenance with real-time documentation
Specifications
| Maximum Test Voltage | 10 kV |
| Test Voltage Steps | 50V steps from 250V to 1000V, 100V steps above 1000V |
| Maximum Resistance | 2 Teraohms |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Memory Storage | 99 locations |
| Wireless Connectivity | Fluke Connect (Android & iOS) |
| Battery Life | 750+ tests per charge |
| Warranty | 3 years |
